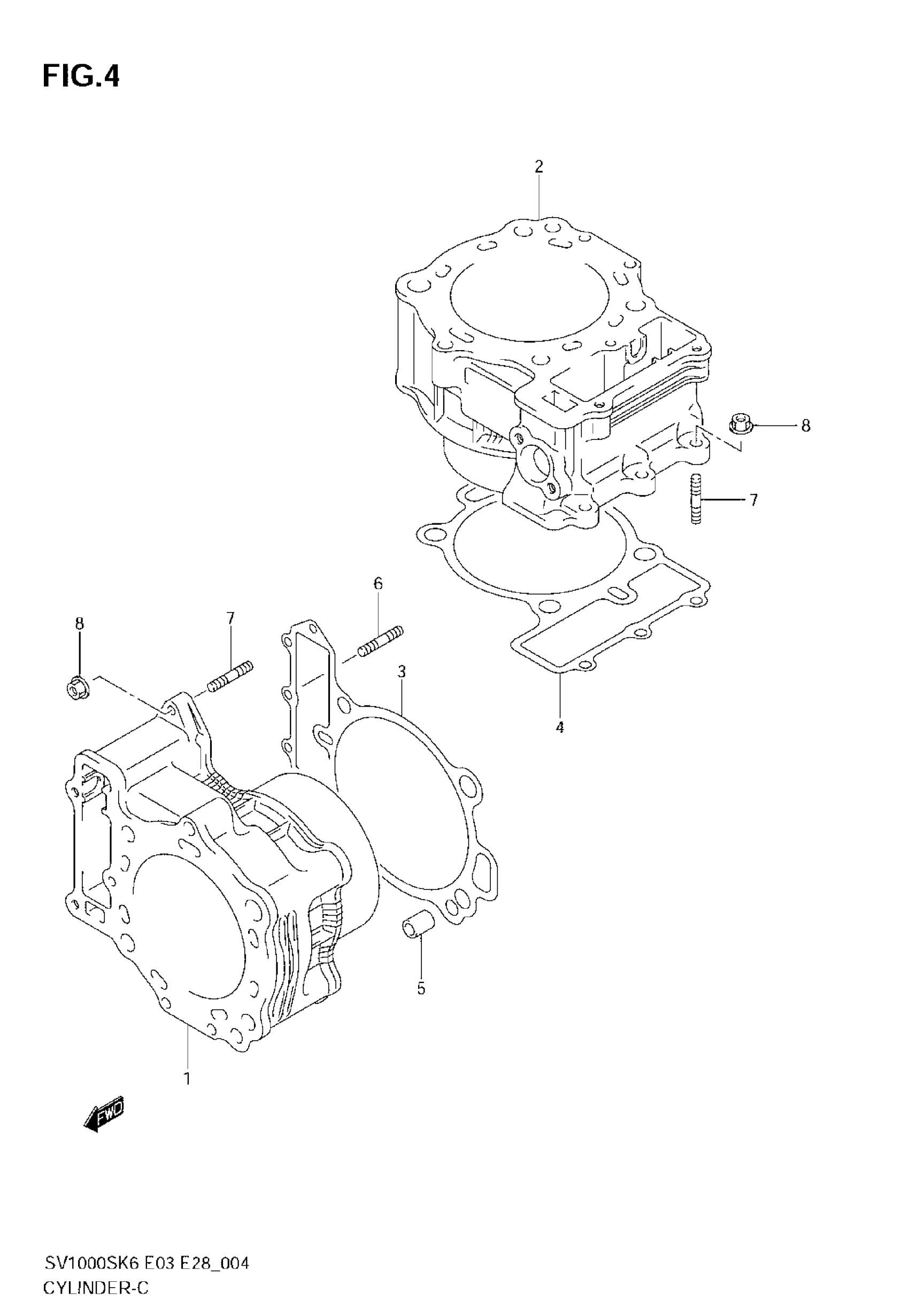

Suzuki SV1000 (2007) CYLINDER Diagram

#

Description

Price

1

CYLINDER, FRONT

11211-06G00-0F0

Unavailable

2

CYLINDER, REAR

11221-06G00-0F0

Unavailable

3

GASKET, CYLINDER FRONT

11241-02F01

$25.23

4

GASKET, CYLINDER REAR

11242-02F01

$25.35

5

PIN

04211-13189

$2.19

6

STUD BOLT

09108-06118

Unavailable

7

STUD BOLT This part replaces 01421-06203.

01421-0620A

$1.91

8

NUT This part replaces 08316-10063.

08316-1006B

$2.50
