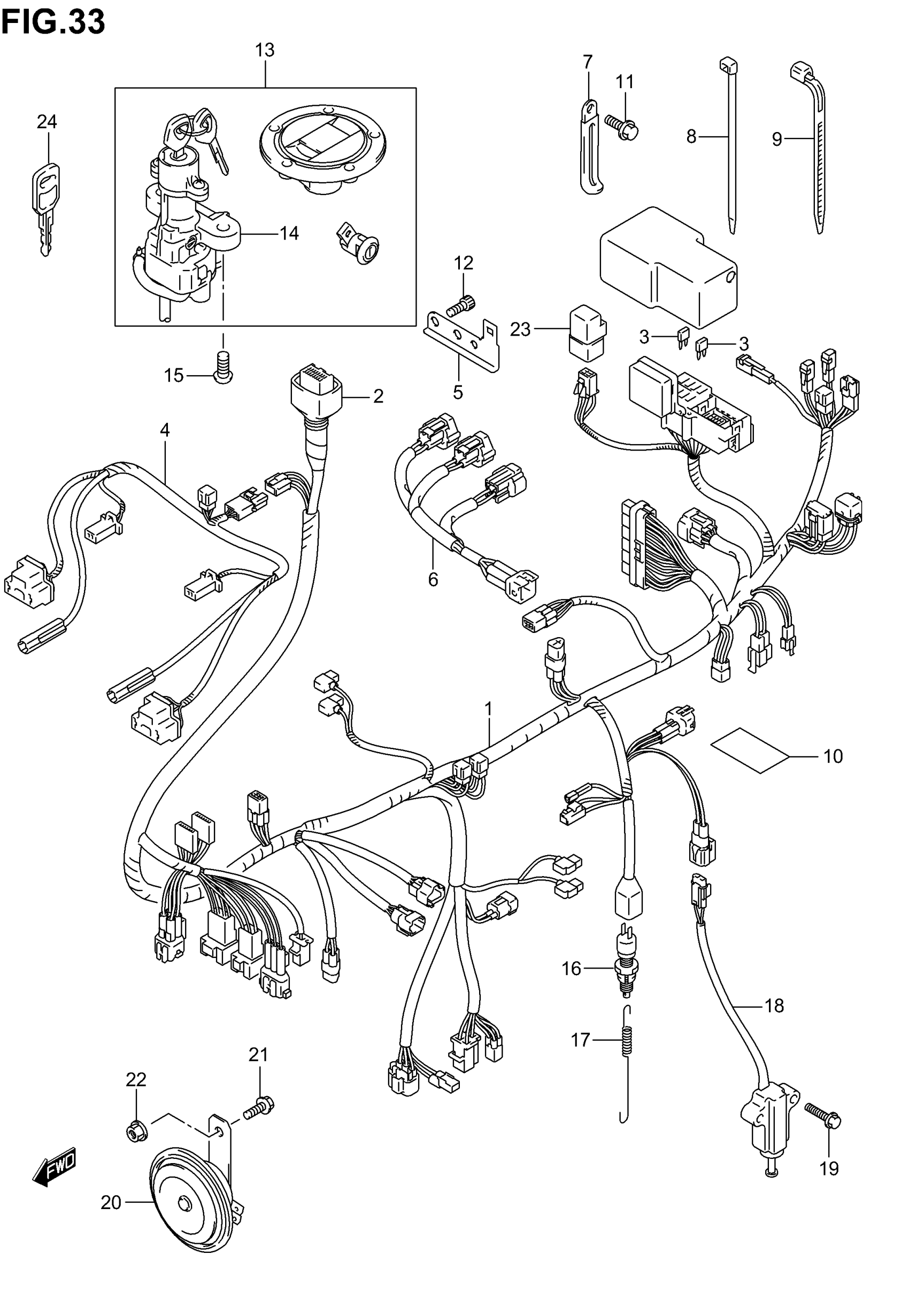

Suzuki SV1000 (2005) WIRING HARNESS (SV1000SK3/SK4/SK5) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K3 This part replaces 36610-16G30.

36610-16GV3

Unavailable

1

HARNESS, WIRING NO.1 | MODEL K4

36610-16GF0

Unavailable

1

HARNESS, WIRING NO.1 | MODEL K5; Includes Item(s) 2 - 3

36610-16GM0

Unavailable

2

CAP

36618-33E00

$8.77

3

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

HARNESS,WIRING This part replaces 36620-16G10.

36620-16G11

$161.08

5

HOLDER, COUPLER

36687-16G00

Unavailable

6

WIRE, INJECTOR LEAD

36859-16G00

Unavailable

7

CLAMP (L:45)

09404-06429

$1.83

8

CLAMP (L:145)

09407-14407

$3.57

9

CLAMP (L:95)

09407-11401

$2.63

9

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:165)

09407-18402

$2.19

10

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

11

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

12

BOLT, NO.3 This part replaces 07130-06103.

07130-0610B

$3.21

13

LOCK SET | MODEL K3/K4 This part replaces 37000-16840.

37000-16844

$386.02

13

LOCK SET | MODEL K5 This part replaces 37000-16820.

37000-16844

$386.02

13

LOCK SET | MODEL K3/K4 E33 This part replaces 37000-16850.

37000-16852

$409.95

13

LOCK SET | MODEL K5 E33; Includes Item(s) 14 - 14 This part replaces 37000-16830.

37000-16852

$409.95

14

LOCK ASSY,STEER | MODEL K3/K4 This part replaces 37100-16G00.

37100-16G02

$188.90

14

LOCK ASSY,STEER | MODEL K5 This part replaces 37100-16G20.

37100-16G02

$188.90

15

SCREW (8X20)

09139-08016

$3.37

16

SWITCH ASSY, STOP LAMP | MODEL K3

37740-24A00

$18.20

16

SWITCH ASSY, STOP LAMP | MODEL K4/K5

37740-45D00

$18.27

17

SPRING, STOP LAMP | MODEL K3

09443-06005

$3.37

17

SPRING, STOP LAMP | MODEL K4/K5

09443-06016

$3.30

18

SWITCH ASSY,SID | MODEL K3/K4 This part replaces 37840-26X50.

37840-26X52

$74.31

18

SWITCH ASSY,SID | MODEL K5 This part replaces 37840-16G00.

37840-16G01

$88.27

19

BOLT (6X25) | MODEL K3/K4

09103-06211

$3.33

19

BOLT | MODEL K5

01550-06257

$2.30

20

HORN ASSY This part replaces 38500-16G00.

38500-16G01

$87.70

21

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

22

NUT This part replaces 08316-10083.

08316-1008B

$2.66

23

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

24

KEY, BLANK | OPT

37146-33E00

$21.21
