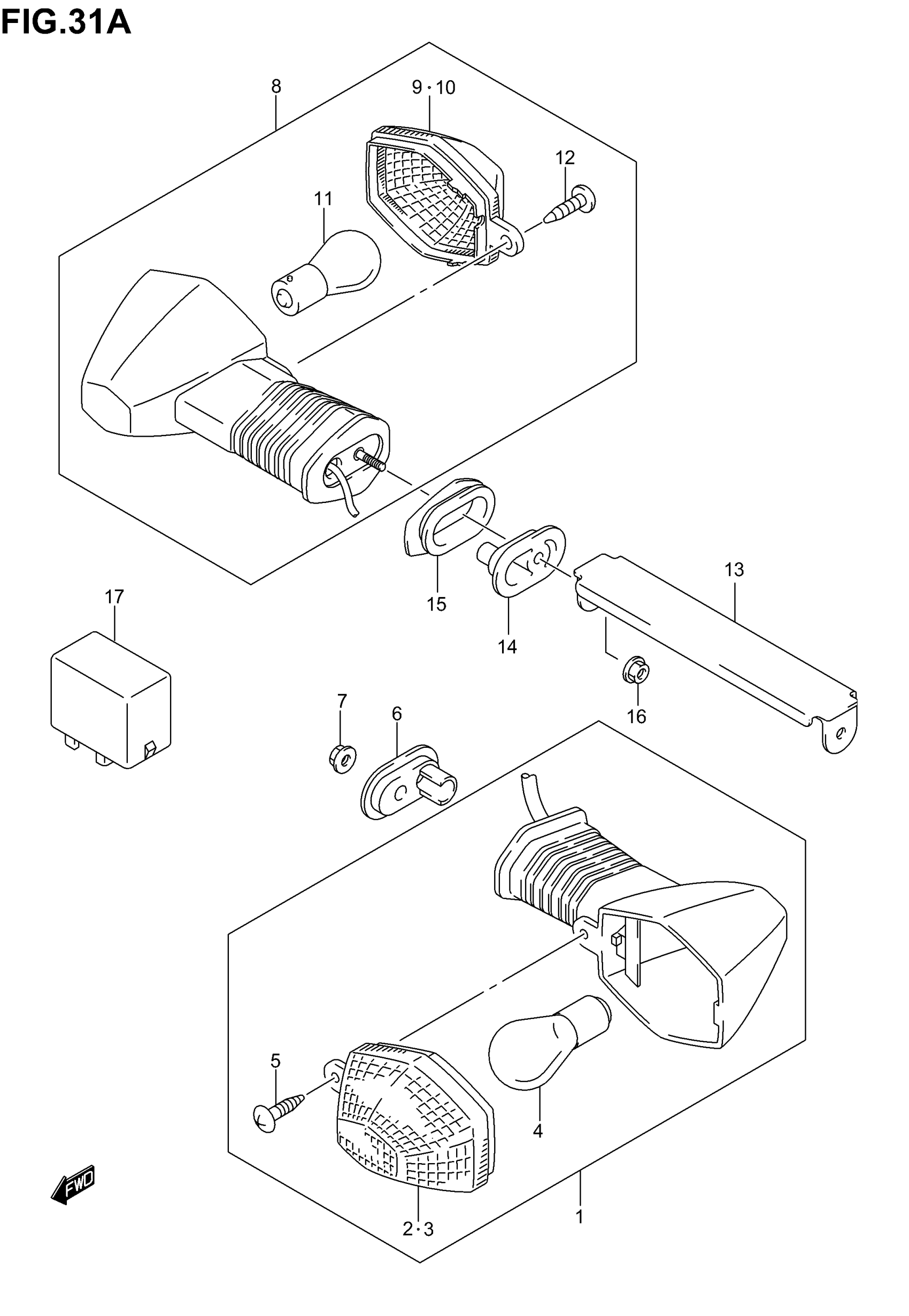

Suzuki SV1000 (2005) TURNSIGNAL LAMP (SV1000K3) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN, RH

35601-29F60

Unavailable

1

LAMP ASSY, FRONT TURN, LH | Includes Item(s) 2 - 5

35602-29F60

Unavailable

2

LENS, RH

35612-31F30

$13.90

3

LENS, LH

35632-31F30

$14.37

4

BULB (12V,21W)

09471-12045

$3.27

5

SCREW This part replaces 03242-04163.

03242-0416B

$2.93

6

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.40

7

NUT This part replaces 08316-10053.

08316-1005A

$2.19

8

LAMP ASSY, REAR TURN, RH

35603-16GC0

$94.85

8

LAMP ASSY, REAR TURN, LH | Includes Item(s) 9 - 12

35604-16GC0

$94.85

9

LENS, RH

35632-31F30

$14.37

10

LENS, LH

35612-31F30

$13.90

11

BULB (12V,21W)

09471-12045

$3.27

12

SCREW This part replaces 03242-04163.

03242-0416B

$2.93

13

BRACKET, REAR TURN SIGNAL

35620-16G00

$15.75

14

PLATE, REAR TURNSIGNAL

35629-16G00

$5.58

15

CUSHION, REAR

35647-16G00

$6.47

16

NUT This part replaces 08316-10053.

08316-1005A

$2.19

17

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
