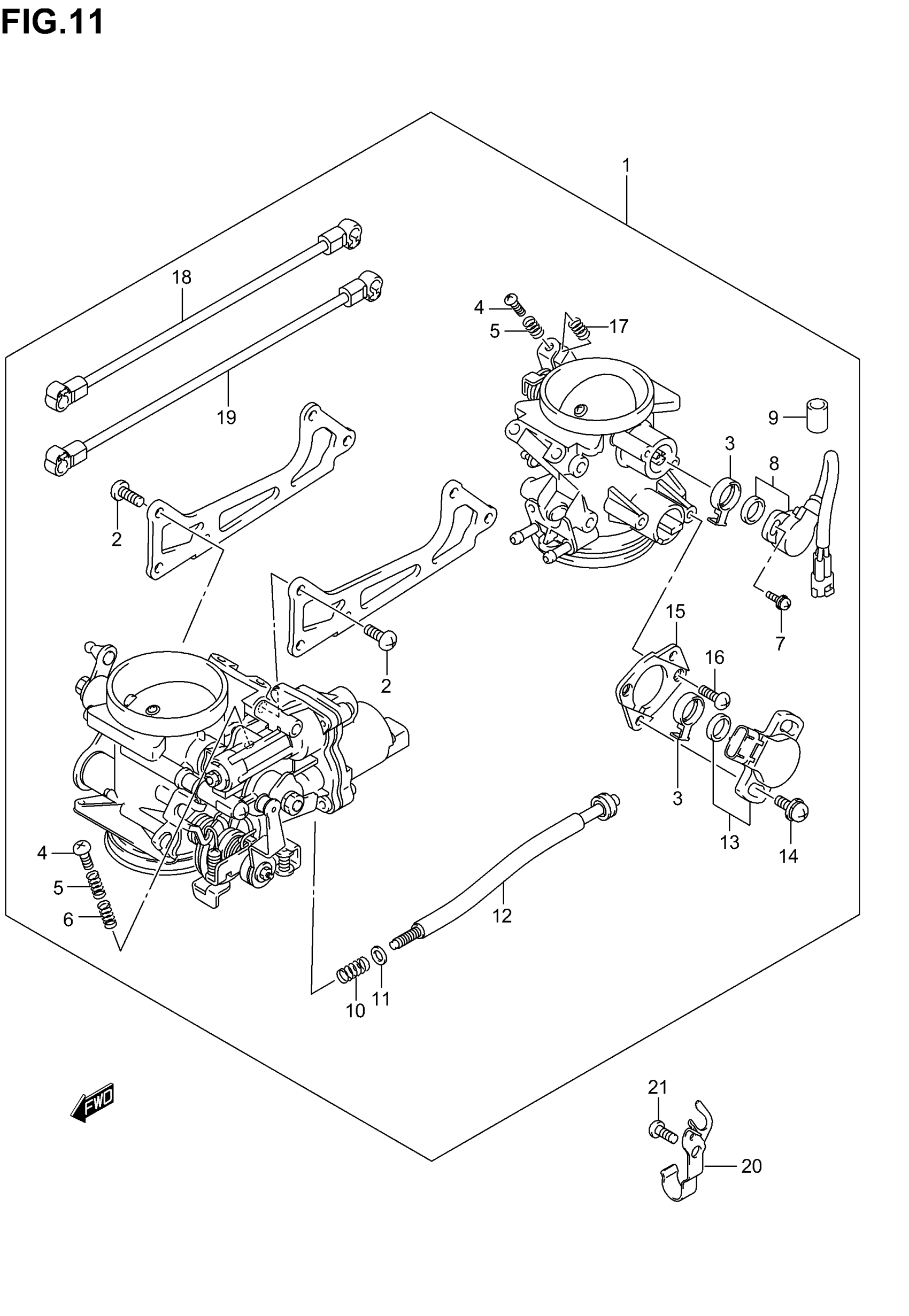

Suzuki SV1000 (2005) THROTTLE BODY Diagram

#

Description
Price

1

INJECTION ASSY | E3,E28

13405-16G20

Unavailable

1

INJECTION ASSY | E33; Includes Item(s) 2 - 19

13405-16G11

Unavailable

2

SCREW

13602-06128

$2.96

3

RING

13311-06G00

Unavailable

4

SCREW

13548-42F00

Unavailable

5

SPRING

13271-44B00

$3.89

6

SPRING

13268-96111

$4.35

7

SCREW

13605-39F00

$4.52

8

SENSOR ASSY

13580-16G00

Unavailable

9

HOSE

13683-39F10

Unavailable

10

SPRING

13271-93011

$5.32

11

PACKING

13386-09410

Unavailable

12

ADJUST SCREW ASSY

13270-06G00

$90.23

13

SENSOR ASSY,THR This part replaces 13550-13D60.

13550-13D61

$87.14

14

SCREW

13605-02F00

$3.71

15

PLATE This part replaces 13627-16G00.

13627-16G30

Unavailable

16

SCREW

02112-04107

$1.55

17

SPRING

13268-89J00

$5.17

18

ROD ASSY

13552-16G10

Unavailable

19

ROD ASSY

13552-16G00

$29.33

20

PLATE, IDLE ADJUST | MODEL K3/K4

13279-16G00

Unavailable

20

PLATE, IDLE ADJUST | MODEL K5

13279-16G10

Unavailable

21

BOLT This part replaces 01500-06123.

01500-0612A

$1.78
