Partiron

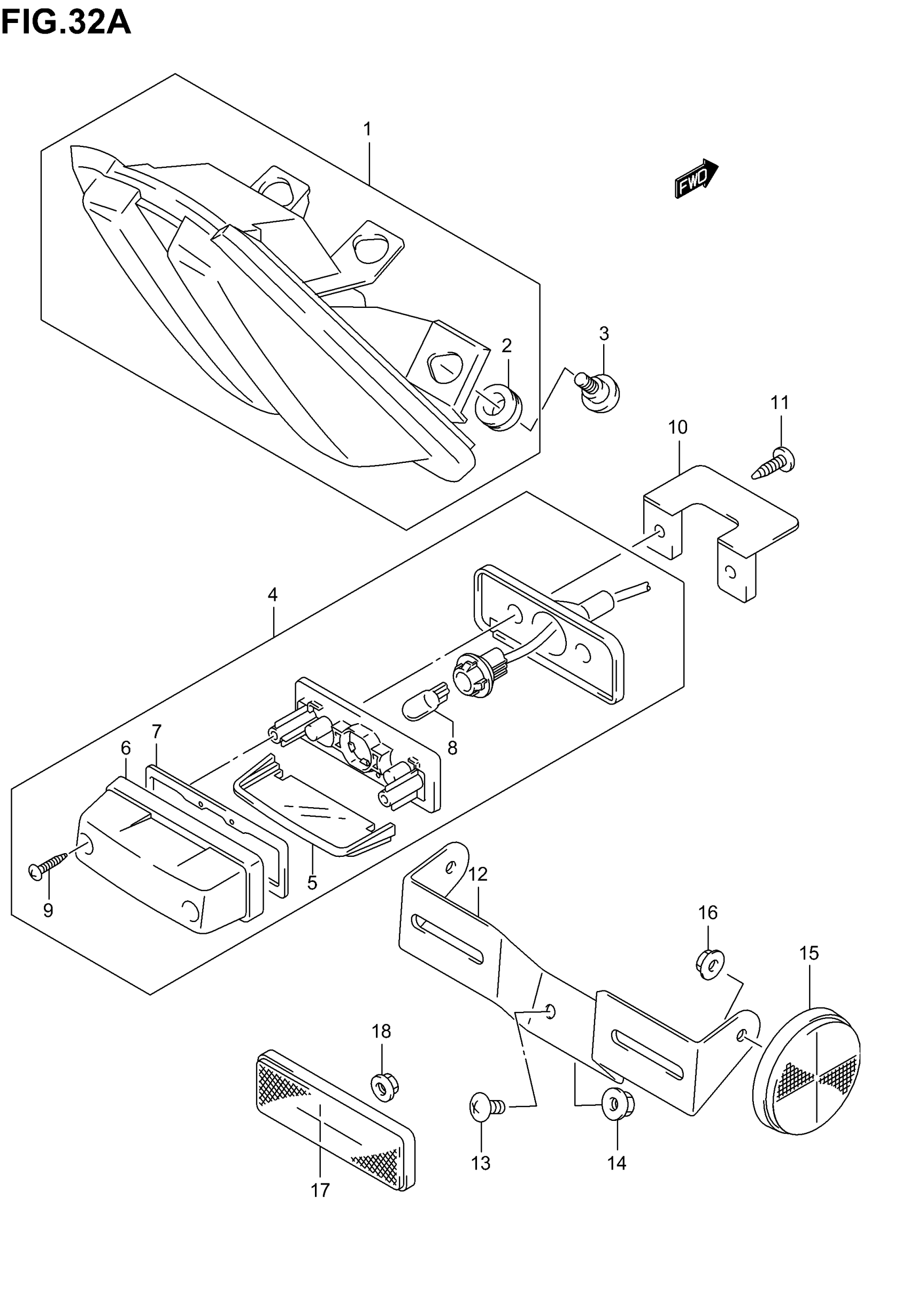

Suzuki SV1000 (2005) TAIL LAMP (SV1000SK5) Diagram

#

Description
Price

1

LAMP ASSY,RR CO | Includes Item(s) 2 This part replaces 35710-16G30.

35710-16G32

$439.18

2

CUSHION (10X20X10)

09320-10049

$2.35

3

SCREW, HEADLAMP

09139-06118

$3.25

4

LAMP ASSY,LICEN | Includes Item(s) 5 - 9 This part replaces 35910-16G10.

35910-16G11

$88.47

5

.LENS This part replaces 35912-16G00.

35912-16G01

$12.27

6

COVER

35917-16G00

$12.40

7

GASKET

35913-16G00

Unavailable

8

.BULB (12V5W)

09471-12216

$5.36

9

SCREW This part replaces 03211-04163.

03211-0416A

$1.49

10

BRACKET, LICENSE

35926-16G00

$10.02

11

SCREW This part replaces 03541-05203.

03541-0520A

$1.80

12

BRACKET, LICENSE PLATE

35927-17G30

$14.20

13

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

14

NUT This part replaces 08316-10063.

08316-1006B

$2.50

15

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

16

NUT This part replaces 08316-10053.

08316-1005A

$2.19

17

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

$20.88

18

NUT This part replaces 08316-10053.

08316-1005A

$2.19
