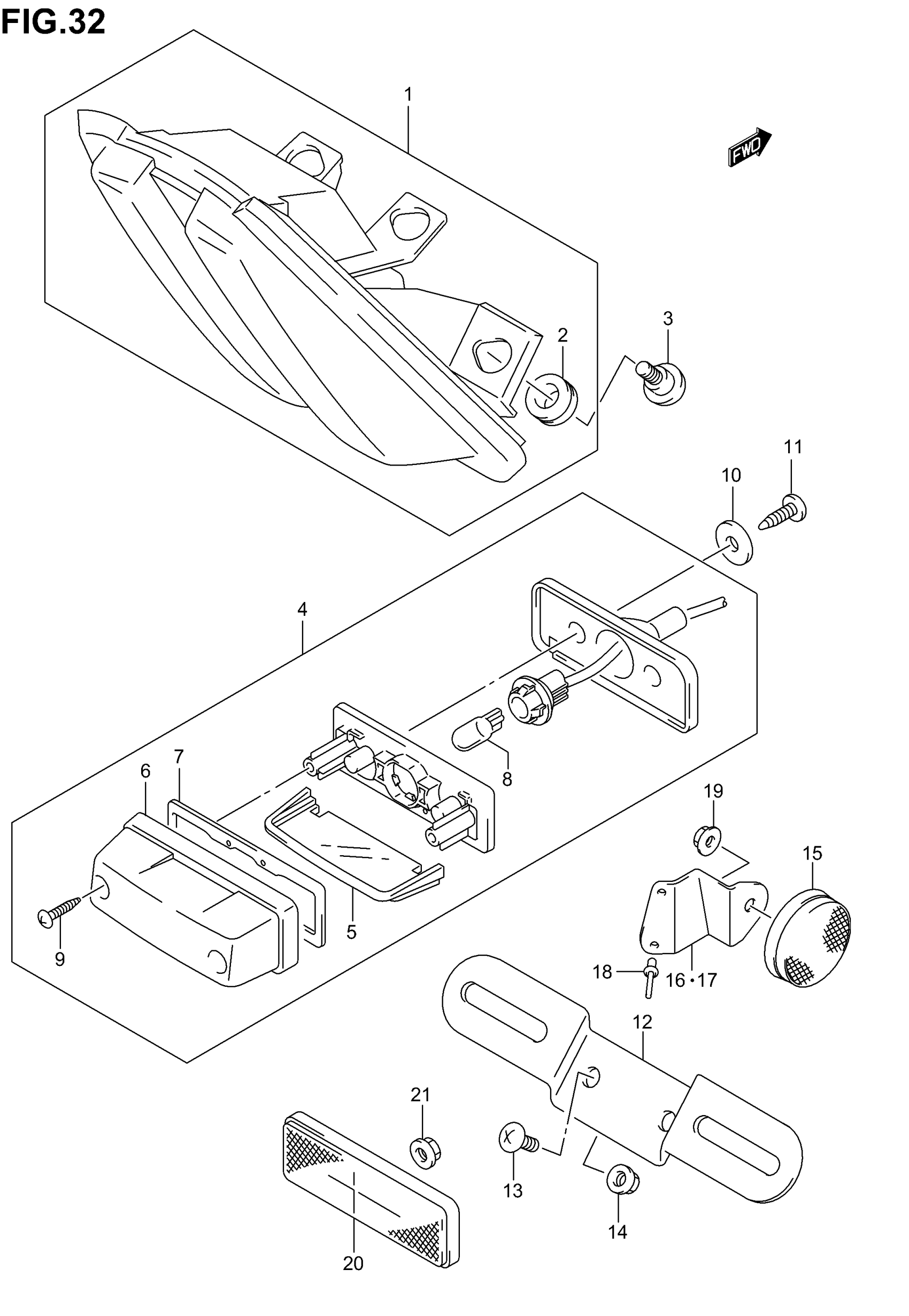

Suzuki SV1000 (2005) TAIL LAMP (SV1000SK3/SK4) Diagram

#

Description
Price

1

LAMP ASSY,RR CO | Includes Item(s) 2 This part replaces 35710-16G30.

35710-16G32

$474.97

2

CUSHION (10X20X10)

09320-10049

$2.38

3

SCREW, HEADLAMP

09139-06118

$3.05

4

LAMP ASSY,LICEN | SV1000SK3 This part replaces 35910-16G00.

35910-16G01

Unavailable

4

LAMP ASSY,LICEN | SV1000SK4; Includes Item(s) 5 - 9 This part replaces 35910-16G10.

35910-16G11

$99.83

5

.LENS This part replaces 35912-16G00.

35912-16G01

$13.85

6

COVER

35917-16G00

$14.00

7

GASKET

35913-16G00

Unavailable

8

.BULB (12V5W)

09471-12216

$4.84

9

SCREW This part replaces 03211-04163.

03211-0416A

$1.43

10

WASHER, LICENSE LAMP | 5.5X20X1.2

09160-05501

$1.86

11

SCREW This part replaces 03541-05163.

03541-0516A

$1.37

12

BRACKET, LICENSE PLATE

35927-16G00

Unavailable

13

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

14

NUT This part replaces 08316-10063.

08316-1006B

$2.50

15

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

16

BRACKET, REAR SIDE, RR, RH

35975-16G00

Unavailable

17

BRACKET, REAR SIDE, RR, LH

35976-16G00

Unavailable

18

RIVET, REAR

09229-04050

$3.70

19

NUT This part replaces 08316-10053.

08316-1005A

$2.19

20

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

$19.11

21

NUT This part replaces 08316-10053.

08316-1005A

$2.19
