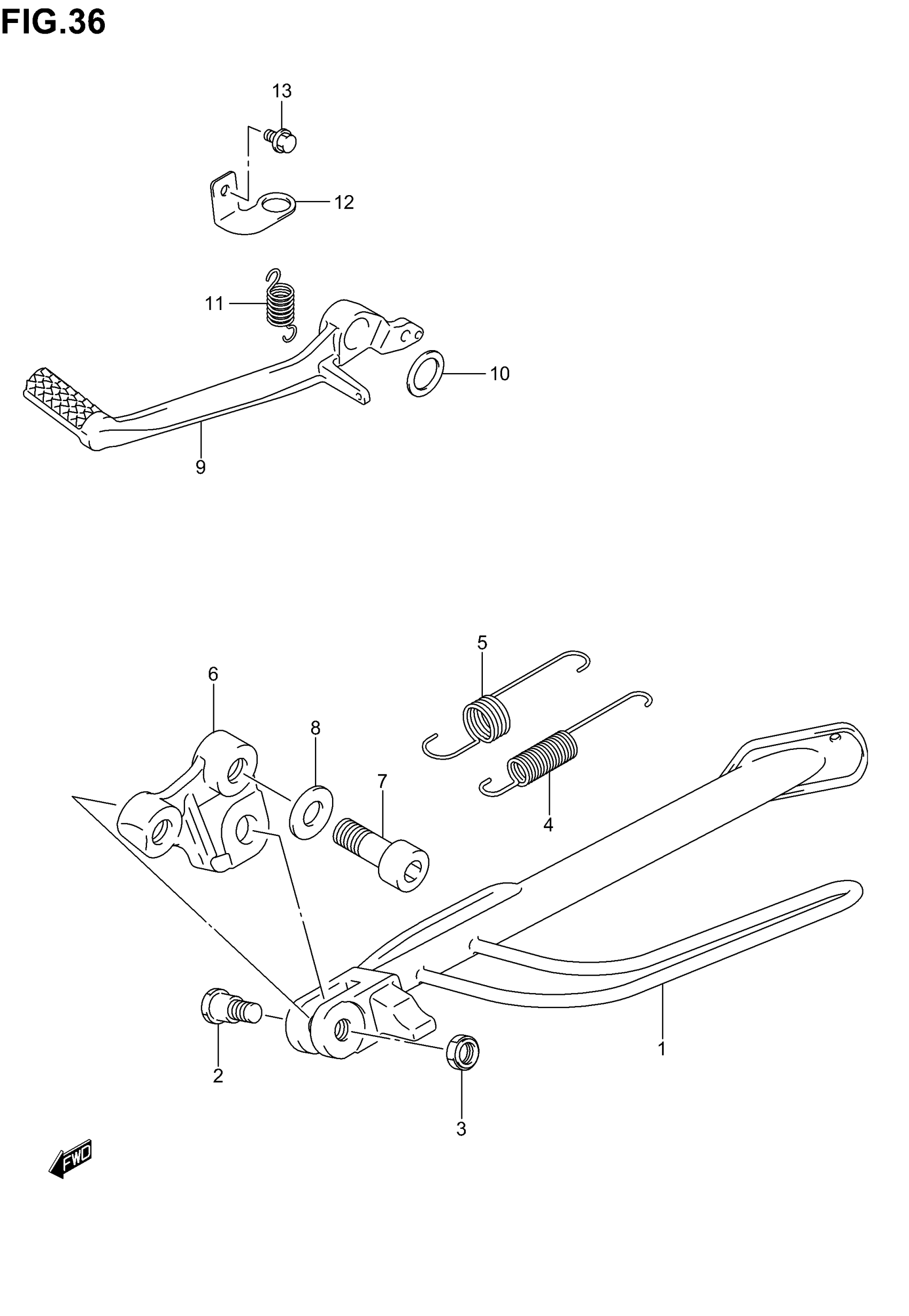

Suzuki SV1000 (2005) STAND Diagram

#

Description
Price

1

STAND, PROP | SV1000SK3

42310-16G00

Unavailable

1

STAND, PROP | SV1000SK4/SK5

42310-16G50

Unavailable

1

STAND, PROP | SV1000K3

42310-16G10

Unavailable

2

BOLT, PROP STAND

09111-10027

$3.37

3

NUT, PROP STAND

42321-03FK0

$5.17

4

SPRING, INNER | SV1000SK3/SK4/SK5

09443-14069

$6.06

4

SPRING, INNER | SV1000K3

09443-14071

Unavailable

5

SPRING, OUTER

09443-19012

$5.89

6

BRACKET, PROP STAND

42330-16G00

$108.15

7

BOLT

09106-12003

$5.10

8

LOCK WASHER

09160-12061

$2.15

9

PEDAL, BRAKE

43111-16G00

$120.42

10

WASHER

09160-18022

$2.92

11

SPRING | SV1000SK3 This part replaces 09443-13031.

09443-13031-XC0

$6.88

11

SPRING, RETURN | SV1000K3/SK4/SK5

09443-13035

$6.53

12

BRACKET, STOP SWITCH | SV1000SK3

43251-16G00

Unavailable

12

BRACKET, STOP SWITCH | SV1000K3

43251-16G10

Unavailable

13

BOLT, CLAMP | MODEL K3 This part replaces 01550-06123.

01550-0612A

$1.97
