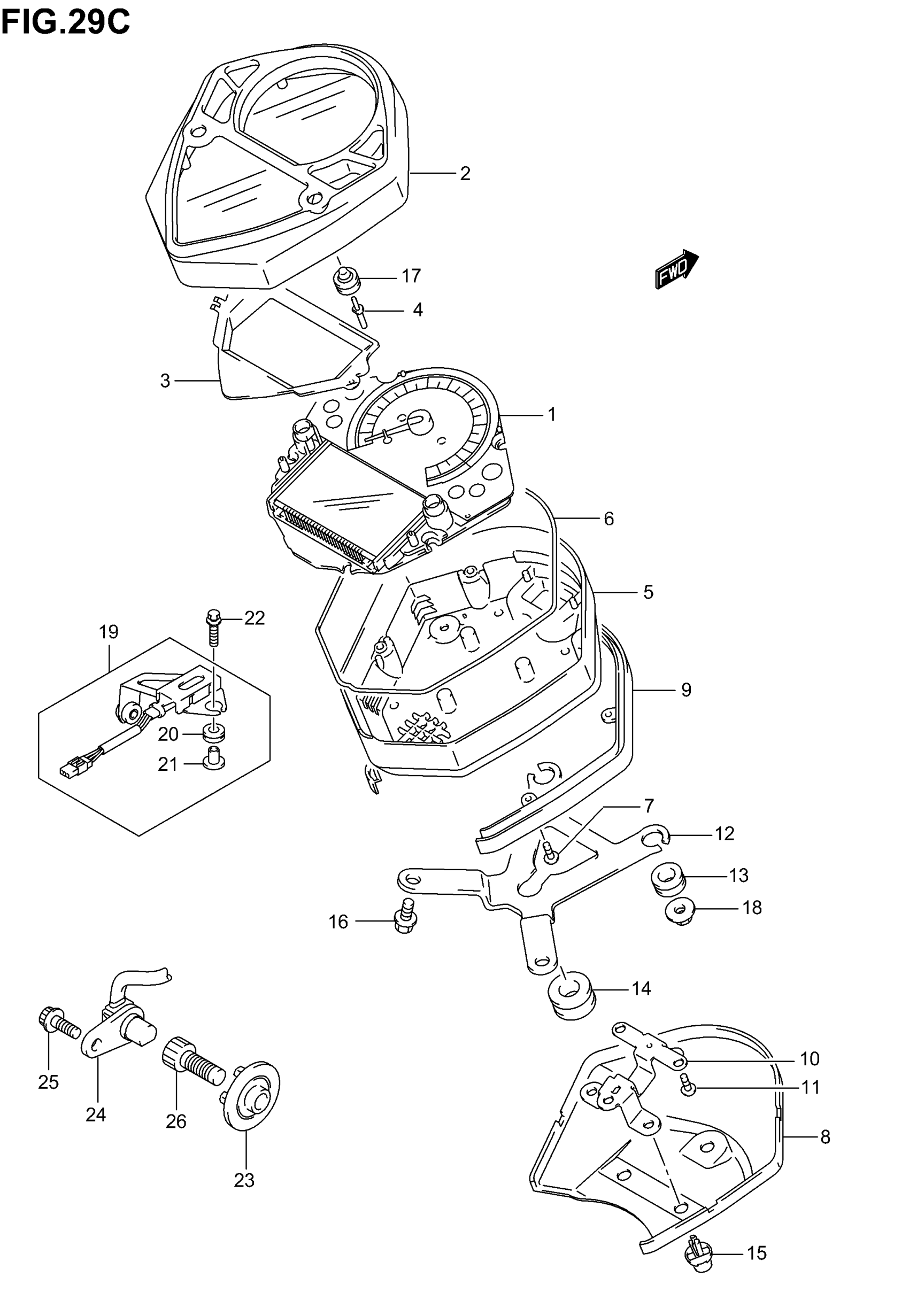

Suzuki SV1000 (2005) SPEEDOMETER (SV1000K5) NOT FOR U.S. MARKET Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-16G80

Unavailable

2

CASE, SPEEDOMETER UPPER

34150-16G30

Unavailable

3

PLATE, SPEEDOMETER

34125-16G00

Unavailable

4

KNOB, SPEEDOMETER

34124-16G00

$9.42

5

CASE, SPEEDOMETER LOWER

34152-16G00

$56.48

6

GASKET, METER CASE

34153-16G00

$15.25

7

SCREW, SPEEDOMETER

34183-16G30

$4.52

8

COVER, SPEEDOMETER LOWER

34156-16G30

$70.70

9

DECORATION PLATE, METER CASE

34157-16G30

$83.43

10

HOLDER, SPEEDOMETER

34195-16G30

$24.07

11

SCREW

34149-16B00

$1.98

12

BRACKET, SPEEDOMETER CASE

34162-16G40

Unavailable

13

.CUSHION

34996-43410

$4.35

14

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

15

CLIP

09409-07332

$2.50

16

BOLT, EXHAUST COVER This part replaces 07120-06163.

07120-0616B

$2.45

17

COVER, SPEEDOMETER KNOB

34126-16G00

Unavailable

18

NUT This part replaces 09159-05044.

09159-05049

$2.30

19

RESISTOR ASSY | Includes Item(s) 20 - 21

36510-16G00

Unavailable

20

CUSHION, RESISTOR

09320-10015

$2.54

21

SPACER (6.5X10X11.6)

09180-06319

$3.85

22

BOLT, RESISTOR (6X25)

09116-06131

$2.36

23

ROTOR,SPEED This part replaces 34981-35F00.

34981-38G01

$17.92

24

SENSOR, SPEED

34990-35F00

$127.72

25

BOLT This part replaces 07120-05123.

07120-0512B

$2.61

26

BOLT This part replaces 07130-08253.

07130-0825B

$3.37
