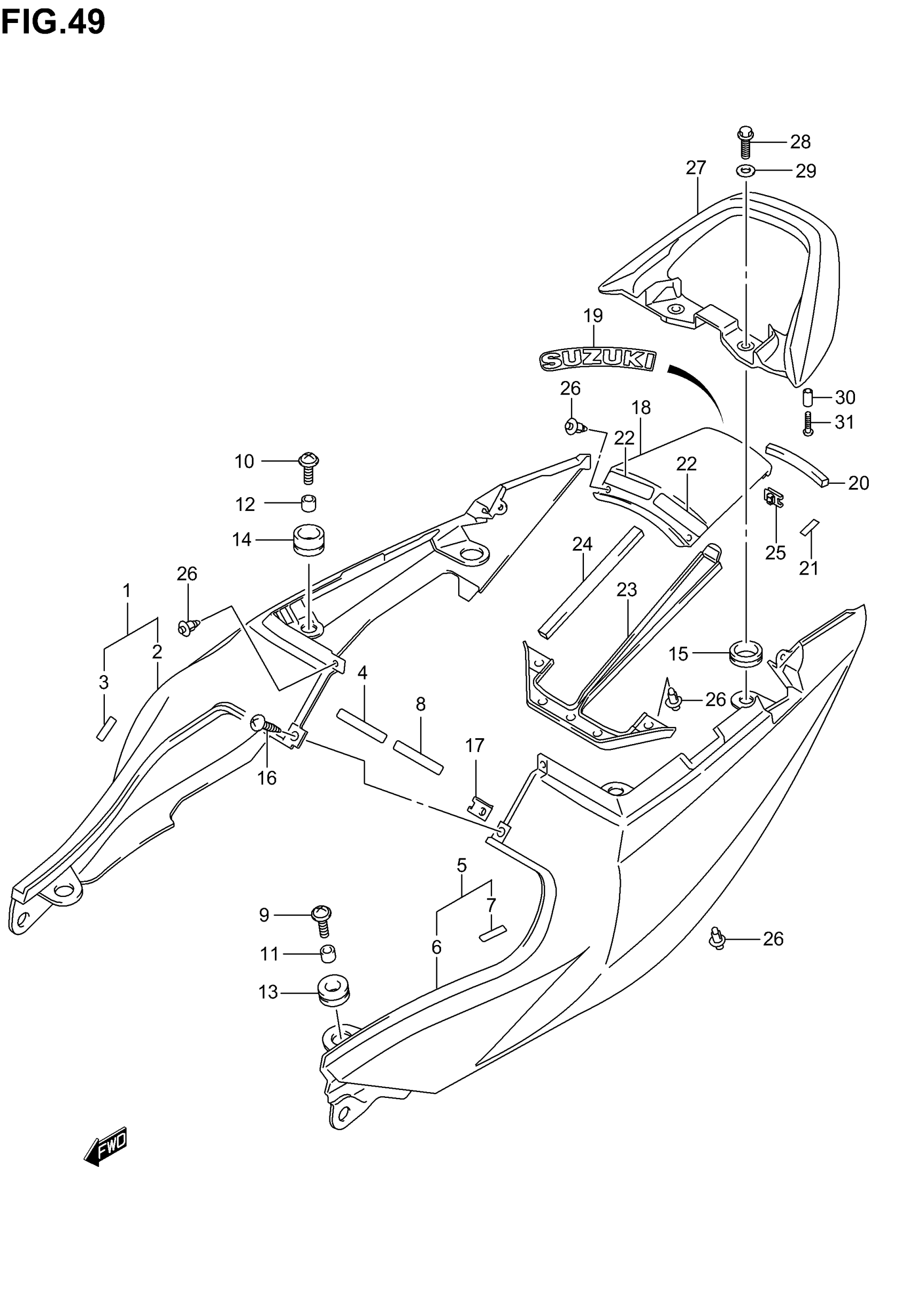

Suzuki SV1000 (2005) SEAT TAIL COVER (SV1000SK3) Diagram

#

Description
Price

1

COVER, SEAT TAIL, R (BLUE) | NOT FOR U.S. MARKET

45501-16G10-YC2

Unavailable

1

COVER,SEAT TAIL This part replaces 45501-16G10-YD8.

45501-16G21-YD8

$264.20

1

COVER,SEAT TAIL | Includes Item(s) 2 - 4 This part replaces 45501-16G10-YAV.

45501-16G11-YAV

Unavailable

2

COVER,SEAT TAIL This part replaces 45511-16G00-YC2.

45511-16G02-YC2

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 45511-16G00-YD8.

45511-16G02-YD8

Unavailable

2

COVER,SEAT TAIL This part replaces 45511-16G00-YAV.

45511-16G02

$90.00

3

TAPE, SEAT TAIL COVER FR

45516-42F00

$10.08

4

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

5

NO DESCRIPTION AVAILABLE | NOT FOR U.S. MARKET This part replaces 45502-16G10-YC2.

45502-16G11-YC2

Unavailable

5

CVR,SEAT TAIL(S This part replaces 45502-16G10-YD8.

45502-16G21-YD8

Unavailable

5

COVER,SEAT TAIL | Includes Item(s) 6 - 8 This part replaces 45502-16G10-YAV.

45502-16G11-YAV

Unavailable

6

COVER, SEAT TAIL, L (BLUE)

45512-16G00-YC2

Unavailable

6

COVER,SEAT TAIL This part replaces 45512-16G00-YD8.

45512-16G02-YD8

Unavailable

6

COVER,SEAT TAIL This part replaces 45512-16G00-YAV.

45512-16G02

Unavailable

7

TAPE, SEAT TAIL COVER FR

45516-42F00

$10.08

8

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

9

SCREW | FR

09136-06105

$2.06

10

SCREW | CTR

09136-06105

$2.06

11

SPACER | FR

09180-06286

$2.61

12

SPACER | CTR

09180-06286

$2.61

13

CUSHION | FR

09320-10045

$3.49

14

CUSHION | CTR

09320-10045

$3.49

15

CUSHION (20X32X9) | RR This part replaces 09320-20010.

09320-20011

$3.38

16

SCREW This part replaces 03241-15123.

03241-1512B

$2.46

17

NUT

09148-05038

$2.01

18

COVER,SEAT TAIL This part replaces 45503-16G00-YC2.

45503-16G01-YC2

Unavailable

18

COVER, SEAT TAIL, CENTER (SILVER)

45503-16G00-YD8

Unavailable

18

COVER,SEAT TAIL | Includes Item(s) 19 - 22 This part replaces 45503-16G00-YAV.

45503-16G01-YAV

Unavailable

19

.EMBLEM,SUZUKI (SILVER) | FOR YC2,YAV This part replaces 68161-16G00-YD8.

68161-16G01-YD8

$8.13

19

EMBLEM, "SUZUKI" | FOR YD8

68161-16G00-YU8

Unavailable

20

CUSHION, SEAT TAIL COVER CTR

45518-16G00

$7.30

21

TAPE, SEAT TAIL COVER

45517-16G00

$9.08

22

TAPE

45516-42F00

$10.08

23

COVER, SEAT TAIL, REAR (BLUE)

45514-16G00-YC2

Unavailable

23

COVER, SEAT TAIL, REAR (SILVER)

45514-16G00-YD8

Unavailable

23

COVER, SEAT TAIL, REAR (COPPER)

45514-16G00-YAV

Unavailable

24

CUSHION,SEAT TA This part replaces 45519-16G00.

45519-16G01

$8.33

25

NUT

09148-06018

$3.00

26

CLIP

09409-06314-5PK

$2.80

27

HANDLE, PILLION RIDER (BLUE)

46211-16G00-YC2

Unavailable

27

HANDLE, PILLION RIDER (SILVER)

46211-16G00-YD8

Unavailable

27

HANDLE,PILLION This part replaces 46211-16G00-YAV.

46211-16G00-13L

$315.87

28

BOLT This part replaces 01551-08403.

01551-0840B

$3.12

29

WASHER

09160-08501

$2.38

30

SPACER

09180-06271

$2.17

31

SCREW

09139-06112

$4.28
