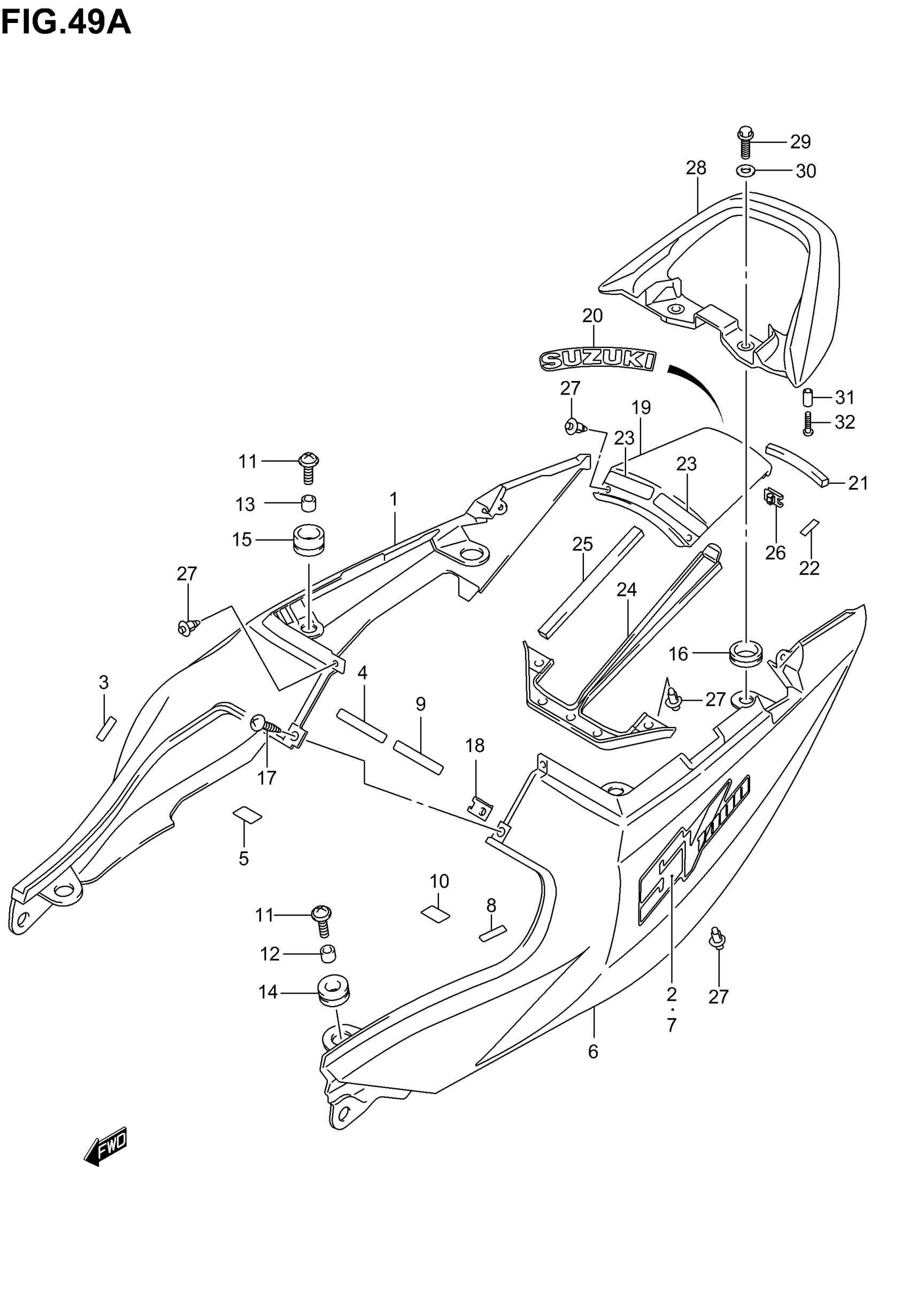

Suzuki SV1000 (2005) SEAT TAIL COVER (SV1000K3) Diagram

#

Description
Price

1

COVER,SEAT TAIL This part replaces 45501-16G00-YC2.

45501-16G03-YC2

$204.85

1

COVER,SEAT TAIL This part replaces 45501-16G00-YD8.

45501-16G03-YD8

Unavailable

1

COVER, SEAT TAIL, R (BLACK) | NOT FOR U.S. MARKET; Includes Item(s) 2 - 5

45501-16G00-33J

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YC2

68161-16G10-ML6

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YD8

68161-16G10-ML4

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR 33J

68161-16G10-ML5

Unavailable

3

TAPE, SEAT TAIL COVER FR

45516-42F00

$8.93

4

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

5

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$5.98

6

COVER,SEAT TAIL This part replaces 45502-16G00-YC2.

45502-16G03-YC2

$211.00

6

NO DESCRIPTION AVAILABLE This part replaces 45502-16G00-YD8.

45502-16G02-YD8

Unavailable

6

COVER, SEAT TAIL, L (BLACK) | NOT FOR U.S. MARKET; Includes Item(s) 7 - 10

45502-16G00-33J

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YC2

68161-16G10-ML6

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YD8

68161-16G10-ML4

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR 33J

68161-16G10-ML5

Unavailable

8

TAPE, SEAT TAIL COVER FR

45516-42F00

$8.93

9

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

10

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$5.98

11

SCREW

09136-06105

$1.97

12

SPACER | FR

09180-06286

$2.50

13

SPACER | CTR

09180-06286

$2.50

14

CUSHION | FR This part replaces 09320-10052.

09320-10079

$3.61

15

CUSHION,FRAME COVER UP | CTR This part replaces 47115-16G00.

47115-16G01

$3.37

16

CUSHION (20X32X9) | RR This part replaces 09320-20010.

09320-20011

$2.69

17

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

18

NUT

09148-05038

$1.97

19

COVER,SEAT TAIL This part replaces 45503-16G00-YC2.

45503-16G01-YC2

Unavailable

19

COVER, SEAT TAIL CENTER (SILVER)

45503-16G00-YD8

Unavailable

19

COVER, SEAT TAIL CENTER (BLACK) | Includes Item(s) 20 - 23

45503-16G00-33J

Unavailable

20

.EMBLEM,SUZUKI (SILVER) | FOR YC2,33J This part replaces 68161-16G00-YD8.

68161-16G01-YD8

$7.20

20

EMBLEM, "SUZUKI" | FOR YD8

68161-16G00-YU8

Unavailable

21

CUSHION

45518-16G00

$6.47

22

TAPE, SEAT TAIL COVER

45517-16G00

$8.05

23

TAPE

45516-42F00

$8.93

24

COVER, SEAT TAIL, REAR (BLUE)

45514-16G00-YC2

$71.72

24

COVER, SEAT TAIL, REAR (SILVER)

45514-16G00-YD8

Unavailable

24

COVER, SEAT TAIL, REAR (BLACK)

45514-16G00-33J

Unavailable

25

CUSHION,SEAT TA This part replaces 45519-16G00.

45519-16G01

$7.38

26

NUT

09148-06018

$3.16

27

CLIP

09409-06314-5PK

$2.78

28

HANDLE, PILLION RIDER (BLUE)

46211-16G00-YC2

Unavailable

28

HANDLE, PILLION RIDER (SILVER)

46211-16G00-YD8

Unavailable

28

HANDLE,PILLION This part replaces 46211-16G00-33J.

46211-16G00-13L

$283.85

29

BOLT This part replaces 01551-08303.

01551-0830A

$3.40

30

WASHER

09160-08501

$2.28

31

SPACER

09180-06271

$2.35

32

SCREW

09139-06112

$3.93
