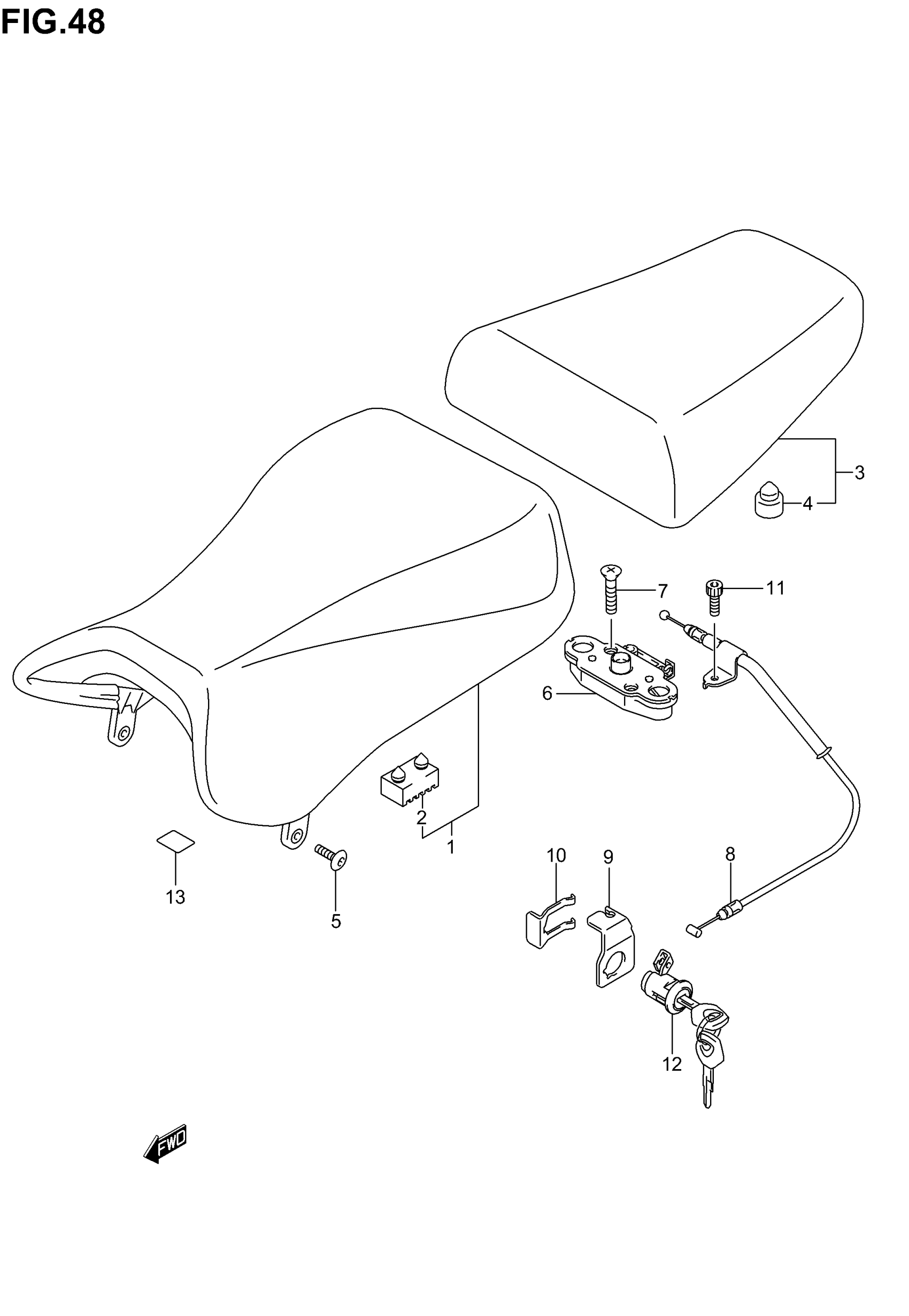

Suzuki SV1000 (2005) SEAT (SV1000SK3) Diagram

#

Description
Price

1

SEAT ASSY(BLACK | Includes Item(s) 2 This part replaces 45100-16G10-W05.

45100-16G11-W05

Unavailable

2

CUSHION

45149-42F00

$8.42

3

SEAT ASSY,PILLI | Includes Item(s) 4 This part replaces 45300-16G00-W05.

45300-16G01-W05

$217.48

4

CUSHION

09321-10019

$4.90

5

BOLT, SEAT

09106-06064

$6.02

6

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$138.38

7

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

8

CABLE,SEAT LOCK This part replaces 45280-16G00.

45280-16G01

$28.93

9

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

10

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

11

BOLT This part replaces 07130-06123.

07130-0612A

$2.50

12

LOCK SET, SEAT

95700-14810

$107.30

13

TAPE,FUEL TANK (30X40X0.2)

45517-16G20

$11.17
