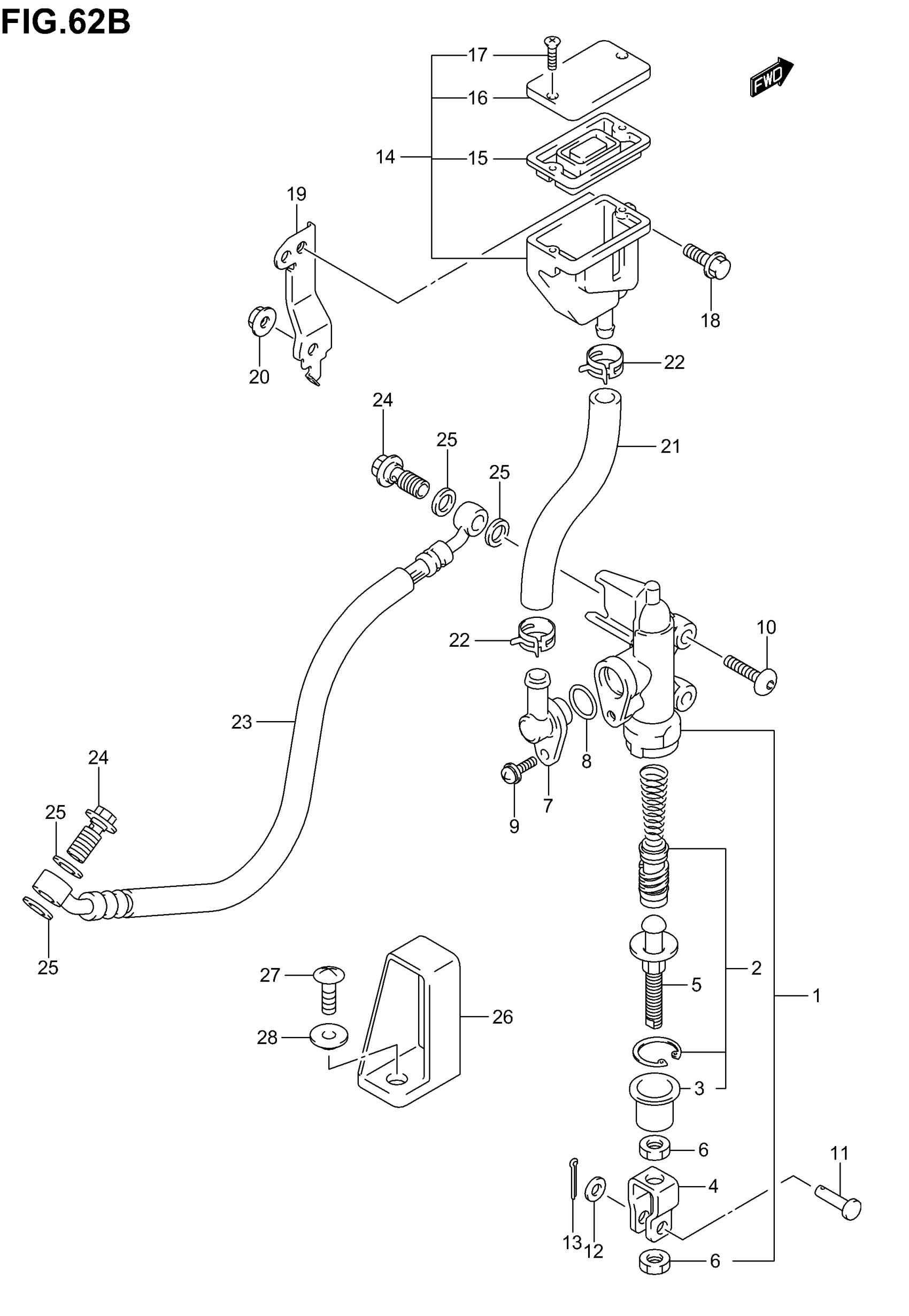

Suzuki SV1000 (2005) REAR MASTER CYLINDER (SV1000SK5) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-16G00

$234.91

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-27A30

$13.81

5

ROD, PUSH

69670-48B00

$26.97

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-05A00

$5.56

8

O RING

69686-34200

$2.93

9

.SCREW This part replaces 02112-74123.

02112-7412A

$2.12

10

BOLT (6X20)

09139-06028

$3.70

11

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

12

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

13

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

14

TANK ASSY,RR RESERVOIR | Includes Item(s) 15 - 17

69740-01D02

$70.49

15

DIAPHRAGM

59667-04700

$9.78

16

CAP

59669-05D00

$16.76

17

SCREW

69689-04A00

$1.78

18

BOLT, TANK

09103-06222

$2.26

19

BRACKET, RR RESERVOIR TANK

69750-16G10

$16.78

20

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

21

HOSE, RESERVOIR TANK

69731-16G20

$20.13

22

CLIP

09401-13417

$2.26

23

HOSE,RR BRAKE | SV1000SK5 This part replaces 69480-16G30.

69480-16G31

$44.35

24

UNION This part replaces 09360-10042.

09360-10062

$6.43

25

WASHER (10X15X1.5)

09161-10009

$1.84

26

GUIDE, RR BRAKE HOSE

69243-16G00

Unavailable

27

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

28

WASHER

09169-06041

$2.20
