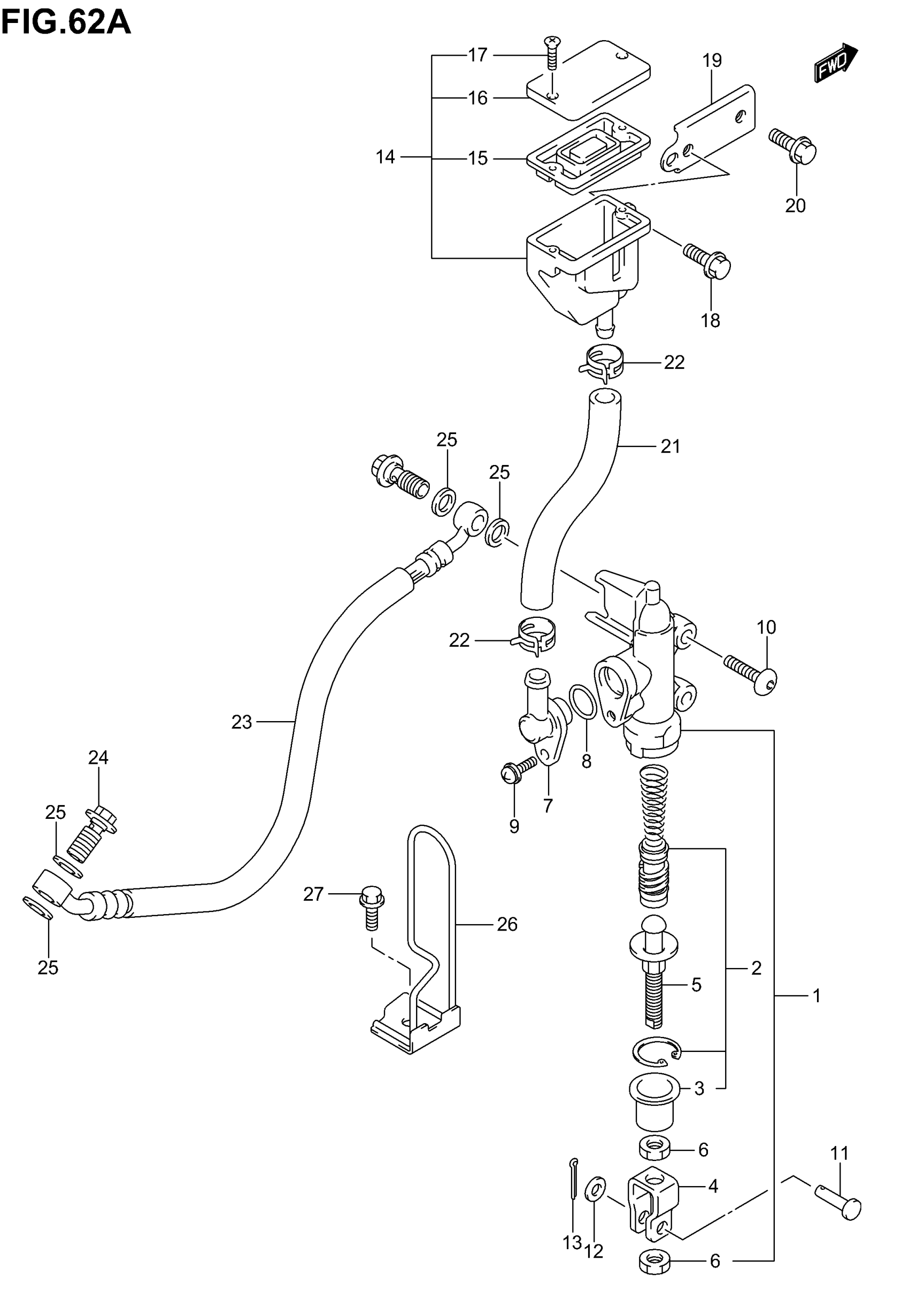

Suzuki SV1000 (2005) REAR MASTER CYLINDER (SV1000K3/SK4) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-16G00

$215.02

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$24.34

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-27A30

$13.02

5

ROD, PUSH

69670-48B00

$35.80

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-05A00

$5.23

8

O RING

69686-34200

$2.80

9

.SCREW This part replaces 02112-74123.

02112-7412A

$2.67

10

BOLT (6X20)

09139-06028

$3.33

11

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$3.71

12

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

13

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

14

TANK ASSY,RR RESERVOIR | Includes Item(s) 15 - 17

69740-01D02

$64.52

15

DIAPHRAGM

59667-04700

$8.95

16

CAP

59669-05D00

$15.78

17

SCREW

69689-04A00

$2.15

18

BOLT, TANK

09103-06222

$2.28

19

BRACKET, RR RESERVOIR TANK

69750-16G10

$18.93

20

BOLT, BRACKET | SV1000K3

01550-06167

$2.22

20

BOLT | SV1000SK4 This part replaces 01550-06163.

01550-0616A

$1.97

21

HOSE, RESERVOIR TANK

69731-16G20

$22.72

22

CLIP

09401-13417

$2.24

23

HOSE, REAR BRAKE | SV1000K3

69480-16G20

Unavailable

23

HOSE,RR BRAKE | SV1000SK4 This part replaces 69480-16G30.

69480-16G31

Unavailable

24

UNION This part replaces 09360-10042.

09360-10062

$5.81

25

WASHER (10X15X1.5)

09161-10009

$1.83

26

GUIDE, RR BRAKE HOSE NO.1

69260-16G00

Unavailable

27

BOLT This part replaces 01547-06163.

01547-0616B

$2.43
