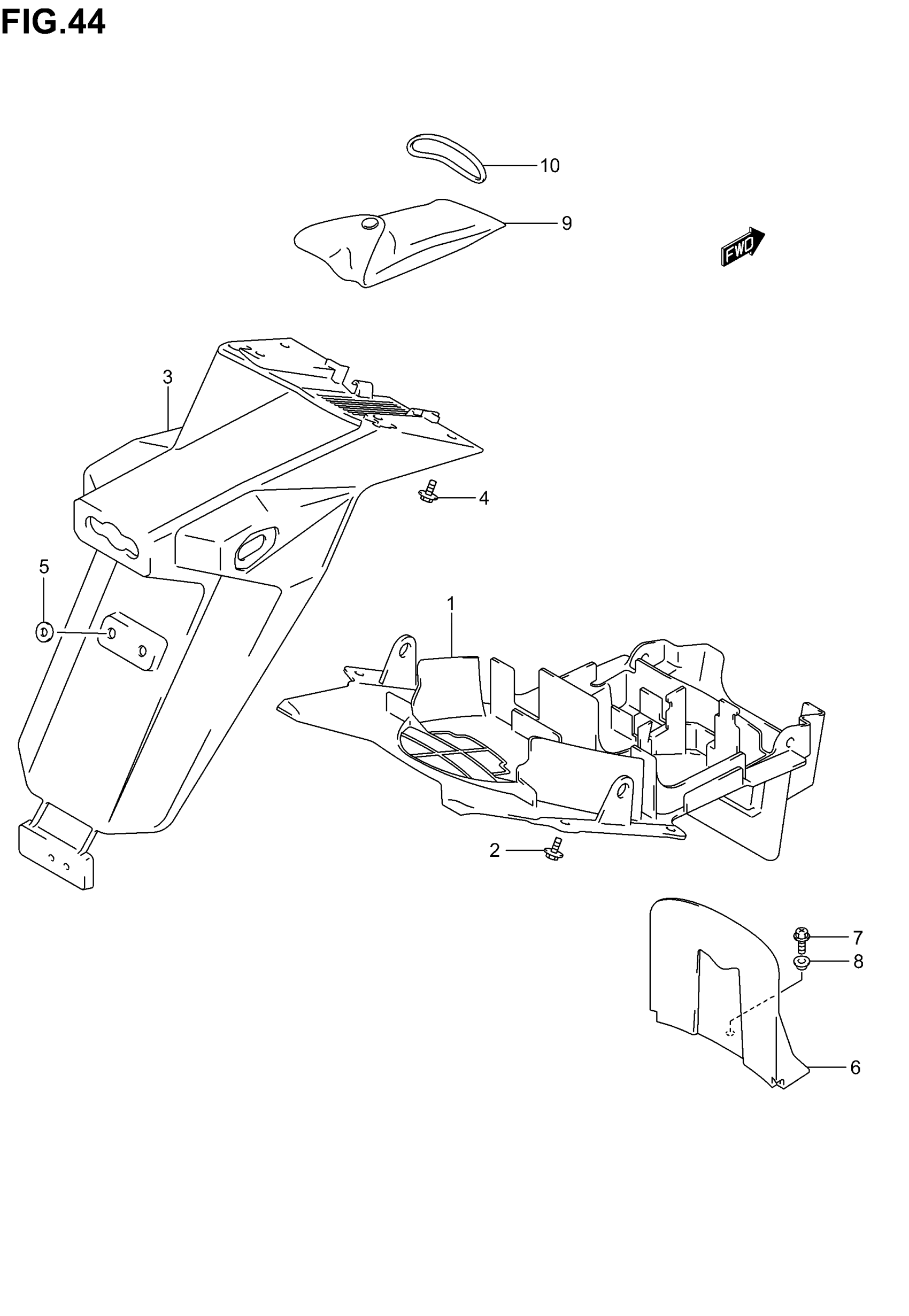

Suzuki SV1000 (2005) REAR FENDER (SV1000SK3) Diagram

#

Description

Price

1

FENDER, REAR, FRONT (BLACK)

63111-16G00-291

Unavailable

2

BOLT,6X14 This part replaces 09116-06098.

09116-06098-XC0

$2.47

3

FENDER, REAR (BLACK)

63112-16G10-291

Unavailable

4

BOLT,6X14 This part replaces 09116-06098.

09116-06098-XC0

$2.47

5

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

6

MUDGUARD, LOWER

63421-16G00

Unavailable

7

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

8

WASHER

09169-06071

$2.50

9

TOOL ASSY This part replaces 09800-21039.

09800-21089

$69.16

10

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.60
