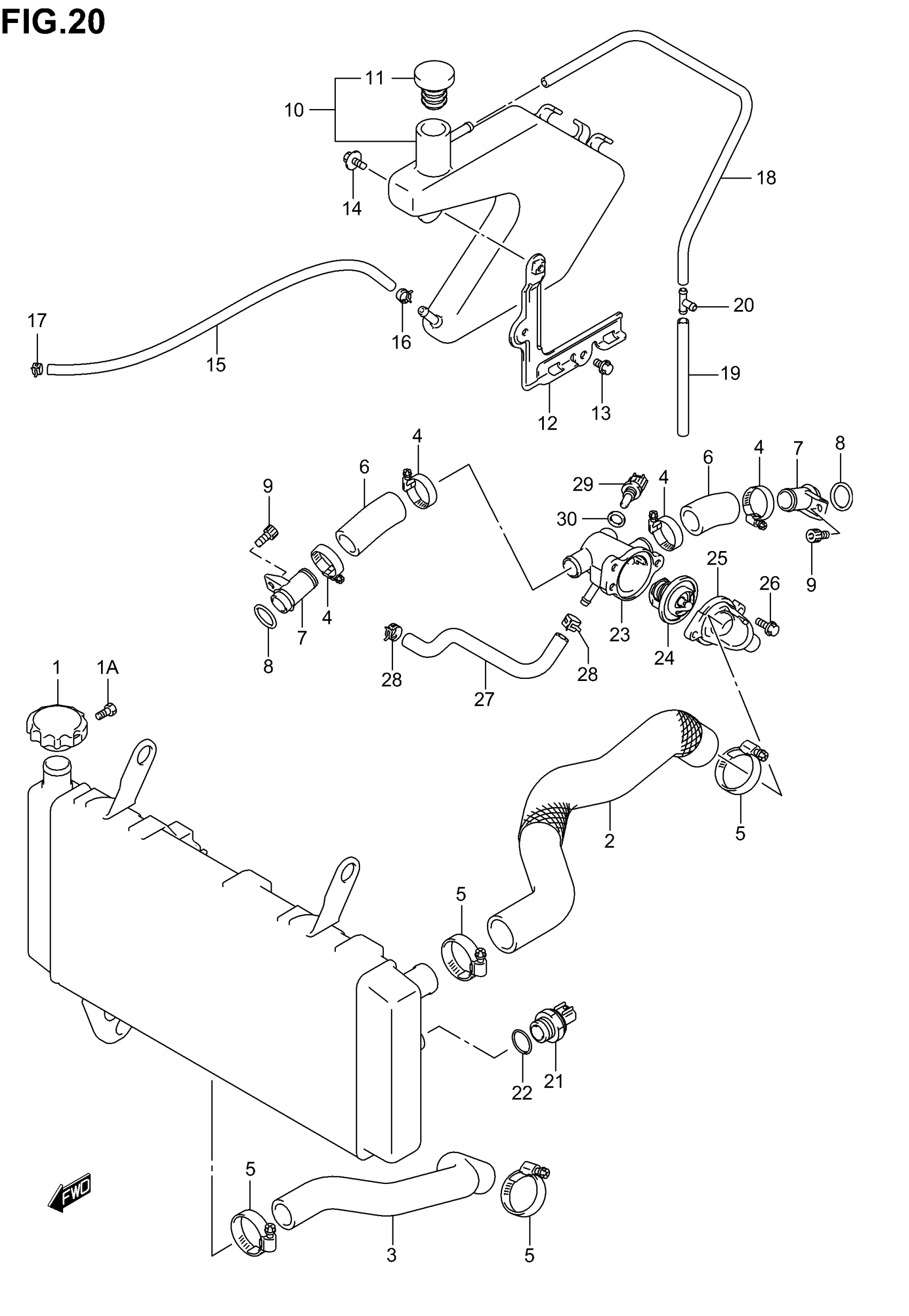

Suzuki SV1000 (2005) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR | SV1000S

17730-14G00

$40.97

1

CAP, RADIATOR | SV1000

17730-08D10

$58.77

1A

SCREW,RADIATOR CAP | SV1000

17733-03D10

$2.97

2

HOSE, RADIATOR INLET

17851-16G00

$47.90

3

HOSE, RADIATOR OUTLET

17852-16G00

$32.85

4

CLAMP

09402-28511

$6.40

5

CLAMP

09402-38511

$11.00

6

HOSE, CONNECTOR INLET

17853-02F00

$9.29

7

UNION, CONNECTOR HOSE | MODEL K3 This part replaces 17890-06G00.

17890-06G20

$14.20

7

UNION, CONNECTOR HOSE | MODEL K4/K5

17890-06G20

$14.20

8

O RING

09280-18009

$5.42

9

BOLT This part replaces 07130-06123.

07130-0612A

$2.58

10

TANK ASSY, RESERVOIR | Includes Item(s) 11

17910-16G00

$45.70

11

.CAP,RESERVOIR TANK

17931-02FA0

$5.32

12

BRACKET, RESERVOIR TANK

17920-16G00

Unavailable

13

BOLT This part replaces 01550-06103.

01550-0610A

$2.01

14

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.28

15

HOSE, RESERVOIR TANK INLET | SV1000S

17981-16G00

Unavailable

15

HOSE, RESERVOIR TANK INLET | SV1000 L:600!440

09352-50901-600

$7.63

16

CLIP

09401-08411

$1.82

17

CLIP | SV1000S

09401-10411

$3.05

18

HOSE, RESERVOIR TANK OVERFLOW, NO.1 | L:600!190

09352-50901-600

$7.63

19

HOSE(7X10.2X600 | L:600!450 This part replaces 09352-70103-600.

09352-70104-600

$5.23

20

JOINT

09367-08005

$5.25

21

SWITCH,RDTR FAN | Includes Item(s) 22 This part replaces 17680-33E00.

17680-33E01

$46.33

22

O RING

17689-50F00

$2.63

23

CONNECTOR,THERMOSTAT INLET

17662-02F11

$72.57

24

THERMOSTAT,WATER This part replaces 17670-06G50.

17670-06G51

$24.64

25

CAP,THERMOSTAT CONNECTOR

17663-42E00

$61.78

26

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

27

HOSE, CONNECTOR TO WATER PUMP

17856-16G10

$25.08

28

CLIP This part replaces 09401-12409.

09401-12414

$3.09

29

SENSOR, WATER TEMP

13650-10G00

$83.45

30

GASKET, TEMP SENSOR

09168-12017

$2.01
