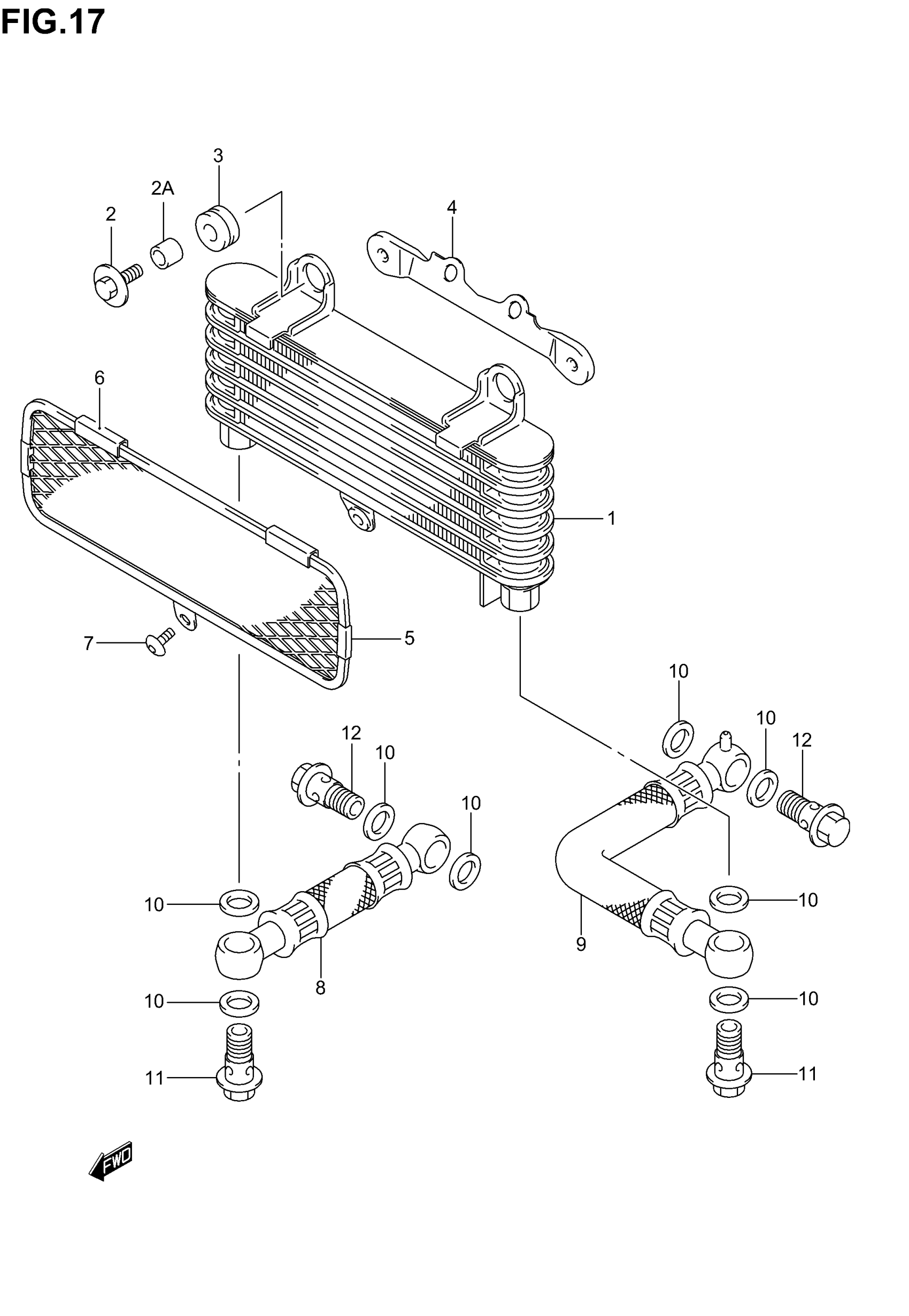

Suzuki SV1000 (2005) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-16G00

Unavailable

2

BOLT

09116-06167

$2.19

2A

SPACER | SV1000

09180-06310

$1.91

3

CUSHION

09320-09009

$4.64

4

BRACKET, OIL COOLER

16620-02F00

$11.53

5

GUARD,OIL COOLE | Includes Item(s) 6 This part replaces 16650-16G00.

16650-16G01

$47.65

6

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.92

7

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

8

HOSE, OIL COOLER RH

16460-16G00

$148.68

9

HOSE, OIL COOLER LH

16470-16G00

Unavailable

10

GASKET | MODEL K3

09168-14011

$1.85

10

.GASKET (14X20X1.5) | MODEL K4/K5

09168-14015

$2.03

11

BOLT, UNION

09360-12012

$11.57

12

BOLT

09360-14012

$10.86
