2005 Suzuki SV1000 Label Diagram

← All diagrams

Find the part on the Label diagram for your 2005 Suzuki SV1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

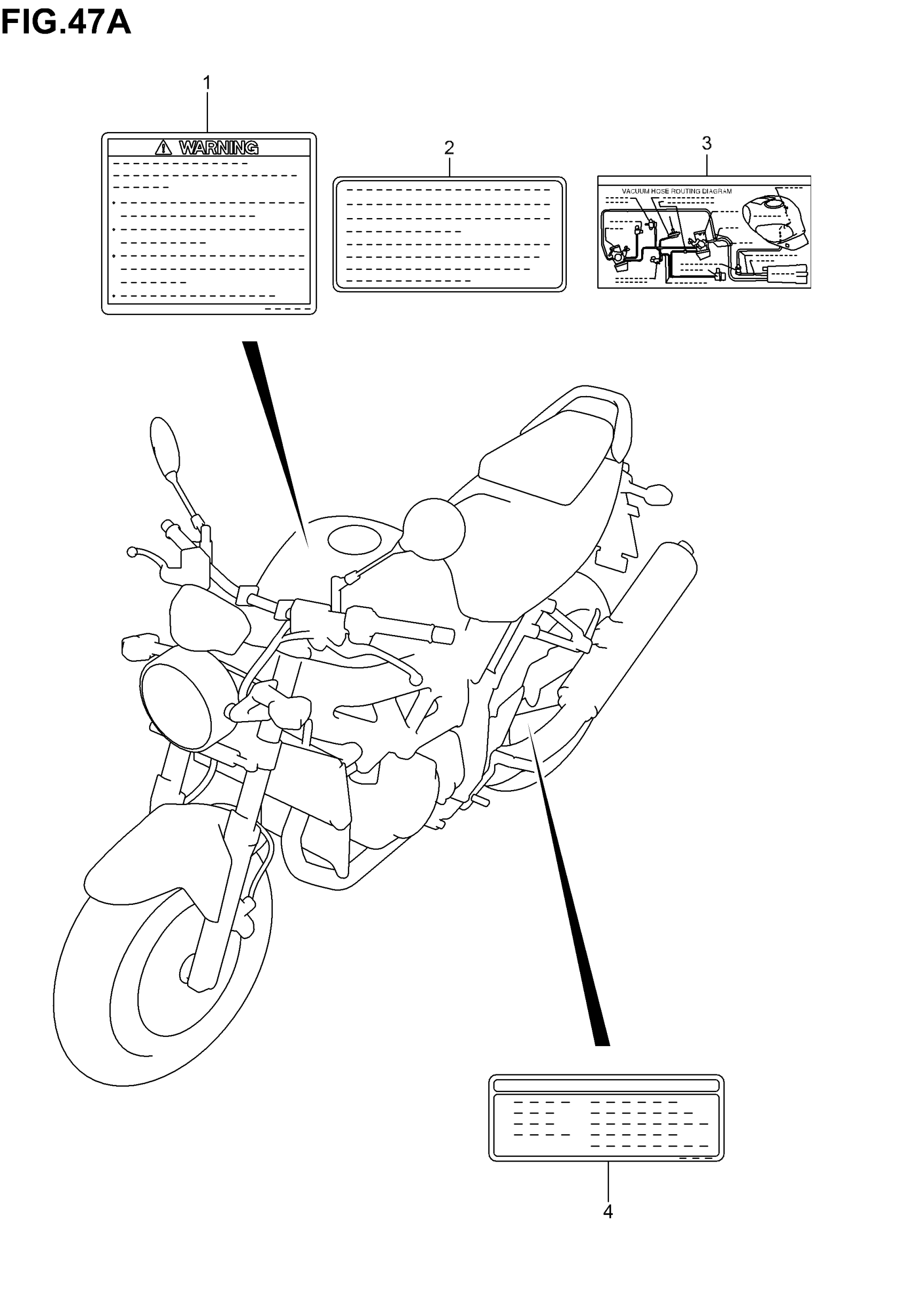

2005 Suzuki SV1000 Label Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LABEL, WARNING | E28

68319-29F30

—
Out of stock

2

LABEL,MANUAL NOTICE | E3,E33 This part replaces 68353-26E02.

68353-26E03

1
Out of stock

3

LABEL, ROUTING | E33 This part replaces 68387-16G00.

68387-17G00

1
Out of stock

4

LABEL, TIRE INFORMATION | E28

68332-16G00

—
Out of stock

4

LABEL, TIRE INFORMATION | E3,E33

68332-16G10

1
Out of stock

5

MANUAL, OWNER'S | MODEL K3 E28

99011-16G60-01A

—
Out of stock

5

MANUAL, OWNER'S | MODEL K3 E28

99011-16G60-01F

—
Out of stock

5

MANUAL, OWNER'S | MODEL K3 E3,E33 DRAWING NOT SHOWN

99011-16G60-03A

1
Out of stock
