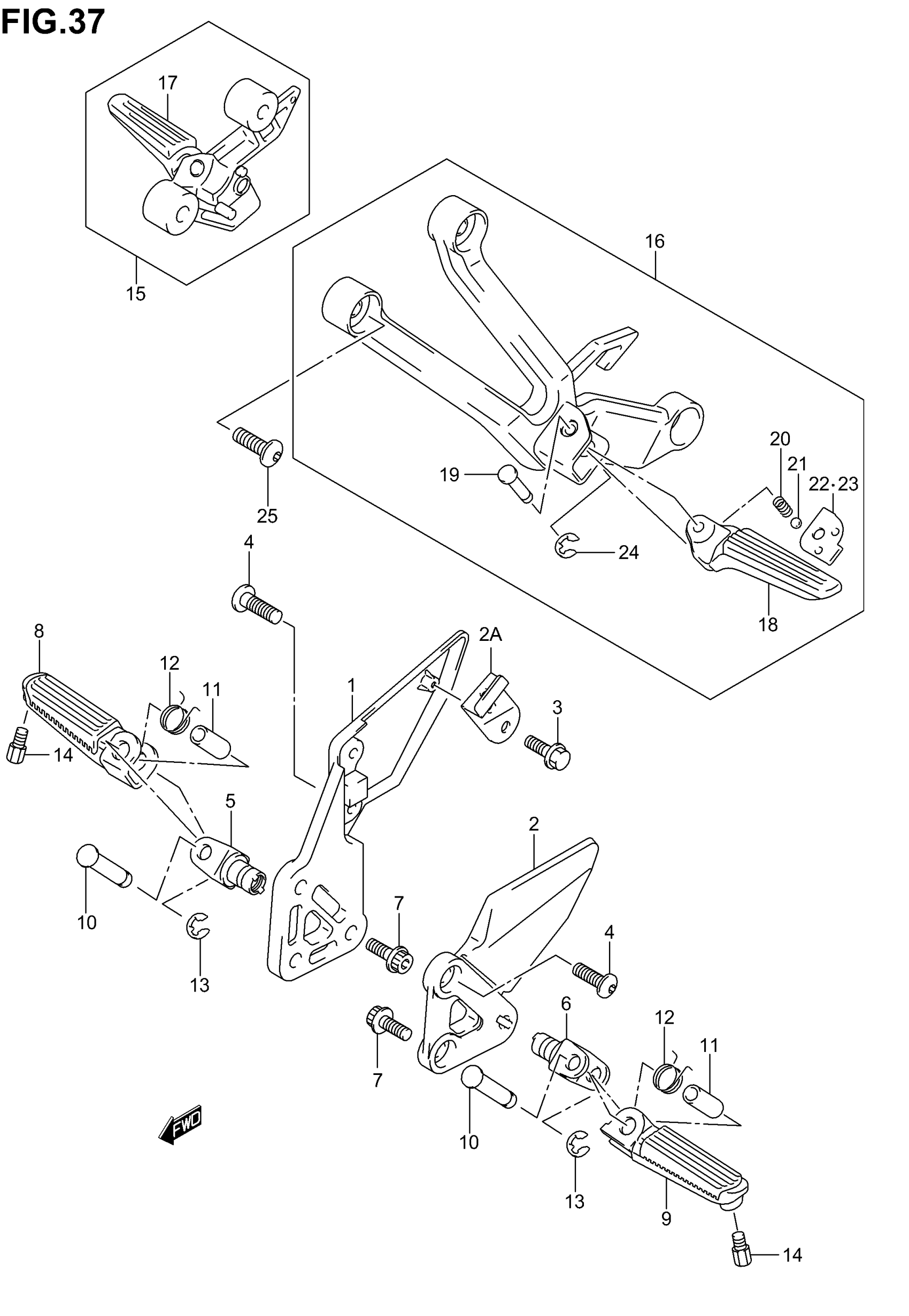

Suzuki SV1000 (2005) FOOTREST (SV1000SK3) Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43511-16G00

Unavailable

2

BRACKET, FRONT FOOTREST LH

43521-16G00

Unavailable

2A

PLATE, RH

43571-17G10

Unavailable

3

BOLT This part replaces 01550-06103.

01550-0610A

$2.01

4

BOLT, PANEL (8X18) This part replaces 09106-08118.

09106-08161

$4.85

5

HOLDER,FOOTREST This part replaces 43530-16G00.

43540-04K00

$30.93

6

HOLDER, FOOTREST LH

43540-16G00

$61.30

7

BOLT, HOLDER

09106-10064

$4.55

8

BAR, FRONT FOOTREST RH

43510-02F11

$67.70

9

BAR, FRONT FOOTREST LH

43520-02F11

$66.75

10

PIN

09208-08014

$1.41

11

SPACER

09180-08149

$5.28

12

SPRING

09448-18022

$3.53

13

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.46

14

.BOLT,BANK SENSOR

43576-07D01

$8.46

15

FOOTREST ASSY, PILLION RH

43600-16G10

Unavailable

16

FOOTREST ASSY, PILLION LH | Includes Item(s) 17 - 24

43700-16G10

Unavailable

17

BAR, PILLION RH

43610-35F00

$83.62

18

BAR, PILLION LH

43620-35F00

$83.62

19

PIN

87259-85510

$5.11

20

SPRING

09440-05005

$1.45

21

BALL

06111-07004

$1.25

22

PLATE, RH

43816-33E21

$11.76

23

PLATE, LH

43826-33E22

$11.76

24

E RING This part replaces 08332-11043.

08332-1104A

$1.41

25

BOLT, BRACKET

09106-08150

$3.22
