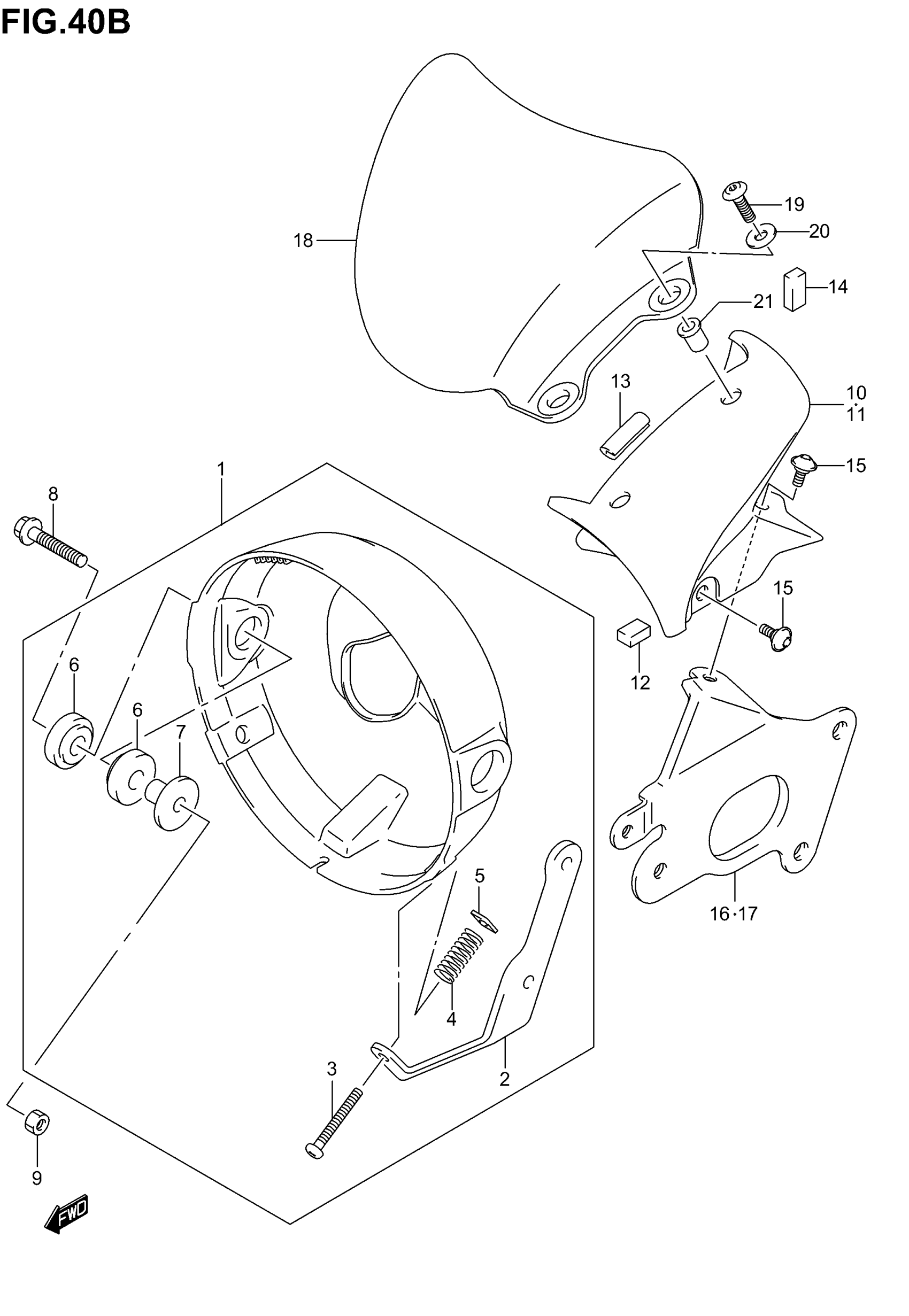

Suzuki SV1000 (2005) HEADLAMP HOUSING (SV1000K5) NOT FOR U.S. MARKET Diagram

#

Description
Price

1

HOUSING ASSY, HEADLAMP | Includes Item(s) 2 - 7

51800-16GA0

Unavailable

2

PLATE

51814-16GA0

Unavailable

3

SCREW, ADJUSTER

09125-05128

$2.73

4

SPRING, ADJUSTER

51837-25D00

$5.10

5

NUT, ADJUSTER

51825-25D00

$4.10

6

CUSHION This part replaces 09320-12065.

09320-12101

$2.98

7

SPACER

09180-08217

$3.37

8

BOLT

09103-08391

$2.50

9

NUT This part replaces 08310-00083.

08310-0008A

$1.84

10

COVER, HEADLAMP RH (SILVER)

51814-16G00-YD8

Unavailable

10

COVER, HEADLAMP RH (RED)

51814-16G00-YU7

Unavailable

10

COVER, HEADLAMP RH (BLACK)

51814-16G00-YAY

Unavailable

11

COVER, HEADLAMP LH (SILVER)

51815-16G00-YD8

Unavailable

11

COVER, HEADLAMP LH (RED)

51815-16G00-YU7

Unavailable

11

COVER, HEADLAMP LH (BLACK)

51815-16G00-YAY

Unavailable

12

CUSHION

92146-14G10

$5.67

13

MOLDING

94631-35F00

$7.40

14

TAPE

94632-22D00

Unavailable

15

SCREW

09139-05064

$2.57

16

PLATE, COVER RH

51850-16GB0

Unavailable

17

PLATE, COVER LH

51860-16GB0

Unavailable

18

COVER, METER

51816-16G00

$143.78

19

SCREW, COVER

09139-05032

$1.89

20

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

21

NUT

09159-05019

$7.14
