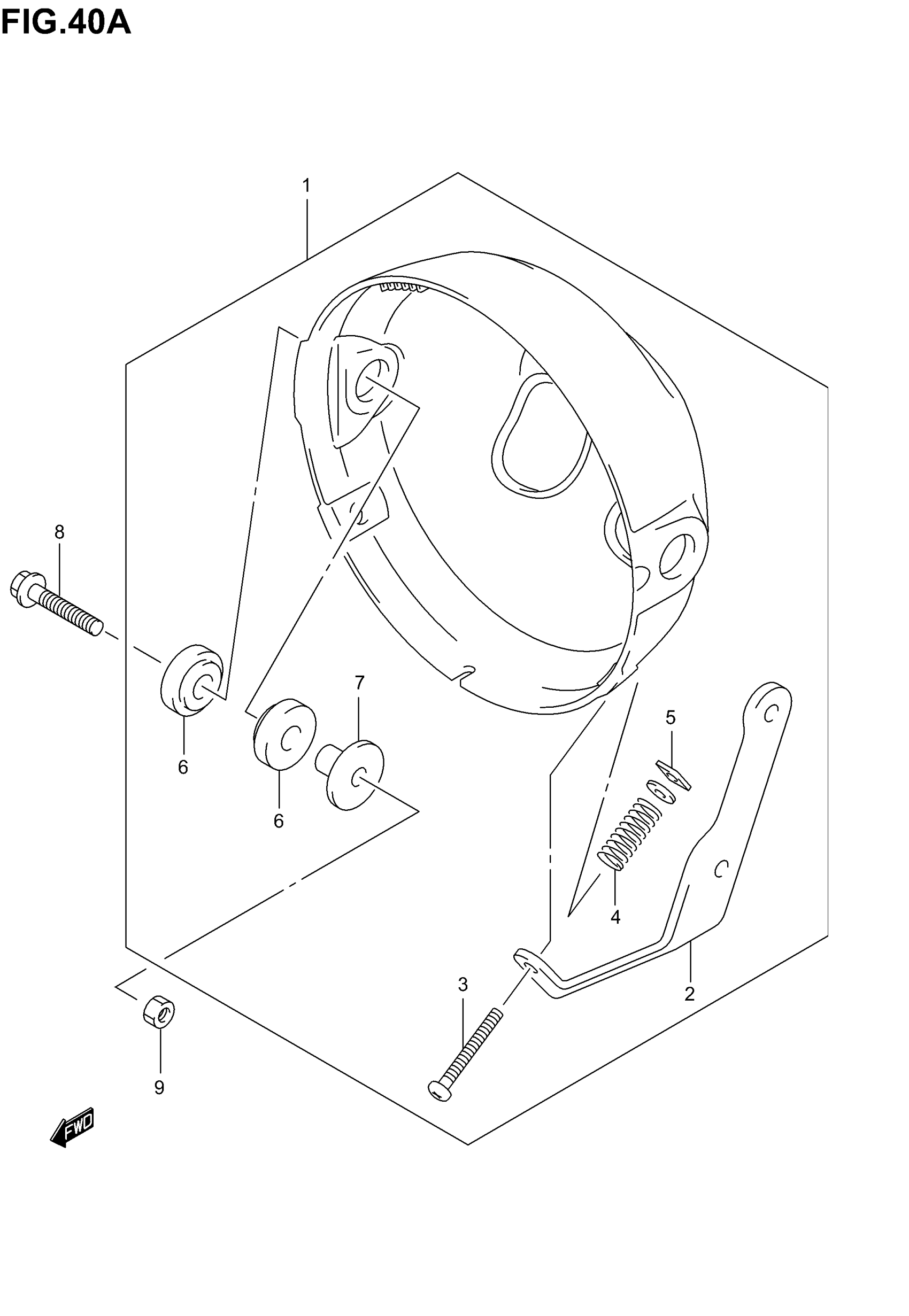

Suzuki SV1000 (2005) HEADLAMP HOUSING (SV1000K3) Diagram

#

Description
Price

1

HOUSING ASSY, HEADLAMP | Includes Item(s) 2 - 7

51800-16GA0

Unavailable

2

PLATE

51814-16GA0

Unavailable

3

SCREW, ADJUSTER

09125-05128

$2.73

4

SPRING, ADJUSTER

51837-25D00

$5.10

5

NUT, ADJUSTER

51825-25D00

$4.10

6

CUSHION This part replaces 09320-12065.

09320-12101

$2.98

7

SPACER

09180-08217

$3.37

8

BOLT

09103-08391

$2.50

9

NUT This part replaces 08310-00083.

08310-0008A

$1.84
