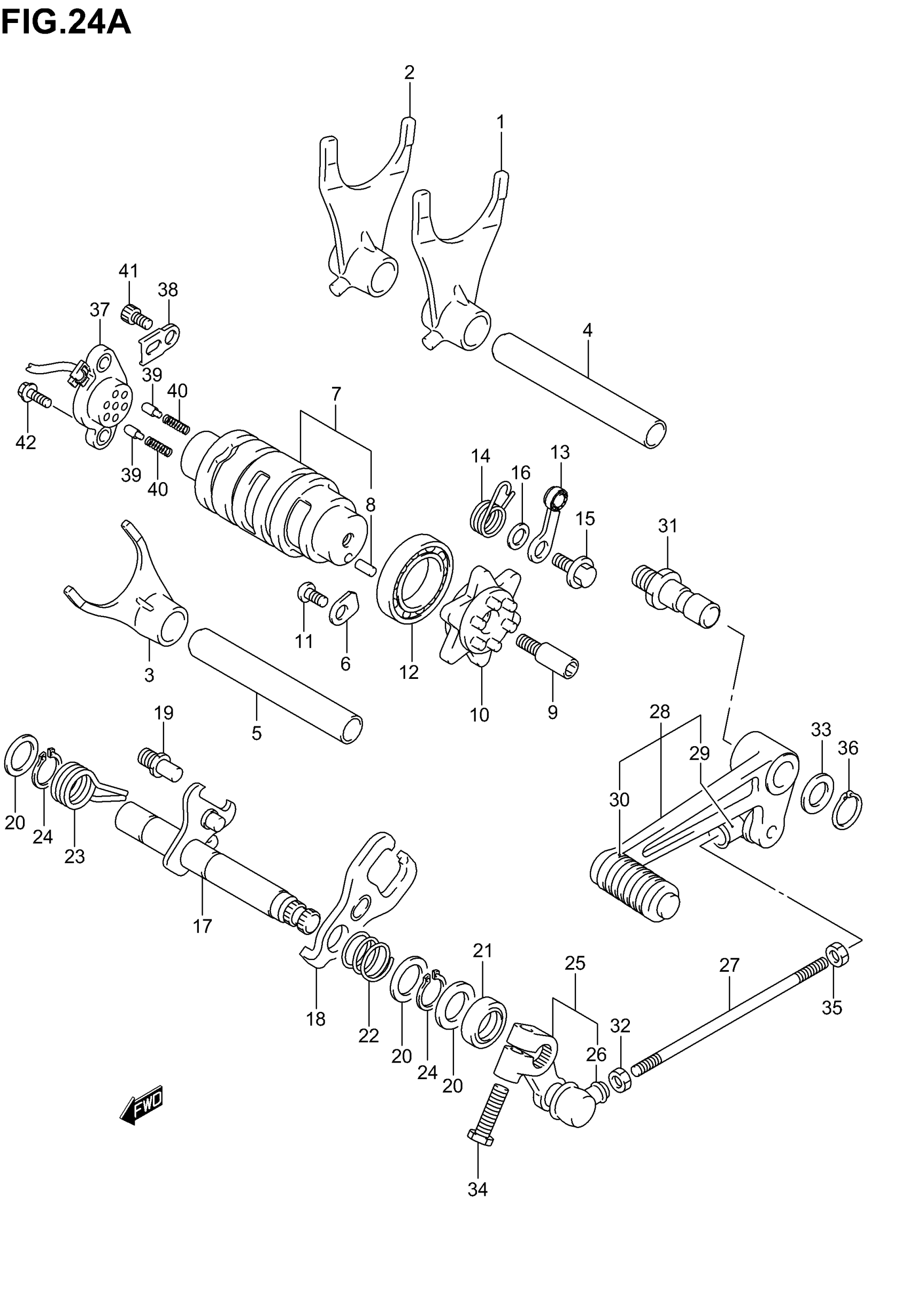

Suzuki SV1000 (2005) GEAR SHIFTING (SV1000K3) Diagram

#

Description
Price

1

FORK, GEAR SHIFT This part replaces 25211-17E01.

25211-17E02

$72.60

2

FORK, GEAR SHIFT NO.1

25211-35F00

$89.95

3

FORK, GEAR SHIFT NO.3

25231-35F00

$105.82

4

SHAFT, GEAR SHIFT FORK NO.2

25411-02F20

$19.55

5

SHAFT, GEAR SHIFT FORK NO.1

25411-02F20

$19.55

6

RETAINER, SHIFT CAM

24741-21A00

$2.81

7

CAM, GEAR SHIFT | Includes Item(s) 8

25310-02F10

Unavailable

8

PIN (4X13.8)

04221-04089

$1.49

9

STOPPER, SHIFT CAM

25312-12C00

$8.05

10

PLATE, GEAR SHIFT

25381-13E00

$56.02

11

SCREW, SHIFT CAM (6X12)

09125-06110

$2.12

12

BEARING

08113-69050

$35.66

13

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$18.03

14

SPRING. STOPPER ARM

25355-38F00

$4.88

15

BOLT (6X14.3)

09111-06041

$2.61

16

WASHER

08211-06141

$1.59

17

SHAFT,GEAR SHIFT This part replaces 25510-06G00.

25510-06G10

$111.58

18

PLATE, GEAR SHIFT

25512-06G00

$41.27

19

STOPPER, GEAR SHIFT

25671-01011

$4.48

20

WASHER, GEAR SHIFT RH | 14X22X1.0

09181-14167

$2.53

21

SEAL, SHIFT SHAFT OIL | 14X22X6.0

09283-14006

$6.70

22

SPRING. GEAR SHIFT PLATE

09440-17009

$1.71

23

SPRING, SHIFT SHAFT

09444-20001

$5.24

24

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.91

25

ARM,GEAR SHIFT | Includes Item(s) 26 This part replaces 25520-16G10.

25520-16G11

Unavailable

26

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

27

ROD, GEAR SHIFT LINK

25525-19F00

$10.23

28

LEVER ASSY,GEAR | Includes Item(s) 29 - 30 This part replaces 25600-42F10.

25600-42F11

$154.17

29

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

30

RUBBER

25652-20C00

$5.44

31

SHAFT, GEAR SHIFT LEVER This part replaces 25617-03F00.

25617-03F10

$12.33

32

NUT

09140-06025

$2.05

33

WASHER (12.5X20X1)

09160-12011

$1.54

34

BOLT, GEAR SHIFT ARM This part replaces 01500-06253.

01500-0625A

$1.78

35

.NUT

08310-00067

$2.13

36

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

37

BASE ASSY, GEAR SHIFT TERM

37730-06G00

$119.95

38

CLAMP, GEAR SHIFT

31497-45000

$1.92

39

CONTACT, GEAR SHIFT

09209-05011

$2.20

40

SPRING, GEAR SHIFT SW

09440-04010

$1.54

41

BOLT, PICK UP & CLAMP This part replaces 07130-05103.

07130-0510B

$2.62

42

BOLT, GEAR SHIFT SW This part replaces 07120-05163.

07120-0516B

$2.53
