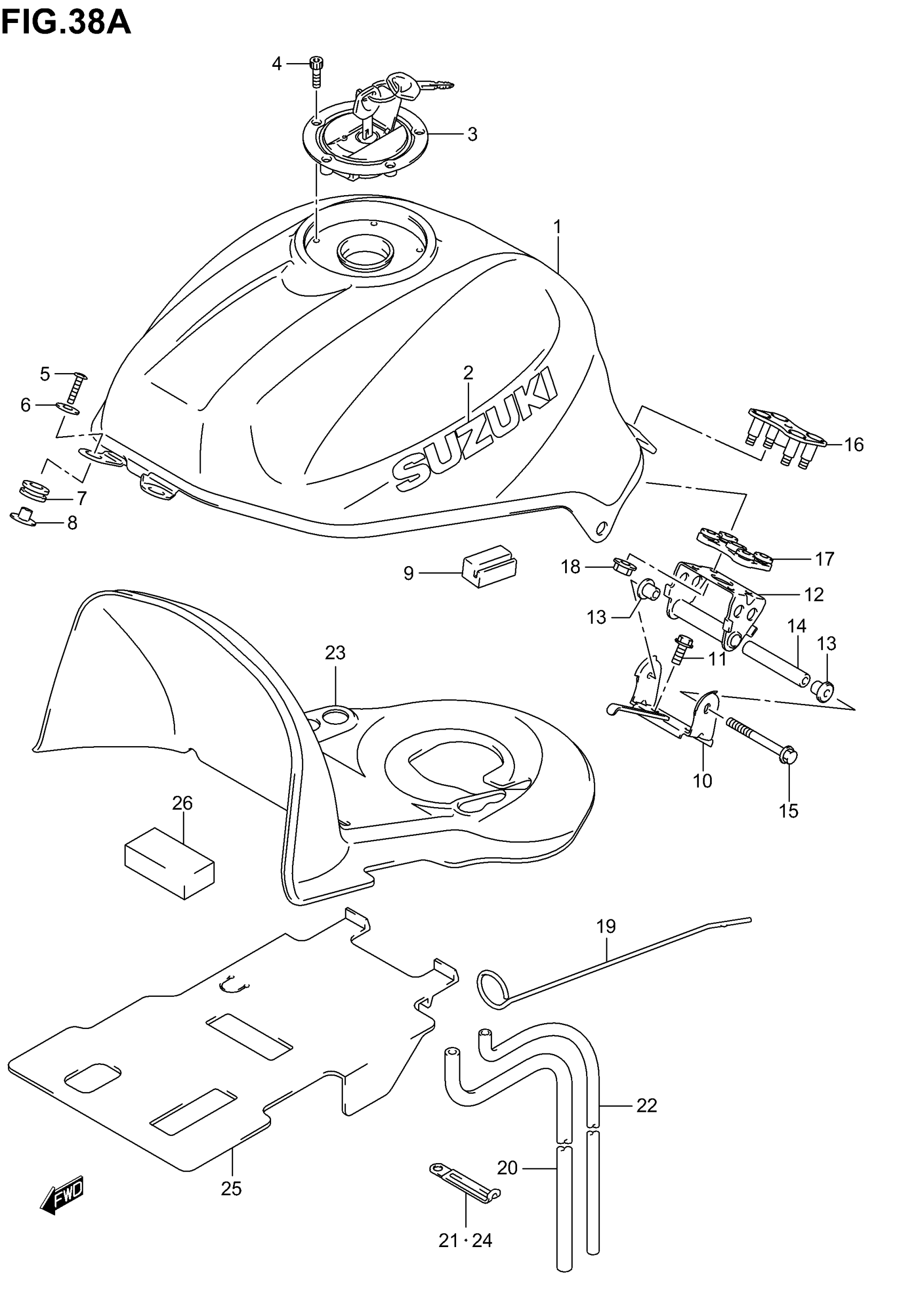

Suzuki SV1000 (2005) FUEL TANK (SV1000K3) Diagram

#

Description
Price

1

TANK ASSY, FUEL (SILVER) | E3,E28

44100-16G01-YD8

$1,244.48

1

TANK ASSY, FUEL (BLACK) | E3,E28

44100-16G01-33J

Unavailable

1

TANK ASSY, FUEL (BLUE) | E3,E28

44100-16G01-YC2

Unavailable

1

NO DESCRIPTION AVAILABLE | E33 This part replaces 44100-16G21-YD8.

44100-16G22-YD8

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

44100-16G21-33J

Unavailable

1

TANK ASSY,FUEL( | E33; Includes Item(s) 2 - 2 This part replaces 44100-16G21-YC2.

44100-16G22-YC2

Unavailable

2

EMBLEM (GRAY) | FOR YD8

68111-47C10-YU8

$22.97

2

.EMBLEM,SUZUKI (SILVER) | FOR 33J,YC2

68111-47C10-YD8

$22.97

3

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$118.21

3

CAP SET,FUEL TA | E33 This part replaces 44200-16860.

44200-16862

$242.83

4

BOLT

09106-05017

$2.83

5

SCREW, FRONT

09139-06029

$5.36

6

WASHER

09160-06054

$1.62

7

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

8

SPACER

44512-16G00

$7.44

9

CUSHION, SIDE

44541-16G00

$7.72

10

BRACKET,FUEL TA | E3,E28 This part replaces 44550-16G10.

44550-16G1V

Unavailable

10

BRACKET, REAR | E33

44550-16G20

Unavailable

11

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

12

BRACKET, CENTER

44530-16G10

Unavailable

13

CUSHION, BRACKET

44543-16G00

Unavailable

14

SPACER, JOINT

44561-35F00

$13.88

15

BOLT, JOINT

09103-06060

$2.50

16

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

17

CUSHION

44542-16G00

$13.77

18

NUT This part replaces 08319-31063.

08319-3106A

$2.03

19

STAY,FUEL TANK

44574-16G00

$26.72

20

HOSE,WATER DRAI This part replaces 44423-16G10.

44423-16G11

$10.25

21

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

22

HOSE,FUEL TANK This part replaces 44424-16G00.

44424-18G01

$10.62

23

SHIELD, FUEL TANK HEAT

44191-16G00

Unavailable

24

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

25

SHEET, HEAT RUBBER

44271-16G10

Unavailable

26

CUSHION, FUEL TANK

44545-16G00

$7.20
