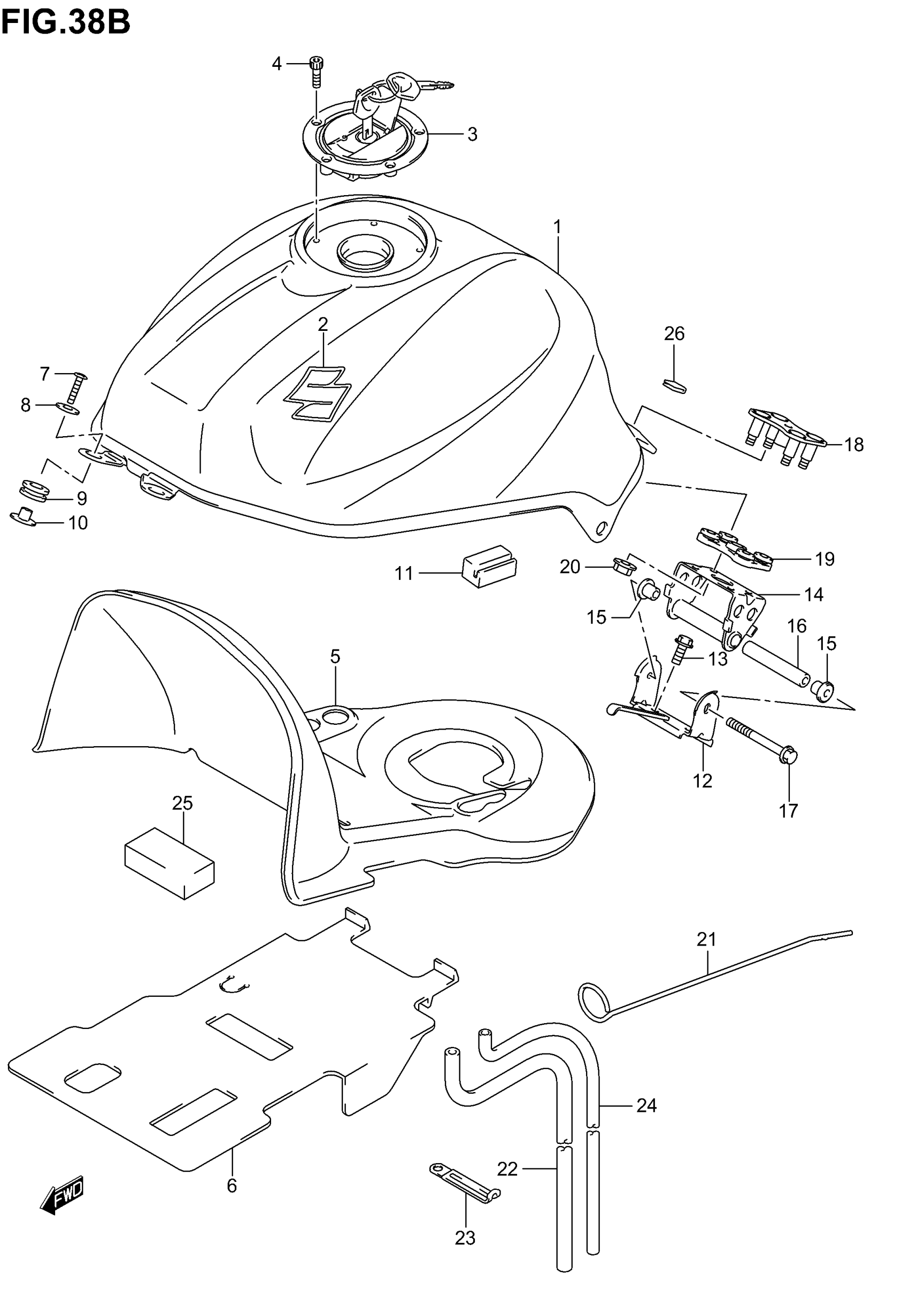

Suzuki SV1000 (2005) FUEL TANK (MODEL K4) Diagram

#

Description
Price

1

TANK ASSY, FUEL (SILVER) | E3,E28

44100-16G30-YD8

Unavailable

1

TANK ASSY, FUEL (BLUE) | E3,E28

44100-16G30-Y7H

Unavailable

1

TANK ASSY, FUEL (RED) | E3,E28

44100-16G30-YU7

Unavailable

1

TANK ASSY, FUEL (SILVER) | E33

44100-16G50-YD8

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33

44100-16G50-Y7H

Unavailable

1

TANK ASSY, FUEL (RED) | E33; Includes Item(s) 2 - 2

44100-16G50-YU7

Unavailable

2

EMBLEM,FUEL TAN | FOR YD8 This part replaces 68111-18G00-ASL.

68111-18G01-YGP

Unavailable

2

EMBLEM,FUEL TAN | FOR Y7H This part replaces 68111-18G00-M2S.

68111-18G01-0AT

$14.26

2

EMBLEM,FUEL TAN | FOR YU7 This part replaces 68111-18G00-APJ.

68111-18G01-0AT

$14.26

3

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$118.21

3

CAP SET,FUEL TA | E33 This part replaces 44200-16860.

44200-16862

$242.83

4

BOLT

09106-05017

$2.83

5

SHIELD, HEAT

44191-16G00

Unavailable

6

SHEET, HEAT RUBBER

44271-16G10

Unavailable

7

SCREW, FRONT

09139-06029

$5.36

8

WASHER

09160-06054

$1.62

9

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

10

SPACER

44512-16G00

$7.44

11

CUSHION, SIDE

44541-16G00

$7.72

12

BRACKET,FUEL TA | E3,E28 This part replaces 44550-16G10.

44550-16G1V

Unavailable

12

BRACKET, REAR | E33

44550-16G20

Unavailable

13

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

14

BRACKET, CENTER

44530-16G10

Unavailable

15

CUSHION, BRACKET

44543-16G00

Unavailable

16

SPACER, JOINT

44561-35F00

$13.88

17

BOLT, JOINT

09103-06060

$2.50

18

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

19

CUSHION

44542-16G00

$13.77

20

NUT This part replaces 08319-31063.

08319-3106A

$2.03

21

STAY,FUEL TANK

44574-16G00

$26.72

22

HOSE,WATER DRAI This part replaces 44423-16G10.

44423-16G11

$10.25

23

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

24

HOSE,FUEL TANK This part replaces 44424-16G00.

44424-18G01

$10.62

25

CUSHION

44545-16G00

$7.20

26

MOLDING This part replaces 68241-16G00.

68241-16G01

$5.33
