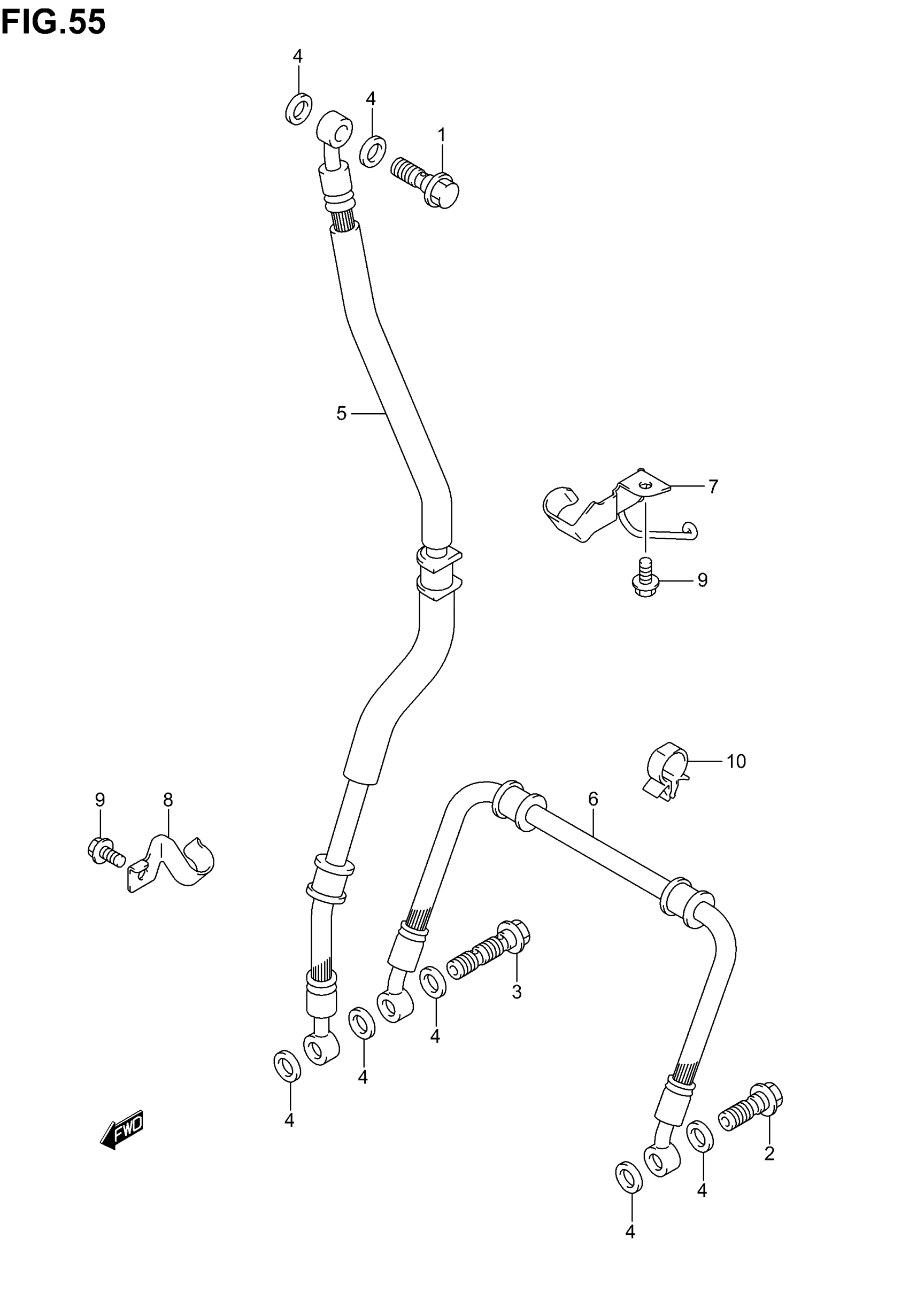

Suzuki SV1000 (2005) FRONT BRAKE HOSE Diagram

#

Description

Price

1

UNION This part replaces 09360-10042.

09360-10062

$6.43

2

UNION This part replaces 09360-10042.

09360-10062

$6.43

3

UNION This part replaces 09360-10044.

09360-10064

$6.43

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

HOSE, FRONT BRAKE NO.1 | SV1000SK3/SK4/SK5

59480-16G00

Unavailable

5

HOSE, FRONT BRAKE NO.1 | SV1000K3/K4/K5

59480-16G10

Unavailable

6

HOSE, FRONT BRAKE NO.2

59240-16G00

Unavailable

7

CLAMP, BRAKE HOSE

59260-16G00

Unavailable

8

CLAMP, BRAKE HOSE NO.2

59268-16G00

Unavailable

9

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

10

CLAMP, BRAKE HOSE NO.2

09403-14304

$3.21
