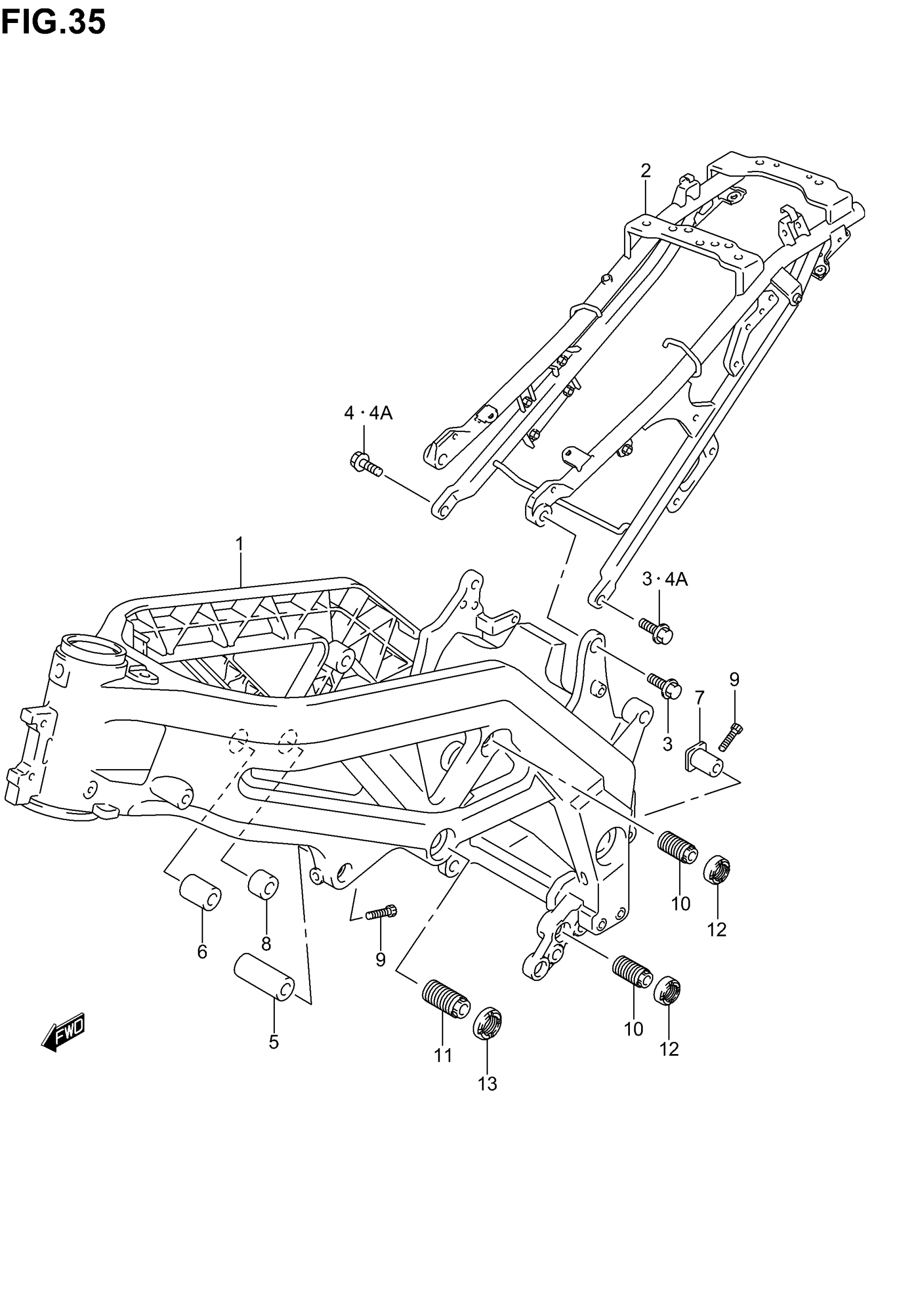

Suzuki SV1000 (2005) FRAME Diagram

#

Description
Price

1

FRAME (SILVER) | SV1000SK3

41100-16G00-YBM

Unavailable

1

FRAME (SILVER) | SV1000K3

41100-16G10-YBM

Unavailable

1

FRAME (SILVER) | SV1000SK4

41100-16G20-YBM

Unavailable

1

FRAME (BLACK) | SV1000SK5

41100-16G20-YAP

Unavailable

2

RAIL, SEAT | SV1000SK3

41200-16G00

Unavailable

2

RAIL, SEAT | SV1000K3/SK4

41200-16G10

Unavailable

2

RAIL, SEAT (BLACK) | SV1000SK5 This part replaces 41200-16G30-YAP.

41200-16G31-YAP

Unavailable

3

BOLT, SEAT RAIL | SV1000SK3

09103-10296

$6.44

4

BOLT,SEAT RAIL | SV1000SK3 This part replaces 41233-16G00.

41233-16G0V

Unavailable

4A

BOLT,SEAT RAIL | SV1000K3/SK4 This part replaces 41233-35F00.

41233-35F0V

$10.65

4A

BOLT,SEAT RAIL | SV1000SK5 This part replaces 41233-18G00.

41233-18G20

$8.65

5

SPACER, ENGINE HEAD FRONT LH

41198-02F00

Unavailable

6

SPACER, ENGINE HEAD REAR RH

41941-02F00

Unavailable

7

SPACER, CRANKCASE UPPER

41941-19F01

$40.33

8

SPACER, HEAD CENTER RH

41942-16G00

Unavailable

9

BOLT, SPACER This part replaces 09106-08149.

09106-08170

$3.49

10

BOLT, CRANK CASE ADJUST LWR This part replaces 41921-16G00.

41921-16G01

$23.47

11

BOLT, CRANK CASE ADJUST CTR

41923-16G00

$31.28

12

NUT, REAR HEAD ADJUST

41922-33E00

$22.52

13

NUT,CRANK CASE ADJUST CTR This part replaces 41922-19F00.

41922-19F20

$18.90
