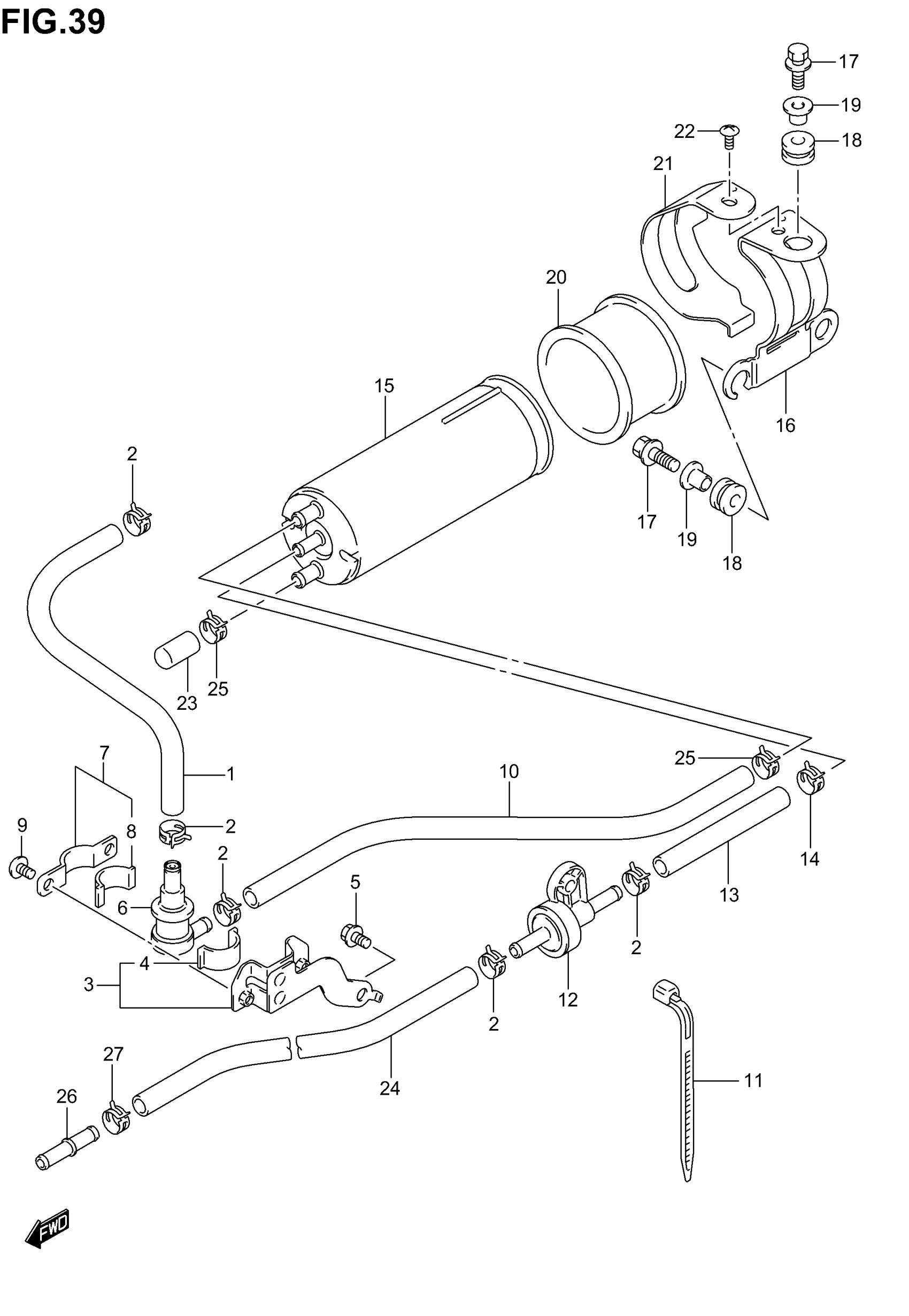

Suzuki SV1000 (2005) EVAPO SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE

44434-16G00

Unavailable

2

CLIP

09401-11413

$2.26

3

PLATE, BREATHER VALVE | SV1000SK3/SK4

44890-16G10

Unavailable

3

PLATE, BREATHER VALVE | SV1000K3

44890-16G00

Unavailable

3

PLATE, BREATHER VALVE | MODEL K5; Includes Item(s) 4

44890-16G10

Unavailable

4

CUSHION (10X30X2)

44894-24A00

$1.72

5

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

6

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

7

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 8

44892-24A00

$4.52

8

CUSHION (10X30X2)

44894-24A00

$1.72

9

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

10

HOSE, BREATHER VALVE | L:600!230

09355-54116-600

$12.06

11

CLAMP

09407-18402

$2.19

12

VALVE, 2 WAY

44240-24F00

$64.68

13

HOSE, VALVE & CANISTER | L:600!80

09355-54116-600

$12.06

14

CLIP

09401-11413

$2.26

15

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

16

BRACKET, CANISTER

44881-16G00

Unavailable

17

BOLT, BRACKET

09116-06025

$2.44

18

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

19

SPACER

09169-06062

$2.50

20

CUSHION CANISTER

44883-26E00

Unavailable

21

PLATE, CANISTER

44882-16G00

Unavailable

22

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

23

CAP

09251-07003

$2.53

24

HOSE, PURGE | L:760!540

09359-54112-760

Unavailable

25

CLIP

09401-12404

$2.34

26

JOINT

09367-06009

Unavailable

27

CLIP

09401-11413

$2.26
