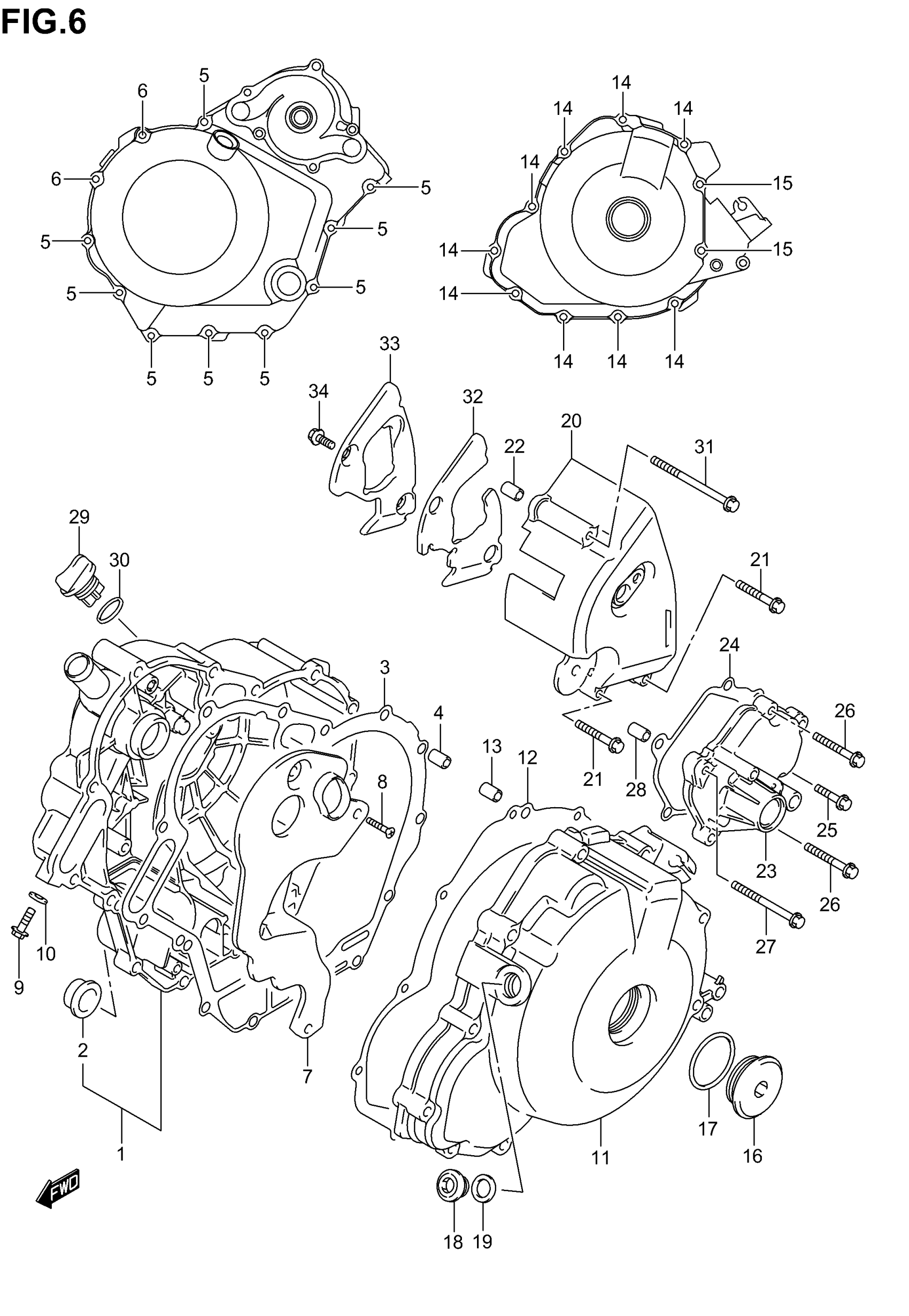

Suzuki SV1000 (2005) CRANKCASE COVER Diagram

COVER COMP,CLUT | MODEL K3 This part replaces 11340-06G10.

11340-06G21

$351.57

COVER COMP,CLUT | MODEL K4/K5; Includes Item(s) 2 This part replaces 11340-06G20.

11340-06G21

$351.57

LENS, OIL LEVEL CHECK

11971-33210

$18.20

.GASKET, CLUTCH COVER | MODEL K3 This part replaces 11482-06G00.

11482-06G10

$19.35

GASKET, CLUTCH COVER | MODEL K4/K5

11482-06G10

$19.35

PIN

04211-09149

$1.65

BOLT (L:30)

09103-06213

$2.47

BOLT (L:75)

09103-06257

$3.14

SEPARATOR,OIL

11342-06G00

$57.33

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

GASKET, CLUTCH COVER WATER DRAIN | MODEL K3

09168-06004

$1.49

GASKET, CLUTCH COVER WATER DRAIN | MODEL K4/K5

09168-06026

$3.10

COVER,MAGNETO This part replaces 11351-02F51.

11351-02F52

$385.53

GASKET, MAGNETO COVER

11483-02F10

$17.54

PIN

04211-09149

$1.65

BOLT (L:35)

09103-06214

$2.48

BOLT (L:70)

09103-06225

$3.16

PLUG, CRANKSHAFT HOLE

09259-36016-20H

$13.80

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

GASKET

09168-14002

$2.26

COVER, ENGINE SPROCKET

11361-16G00

Unavailable

BOLT

09103-06214

$2.48

PIN

04211-09149

$1.65

COVER,GEAR SHIFT

11381-06G00

$99.63

GASKET

11485-02F10

$4.99

BOLT

09103-06126

$3.78

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

PIN

04211-09149

$1.65

PLUG, OIL FILLER | MODEL K3

11971-12C51

$6.46

PLUG,ENGINE OIL FILLER | MODEL K4/K5

11971-25D00

$5.11

O RING

09280-17003

$1.65

BOLT

09103-06263

$3.78

DAMPER, ENG SPROCKET COVER | MODEL K5

11362-16G00

Unavailable

PLATE, ENG SPROCKET COVER | MODEL K5

11363-16G00

Unavailable

BOLT (6X12) | MODEL K5

09103-06172

$1.68
