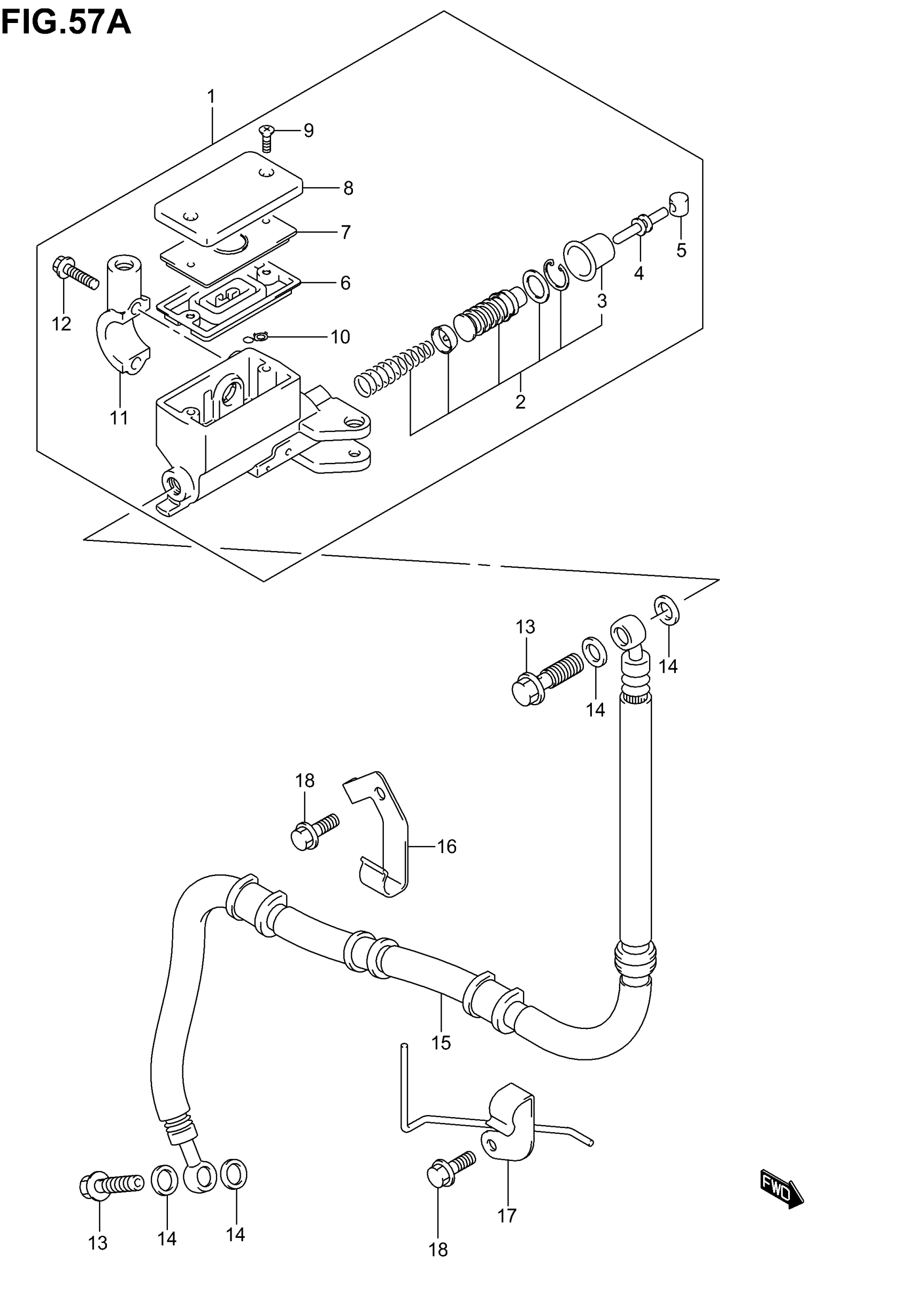

Suzuki SV1000 (2005) CLUTCH MASTER CYLINDER (SV1000K3) Diagram

#

Description
Price

1

CYLINDER ASSY,C | Includes Item(s) 2 - 12 This part replaces 59800-32F00.

59800-32F02

$330.85

2

PISTON/CUP SET

59800-08810

$39.48

3

BOOT

59666-44300

$5.80

4

PUSH ROD This part replaces 59871-38A00.

59871-32F00

$5.84

5

BUSH

59892-08A00

$5.05

6

DIAPHRAGM

59667-49460

$9.78

7

PLATE, DIAPHRAGM

59668-41C00

$9.32

8

CAP

59669-10G00

$38.30

9

SCREW

69689-49300

$1.91

10

PROTECTOR

59664-32F00

$11.68

11

HOLDER

59671-32F00

$19.52

12

BOLT (6X22)

59675-02FA0

$3.82

13

UNION This part replaces 09360-10042.

09360-10062

$6.43

14

WASHER (10X15X1.5)

09161-10009

$1.84

15

HOSE, CLUTCH

59910-16G10

Unavailable

16

CLAMP, CLUTCH HOSE NO.2

59921-16G00

Unavailable

17

CLAMP, CLUTCH HOSE

59920-16G00

Unavailable

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
