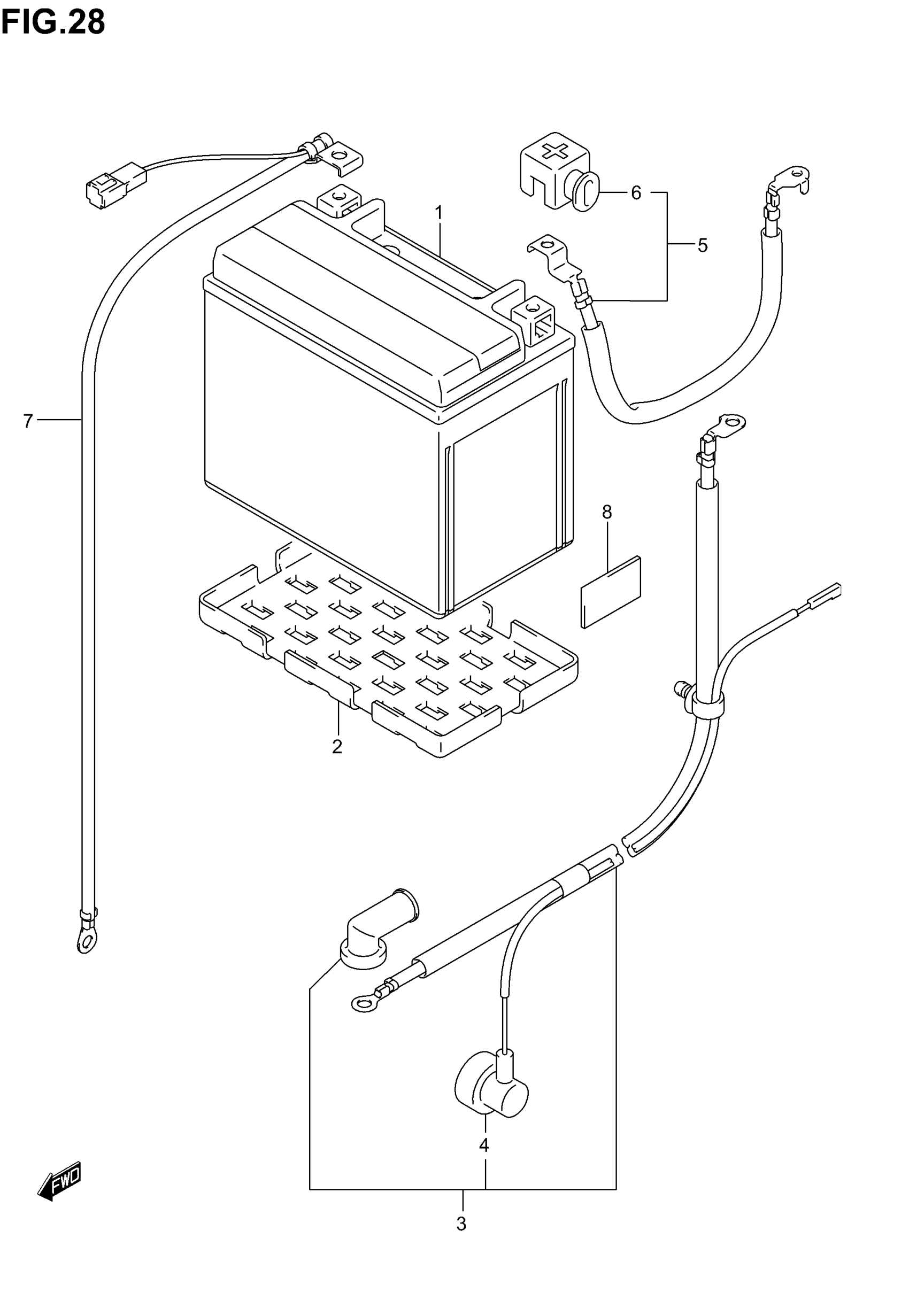

Suzuki SV1000 (2005) BATTERY Diagram

#

Description
Price

1

BATTERY ASSY | YTX14-BS,12V12AH This part replaces 33610-26D10.

33610-38F02

$125.32

2

PROTECTOR,BATTERY

33652-16G00

$11.95

3

WIRE, STARTER MOTOR LEAD | Includes Item(s) 4

33810-16G00

Unavailable

4

CAP, OIL PRESSURE

36618-43410

$2.90

5

WIRE,BATTERY PL | SV1000K3 This part replaces 33820-16G10.

33820-16G11

$25.78

5

WIRE, BATTERY PLUG LEAD | SV1000SK3

33820-16G00

Unavailable

5

WIRE,BATTERY PL | SV1000SK4/SK5; Includes Item(s) 6 This part replaces 33820-16G10.

33820-16G11

$25.78

6

CAP, BATTERY PLUG

33624-16G00

$5.78

7

WIRE, BATTERY MINUS | SV1000K3

33860-16G10

Unavailable

7

WIRE, BATTERY MINUS | SV1000SK3

33860-16G00

Unavailable

7

WIRE, BATTERY MINUS | SV1000SK4/SK5

33860-16G10

Unavailable

8

PROTECTOR (30X50X3.0) | SV1000SK3

33652-17G00

Unavailable
