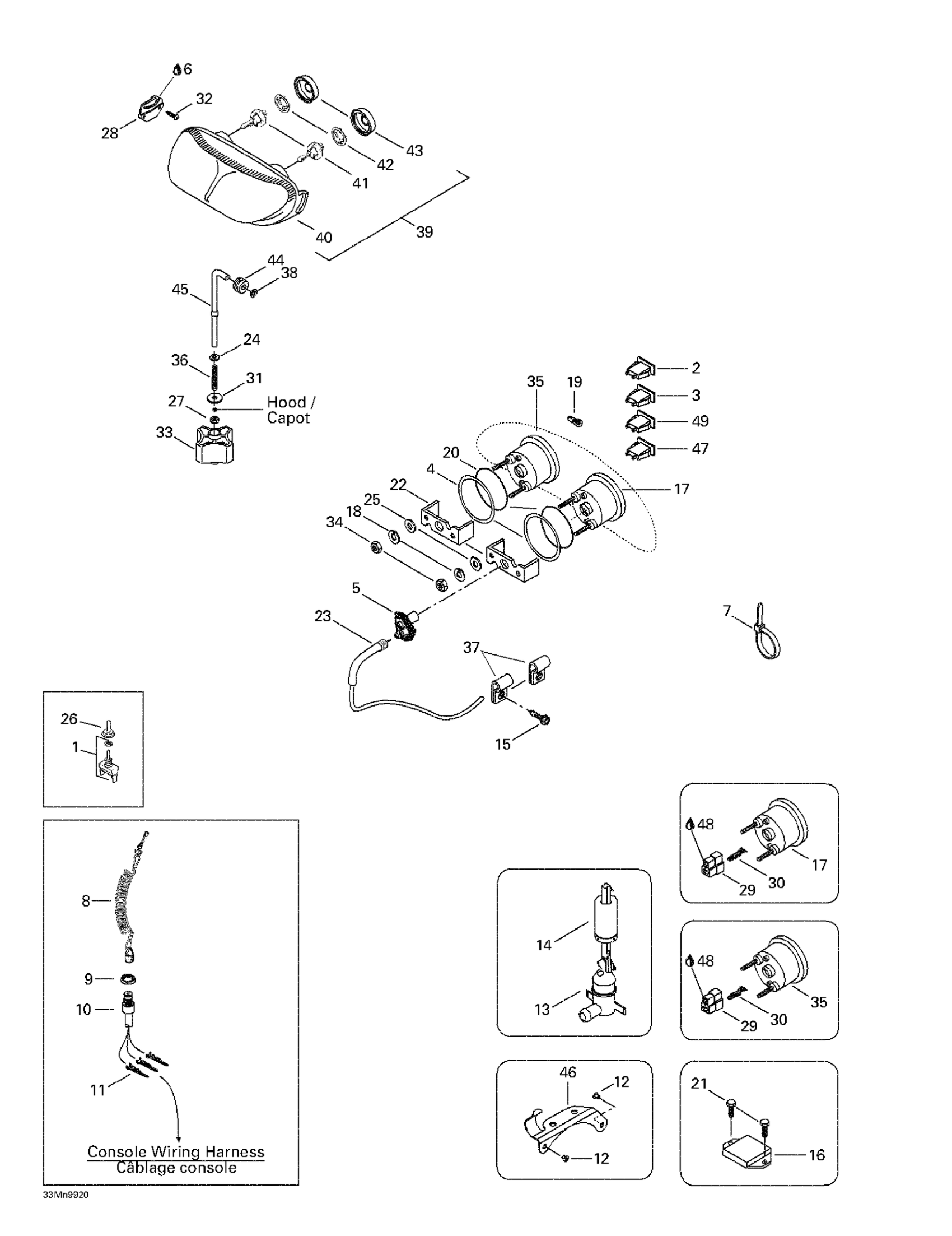

Ski-Doo Suumit 700, 1999 10- Electrical System Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$35.99

2

Pilot Lamp (Red)

410109500

Unavailable

3

Pilot Lamp (Blue)

410109600

Unavailable

4

Washer

517258500

Unavailable

5

Drive Angle | Formula S.

572022300

Unavailable

6

Grease Tube Lmz, 400 G

413707500

Unavailable

7

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 180 mm

414115200

$0.11

Tie-Rap 173 mm

293750009

$1.04

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

8

DESS

515178284

$84.99

9

Safety Nut (DESS Switch)

278002963

$3.28

10

DESS SWITCH - Call your local BRP dealership

515175145

$71.99

11

Male Terminal

515175232

$1.58

12

Pop Rivet 3/16"

390402300

$0.75

13

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

14

Float

414681900

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Voltage Regulator

515175216

Unavailable

17

Speedometer (MH)

415096400

Unavailable

18

Lock Washer

414806700

Unavailable

19

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

20

O-Ring

414807100

Unavailable

21

Screw M6 x 16 | Formula Deluxe 380.

732600021

Unavailable

22

Case Holder

414806500

Unavailable

23

Speedometer Cable

415101500

Unavailable

24

Flat Washer 6 mm

234061410

$1.36

25

Flat Washer

517225900

$0.18

26

Switch Cover

515175281

$15.99

27

Elastic Stop Nut M6

232561414

$0.55

28

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

29

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Headlamp Screw

732601315

Unavailable

33

Handle - Call your local BRP dealership

515175548

Unavailable

34

Nut

414806900

Unavailable

35

Tachometer

415096500

Unavailable

36

SPRING - Call your local BRP dealership

415100600

Unavailable

37

Open Clamp

414176000

$1.99

38

Push Nut

732610072

$2.19

39

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

42

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

43

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

44

Grommet - Call your local BRP dealership

415100800

Unavailable

45

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

46

Cable Support

515175254

Unavailable

47

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

48

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

49

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable
