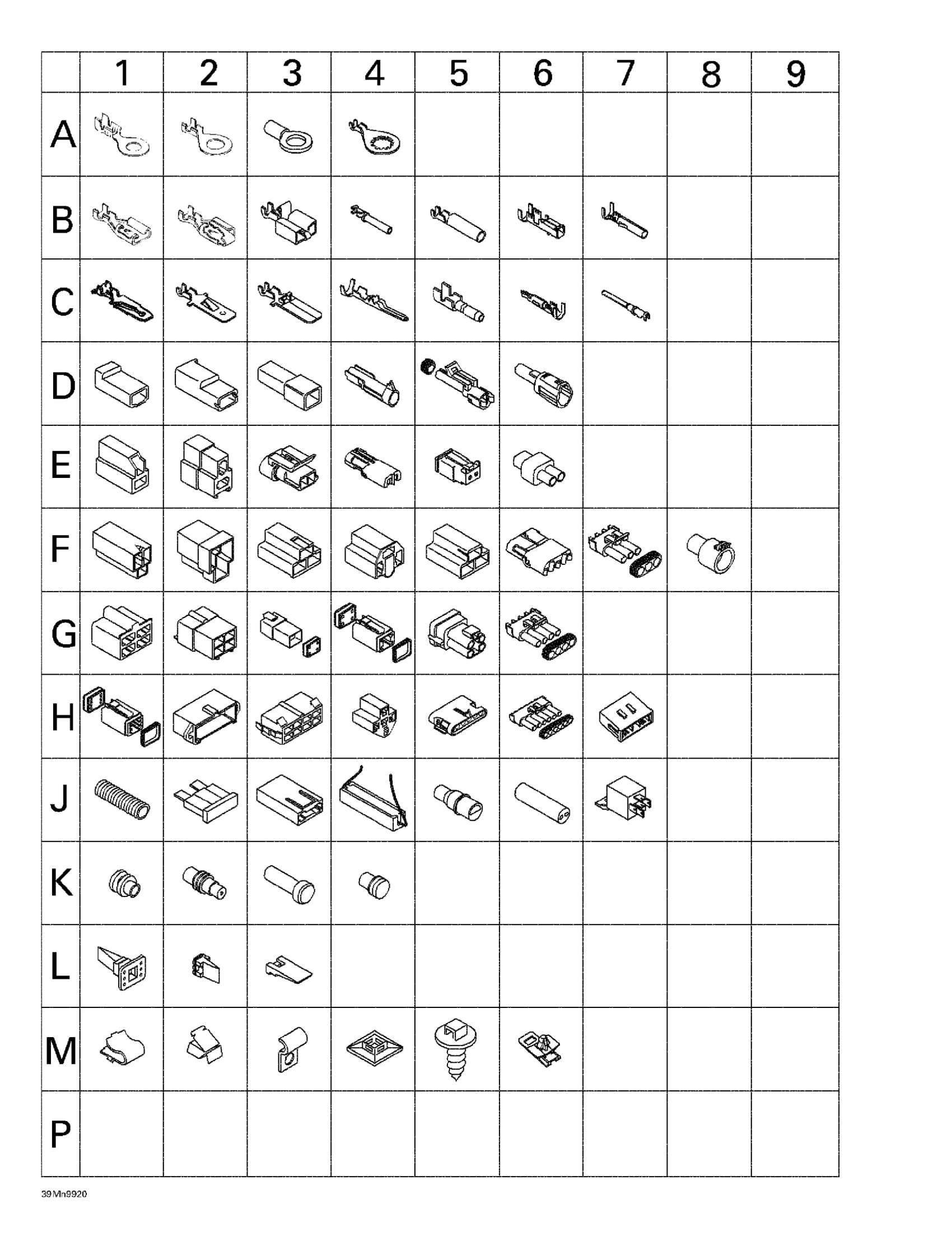

Ski-Doo Suumit 700, 1999 10- Electrical Accessories Diagram

#

Description
Price

A1

Open Barrel

409012500

Unavailable

A1

Open Barrel Terminal

278001392

$4.79

A2

Open Barrel | (16/14 gauge-5/16" stud)

561502700

Unavailable

A2

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

A3

Open Barrel

278000992

$2.21

A4

Terminal Ring

561502800

Unavailable

B1

Female Terminal

561503100

$2.41

B1

Female Terminal

561503100

$2.41

B1

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

B2

FEMALE TERMINAL - Call your local BRP dealership

515175313

Unavailable

B2

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

B2

Female Terminal(Packard)

409011400

Unavailable

B2

FEMALE TERMINAL - Call your local BRP dealership

409011500

Unavailable

B2

Female Terminal PACKARD

561503200

Unavailable

B2

Female Terminal (16/14 gauge)

561503800

Unavailable

B3

Female Terminal

409010100

$5.61

B3

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

B4

Female Terminal

278000632

$2.09

B5

Female Terminal | DS 650 X

278001009

$3.19

B6

Female Terminal

278001114

$3.19

B6

Female Terminal

278001014

$3.28

B7

Female Terminal

278000223

$3.19

C1

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

C1

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

C1

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

C1

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

C2

Male Terminal

409201000

Unavailable

C3

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

C3

Male Terminal

409010900

Unavailable

C4

Male Terminal

409011300

$5.93

C4

Male Terminal

515175232

$1.58

C4

Male terminal

515175234

Unavailable

C5

Male Terminal

278000230

$4.39

C6

Male Terminal | XT Models

278000222

$3.19

C7

Male Terminal

278000631

$4.39

D1

Female Terminal Housing (1 circuit)

409204800

Unavailable

D2

Female Terminal Housing, 1 Circuit

409010400

$7.62

D3

Male Connector Housing (Single)

409204700

Unavailable

D4

Female Housing, 1 Circuit

278000161

$9.59

D5

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

D6

Male Connector Housing (1 Circuit)

409208800

Unavailable

E1

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

E2

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

E3

Male Connector, 2 Circuits

278001113

$16.86

E3

Male Connector, 2 Circuits

278000220

$15.49

E4

Female Housing, 2 Circuits

278000217

$9.59

E5

Female Connector, 2 Circuits

409207300

$9.85

E6

Female Connector Housing (2 Circuits)

409206500

Unavailable

F1

Female Housing

409204300

Unavailable

F2

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

F3

Female Terminal Housing (3 circuits)

409008500

Unavailable

F4

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

F5

Male Terminal Housing (3 circuits)

409008600

Unavailable

F6

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

F6

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

F7

Male Housing, 3 Circuits

278000273

$9.59

F8

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

G1

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

G2

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

G3

Female Housing, 4 Circuits

278000635

$16.49

G4

Male Connector, 4 Circuits | CE

278000739

$19.49

G5

Male Terminal Housing (4 circuits)

409207700

Unavailable

G6

Male Housing, 4 Circuits

278000395

$15.99

H1

Male Terminal Housing, 6 Circuits

710001539

$19.99

H1

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

H2

Male Connector Housing (8)

572151500

Unavailable

H3

Female Connector Housing (8)

572151200

Unavailable

H4

Female Housing, 5 Circuits

409209900

$9.59

H5

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

H6

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

H7

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

J1

Was 409901600 Tubing 19mm

219704398

$95.99

J1

Was 409901700 Tubing (9 mm)

219704399

$84.99

J1

Was 409901800 Tubing (13 mm)

219704400

$14.49

J1

Tubing 10 MM 1000MM Long

219704407

$2.79

J1

Tubing | Formula S.

410112800

Unavailable

J1

Tubing (Meter)

410112900

Unavailable

J1

Tubing 16 Mm 1000Mm Long

219704408

$7.49

J1

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

J1

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

J2

Fuse, 30 Amperes

410917200

$3.28

J3

Fuse Holder

409004000

$8.09

J4

Resistance

515175241

$17.99

J4

Resistance

515175241

$17.99

J5

Insulated Sheath

278001008

$3.28

J6

Insulated Sheath

278001007

$3.58

J7

Relay | DS 650 X

710010053

$23.49

K1

SEAL - Call your local BRP dealership

409208500

Unavailable

K1

Seal

409012300

$4.54

K1

Wire Seal

278000218

$4.39

K1

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

K1

Seal

409208300

Unavailable

K1

Wire Seal

278001013

$3.28

K2

Wire Seal

278000216

$3.19

K3

Sealing Cap

293000052

$3.19

K4

SEAL - Call your local BRP dealership

409013900

Unavailable

L1

Female Wedge, 4 Circuits

278000636

$4.39

L1

Female Lock, 6 Circuits

278000735

$3.19

L2

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

L2

Male Lock, 4 Circuits | CE

278000738

$3.09

L3

Male Lock

409013100

Unavailable

L3

Male Lock, 3 Circuits

409207600

$3.19

M1

CLIP - Call your local BRP dealership | Europe Models

409205600

Unavailable

M2

Clip

414227300

$1.67

M3

CLIP - Call your local BRP dealership

415018200

Unavailable

M4

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

M5

Mount Dart

293730040

$1.04

M6

Housing Support

515175283

$9.19
