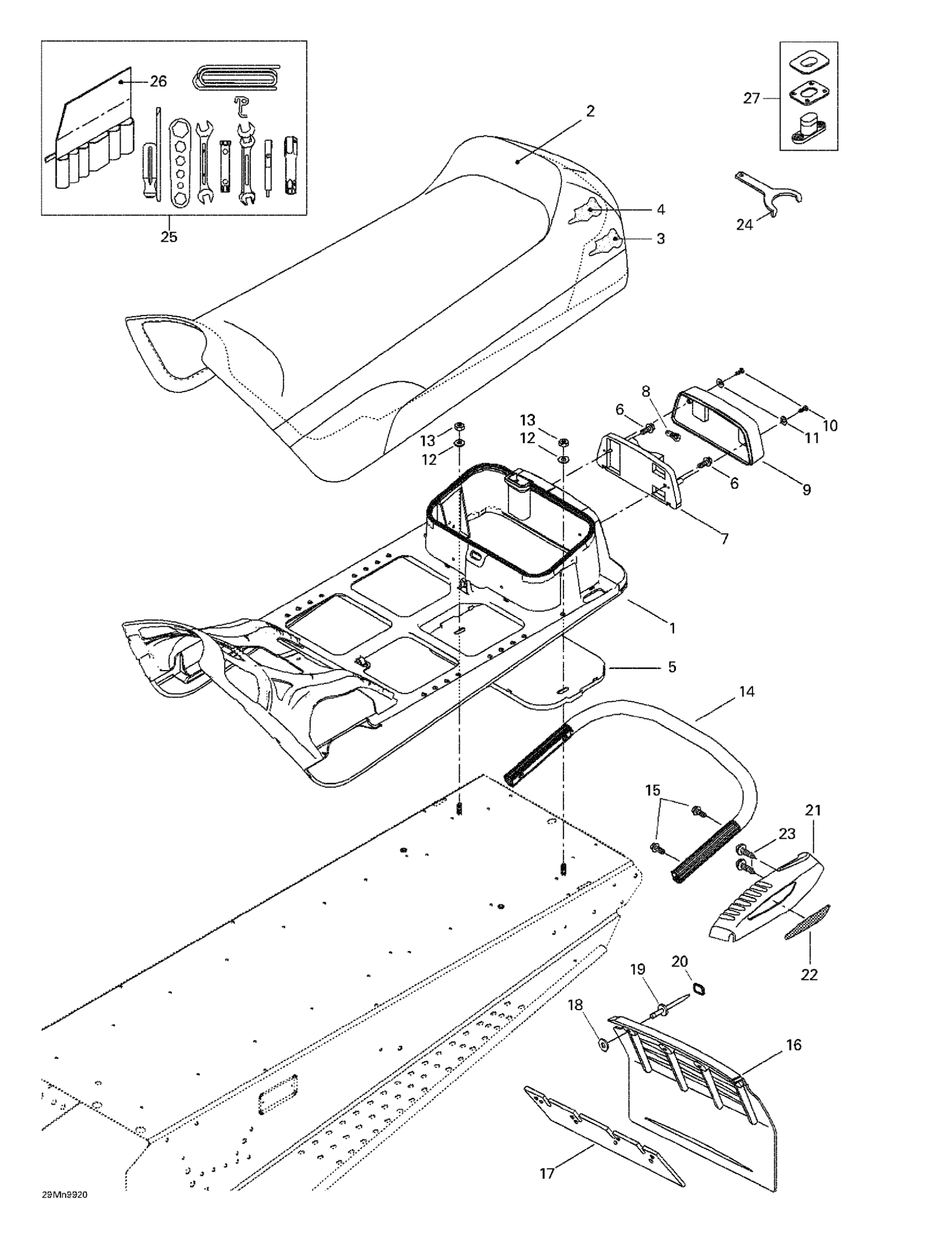

Ski-Doo Suumit 700, 1999 09- Seat And Accessories Diagram

#

Description
Price

1

Seat Base

572107600

Unavailable

2

Seat Cover

510003636

Unavailable

3

Seat Foam

510003608

Unavailable

4

Seat Foam

510003500

Unavailable

5

UNDER CHEST - Call your local BRP dealership

572107601

Unavailable

6

Hex. Screw #10 X 1"

732603006

Unavailable

7

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

8

Bulb

520000758

$9.10

9

Lens

414513700

$28.99

10

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

11

Washer - Call your local BRP dealership

414516400

Unavailable

12

Flat Washer 8 mm

234082410

$1.47

13

Hex. Elastic Stop Nut M8

232581414

$0.56

14

REAR BUMPER - Call your local BRP dealership

518318200

Unavailable

15

Hex. Flange Screw M8 X 20

207682044

$1.15

16

SNOW GUARD - Call your local BRP dealership

572092100

Unavailable

17

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

18

Flat Washer

517225900

$0.18

19

Pop Rivet 3/16"

293150100

$1.09

20

Cap

415073300

Unavailable

21

RH Moulding | RENEGADE

572097300

Unavailable

LH Moulding | RENEGADE

572097400

Unavailable

22

RH Reflector, Red

516000237

Unavailable

LH Reflector, Red

516000238

Unavailable

23

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

24

Adjustment Wrench

529000035

$2.09

25

Tool Kit | Includes 12 to 13

529035596

$27.99

26

Tool Bag

520000047

Unavailable

27

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable
