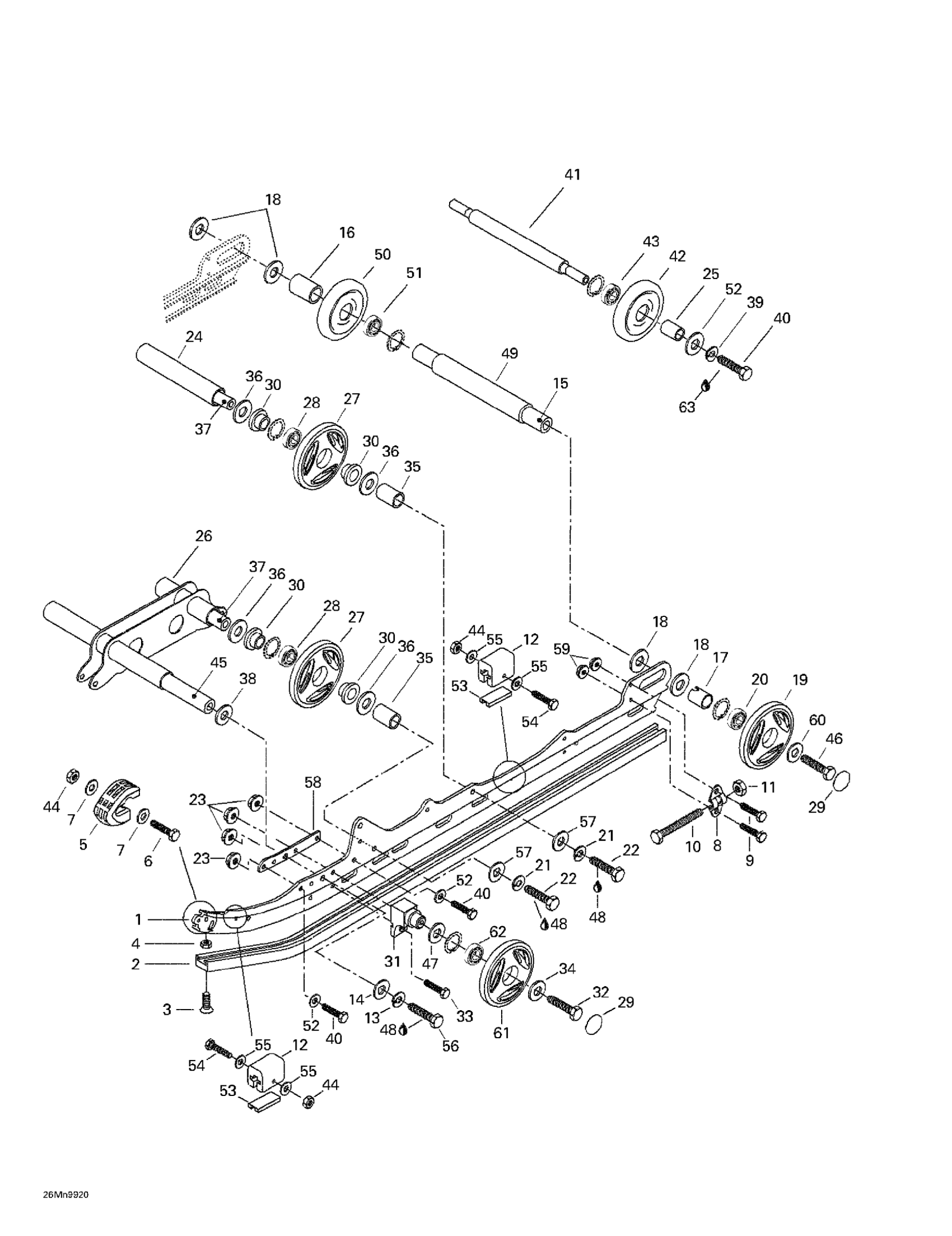

Ski-Doo Suumit 700, 1999 08- Rear Suspension Diagram

#

Description
Price

1

Runner

503189199

Unavailable

2

RUNNER SHOE - Call your local BRP dealership

560103500

Unavailable

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

$0.48

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

10

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.69

12

Rubber Stopper

570063000

Unavailable

13

Lock Washer 12 mm

224721218

Unavailable

14

Flat Washer 12 mm

234021410

$0.72

15

Rear Axle

503167900

$139.99

16

Inner Spacer

503182900

$12.58

17

Outer Spacer

503189809

$18.89

18

Washer

503180400

$3.49

19

Wheel 165 mm Yellow

503190817

$51.99

20

Ball Bearing

293350115

$12.11

21

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

22

Hex. Screw M10 X 35

207103544

$1.58

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Spacer

503153100

Unavailable

25

Spacer

572048300

Unavailable

26

Shock Support | Summit 700 HM.

503173300

Unavailable

27

Wheel 135

503191029

$33.99

28

Ball Bearing

293350115

$12.11

29

Wheel Cap

570063600

$3.49

30

Cushion

503189534

$4.76

31

SUPPORT - Call your local BRP dealership

503190389

Unavailable

32

Hex. Screw M8 X 90

207089044

$3.48

33

Hex. Screw M8 X 25

207182544

$0.90

34

Washer

503183100

$3.17

35

SPACER - Call your local BRP dealership

503188800

Unavailable

36

WASHER - Call your local BRP dealership

503154000

Unavailable

37

WHEEL AXLE - Call your local BRP dealership

503188700

Unavailable

38

Hardened Washer

503175400

Unavailable

39

Lock Washer 8 mm

234181401

$0.92

40

Hex. Screw M8 X 30

207183044

$1.15

41

Wheel Support Axle

503153600

Unavailable

42

Idler Wheel | Includes 48 - 49.

572043500

$33.99

43

Ball Bearing

405404600

$25.99

44

Elastic Stop Nut M5

232551414

$0.87

45

Lower Axle

503174900

Unavailable

46

Hex. Screw With Nylon

250000019

$1.69

47

WASHER - Call your local BRP dealership

503173700

Unavailable

48

Loctite 271, 10 ml

293800005

$26.99

49

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

50

Wheel 165" | Includes 670 to 670b

503194127

$51.99

51

Ball Bearing

293350115

$12.11

52

Flat Washer 8 mm

234081410

$0.83

53

Reinforcement Stopper

572084800

$12.99

54

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

55

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

56

Hex. Screw M12 x 40

222024065

Unavailable

57

Flat Washer 10 mm

234001410

$1.26

58

Reinforcement Plate

503189197

Unavailable

59

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

60

Washer

503183300

$5.82

61

Wheel 135, Yellow

503190785

$33.99

62

Ball Bearing

293350115

$12.11

63

Loctite 243, 10 ml

293800060

$21.49
