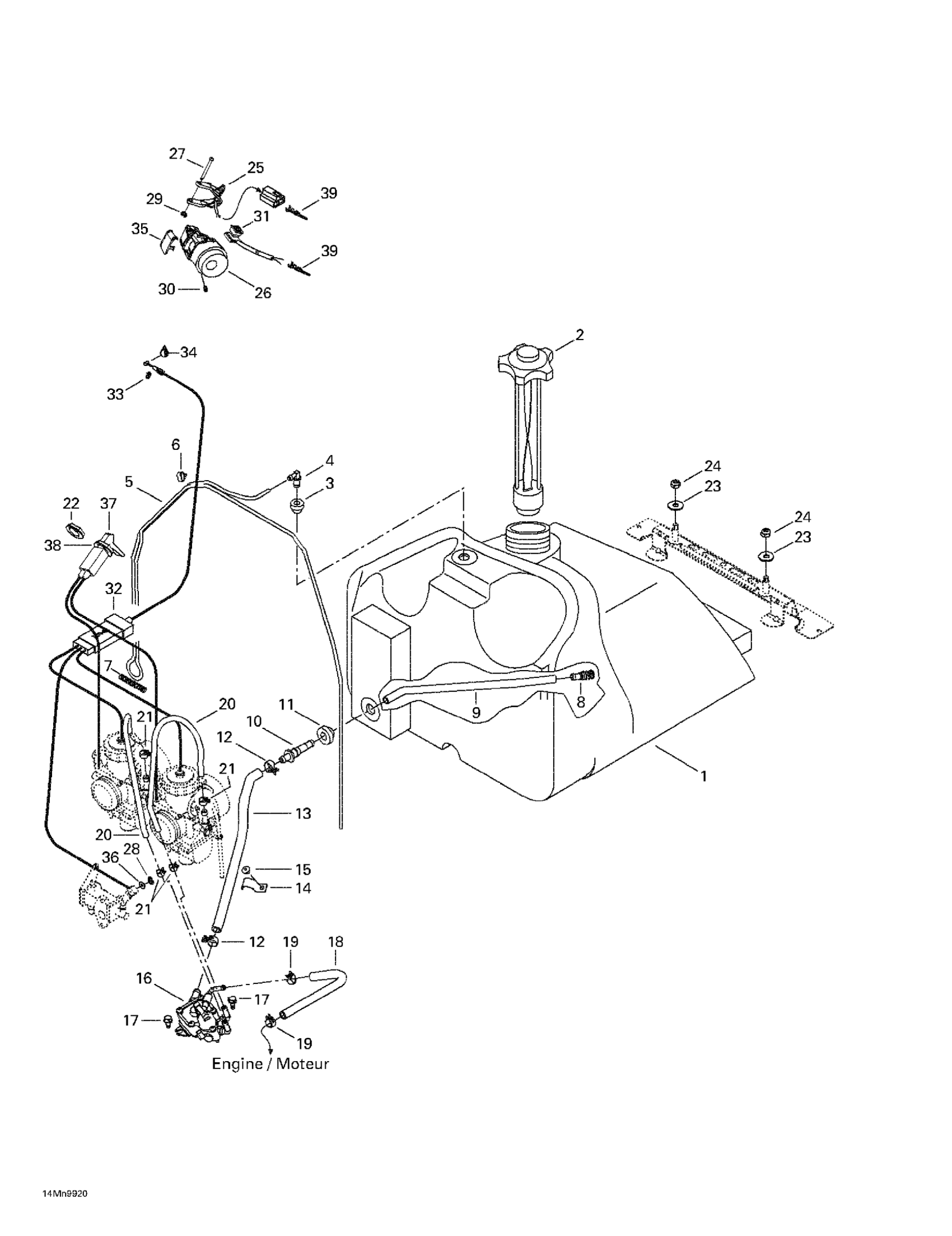

Ski-Doo Suumit 700, 1999 02- Fuel System Diagram

Fuel Tank | MXZ 600.

513032964

Unavailable

Fuel Tank Cap | Sport / Sport GT

513033020

$37.99

Grommet

513032908

$10.49

Male Connector

414814100

$2.22

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

SPRING - Call your local BRP dealership

414818200

Unavailable

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

Hose

415005700

$11.58

Male Connector

414872700

$1.90

Grommet | Europe

707800347

$10.49

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

Formed Hose

513032903

$30.99

CLIP - Call your local BRP dealership

415018200

Unavailable

Pop Rivet 3/16"

390406500

$0.88

Fuel Pump | MX-Z 500.

403901800

Unavailable

Hex. Screw M6 x 12

732601120

Unavailable

Hose

219704549

$50.99

Spring Clamp

414415200

$0.88

Tube

415117800

Unavailable

Spring Clamp

414420700

$0.72

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

Flat Washer 8 mm

234082410

$1.47

Hex. Elastic Stop Nut M8

232581414

$0.56

Handle Ass'y 40 mm

572101900

Unavailable

Throttle Handle Housing

572100900

Unavailable

Lever Pin

414438700

$11.64

Circlip

414753500

$0.71

Circlip | Model-RS

414439000

$4.23

Socket Set Screw M8 X 10

414440800

$4.12

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

Throttle Cable

512058902

Unavailable

Circlip

414274500

$0.90

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Switch Cover

572100901

$14.83

Flat Washer 8 mm, Nylon

234081100

$1.39

Choke Cable | Includes 38 - 39. MXZ 600.

512059093

Unavailable

Lock Washer, Interior Teeth

394103300

Unavailable

Male Terminal

515175232

$1.58
