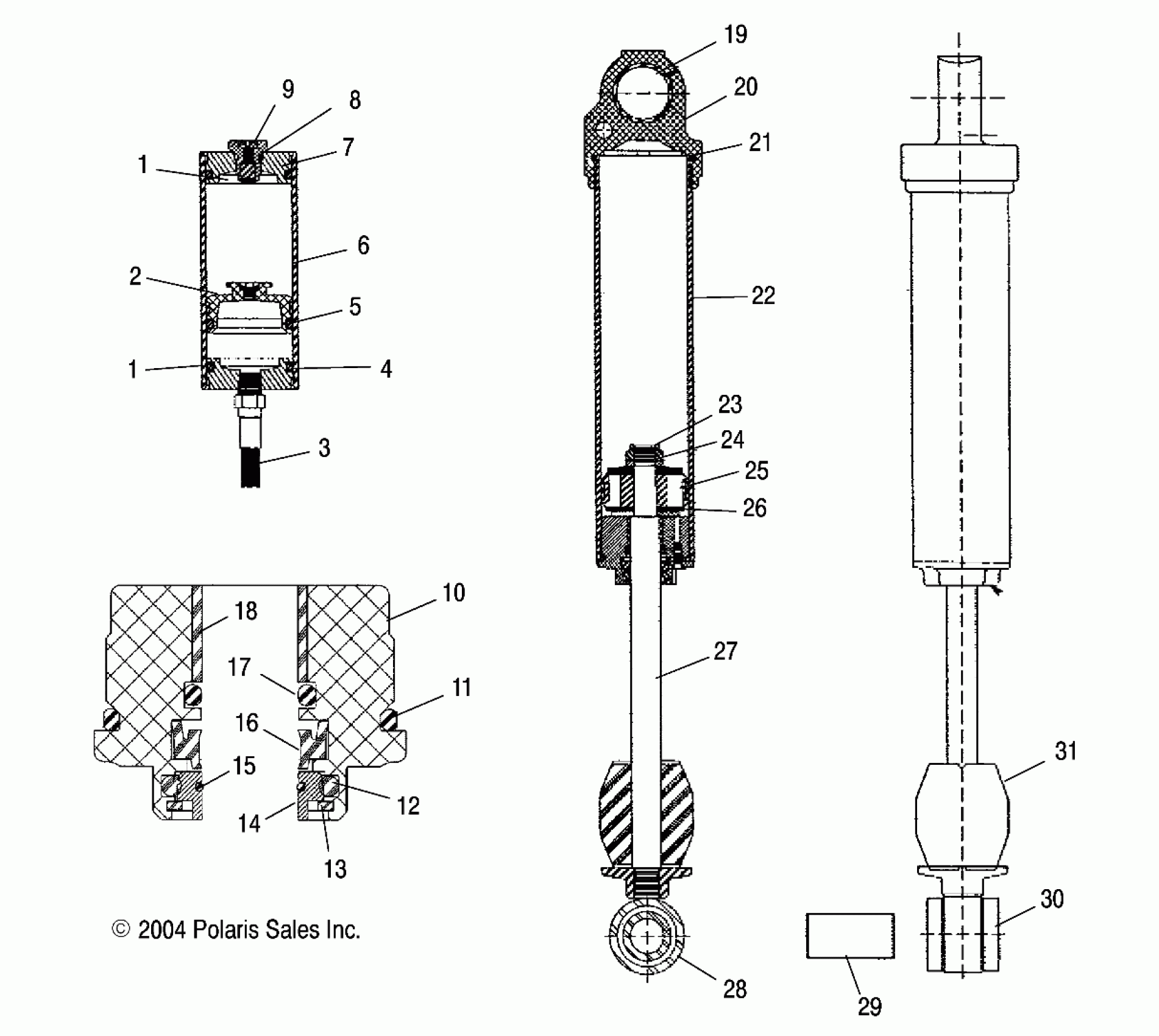

Polaris SUPERSPORT - S05NP5BS SHOCK (REAR TRACK)(M-10) - S05NE5BS/A (4992729272C01) Diagram

#

Description
Price

-

Shock, Rear Track, M-10 [Incl. All]

7042216

Unavailable

-

Asm., Reservoir [Incl. 1-9]

1500449

Unavailable

1

Seal, O-Ring

1500450

Unavailable

1

Seal, O-Ring

1500450

Unavailable

2

Piston, Floating

1500187

$26.98

3

Hose

1500445

Unavailable

4

Cap, Reservoir

1500163

$69.51

5

O-Ring

1500003

$8.89

6

Reservoir

1500451

Unavailable

7

Cap, Reservoir

1500160

$216.17

8

O-Ring

1500023

$2.84

9

Asm., Air Valve

1500014

$69.99

10

Asm., Bearing [Incl. 11-18]

1500545

Unavailable

11

O-Ring

1500020

$10.63

12

O-Ring

1500483

$8.89

13

Ring, Snap

1500486

Unavailable

14

Scraper, FIST

1500485

Unavailable

15

O-Ring

1500484

$8.89

16

U-Cup

1500266

$24.27

17

O-Ring

1500021

$10.99

18

Bearing

1500488

Unavailable

19

Bearing

1500444

Unavailable

20

Cap, Body

1500448

Unavailable

21

O-Ring

1500108

$10.99

22

Body

1500446

$70.39

23

Nut, Lock

1500016

$12.79

24

Plate, Backup

1500015

$6.76

25

Bearing

1500002

$31.99

26

Plate, Top-Out

1500017

$20.22

27

Shaft

1500447

$38.89

28

EYELET

1500164

$93.08

29

SLEEVE

1500310

$23.99

30

Bushing

1500309

Unavailable

31

Bumper

5410855

$39.19
