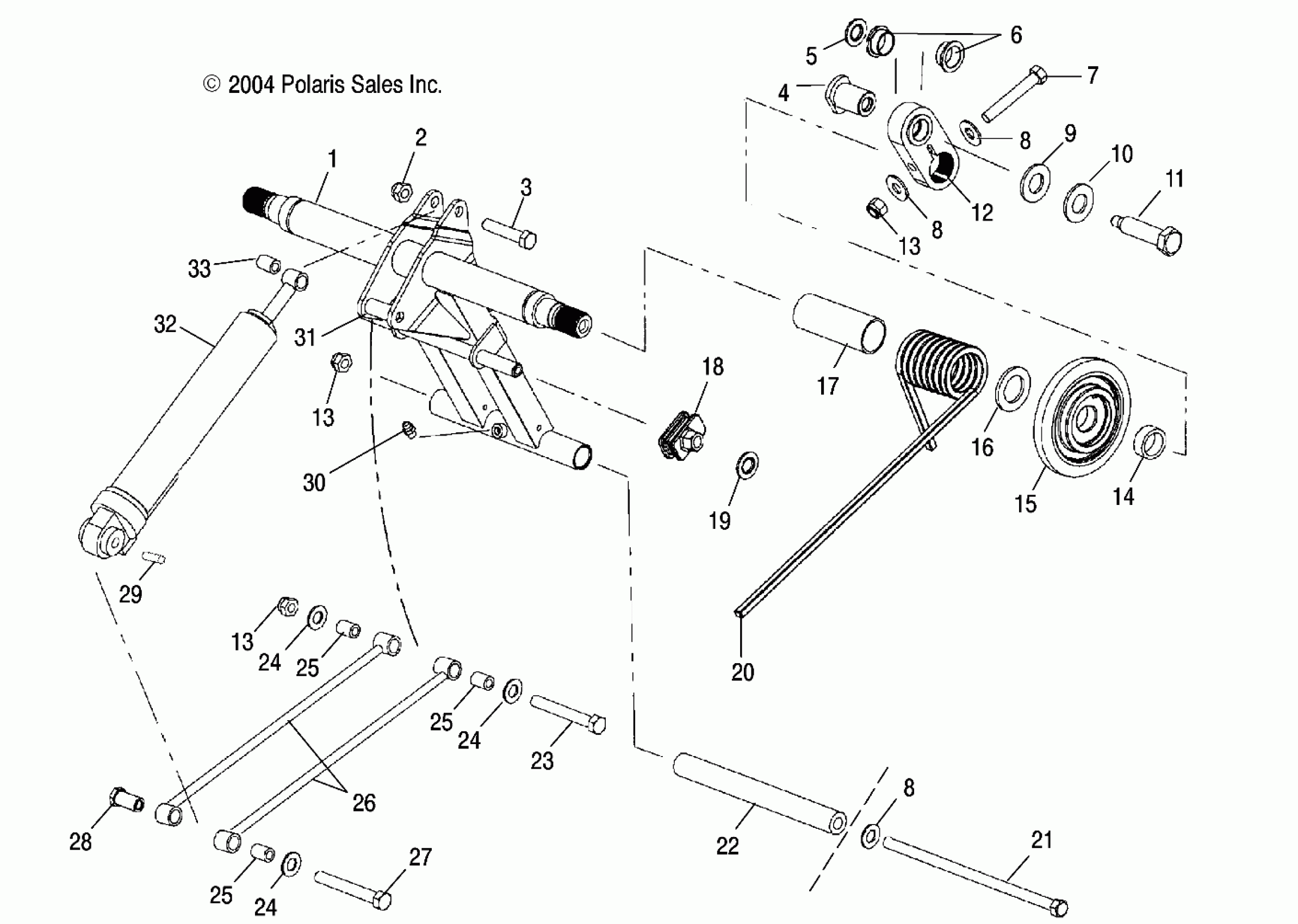

Polaris SUPERSPORT - S05NP5BS REAR TORQUE ARM (EDGE) - S05NP5BS/A/B (4992729272B09) Diagram

#

Description
Price

1

Arm, Torque, Rear, Black

1541969-067

$254.99

2

Nut, FLEXLOC

7542411

$3.19

3

SCREW

7512410

Unavailable

4

Shaft, Arm

5333758

Unavailable

5

Washer, Thrust

7555945

$7.99

6

BUSHING

3514331

$19.99

7

Screw

7515415

$1.49

8

Washer, Flat

7555806

$1.49

8

Washer, Flat

7555806

$1.49

8

Washer, Flat

7555806

$1.49

9

Washer, Flat

7555893

$1.49

10

Washer, Spring Lock

7552603

$1.49

11

Screw

7517435

$14.99

12

Asm., Arm [Incl. 6]

1541967

$114.99

13

Nut, Nylok

7542439

$1.49

13

Nut, Nylok

7542439

$1.49

13

Nut, Nylok

7542439

$1.49

14

Spacer, Wheel

5132388

Unavailable

15

Asm., Wheel

1590343

$72.84

16

WASHER, THRUST

7555787

Unavailable

17

Sleeve, Torsion Spring

5431923

$6.39

18

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

19

CLIP-PUSH ON

7080394

$2.39

20

Spring, Torsion, LH, .359/77 [Std. Soft]

7041629-067

Unavailable

20

Spring, Torsion, RH, .359/77 [Std. Soft]

7041630-067

Unavailable

20

Spring, Torsion, LH, .375/77 [Opt]

7041942-067

Unavailable

20

Spring, Torsion, RH, .375/77 [Opt]

7041943-067

Unavailable

20

SPRING-TORS,.405SQ/77, LH, BLK [Opt. Firm]

7041940-067

$113.32

20

SPRING-TORS,.405SQ/77, RH, BLK [Opt. Firm]

7041941-067

$113.32

21

Screw

7517232

$19.99

22

Shaft

5333873

$11.11

23

Bolt

7515514

$7.19

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

Bushing

5132391

$7.99

25

Bushing

5132391

$7.99

25

Bushing

5132391

$7.99

26

Rod, Shock

1541479-067

$44.51

27

Bolt

7517851

$6.39

28

Bushing, Nut

5132390

$23.99

29

Sleeve

5333907

$15.99

30

FITTING-LUBRICATION 1/4-28

7080424

$4.79

31

Spacer

5333904

Unavailable

32

Shock, PPS

7042129

Unavailable

33

BUSHING

5010422

$11.99
