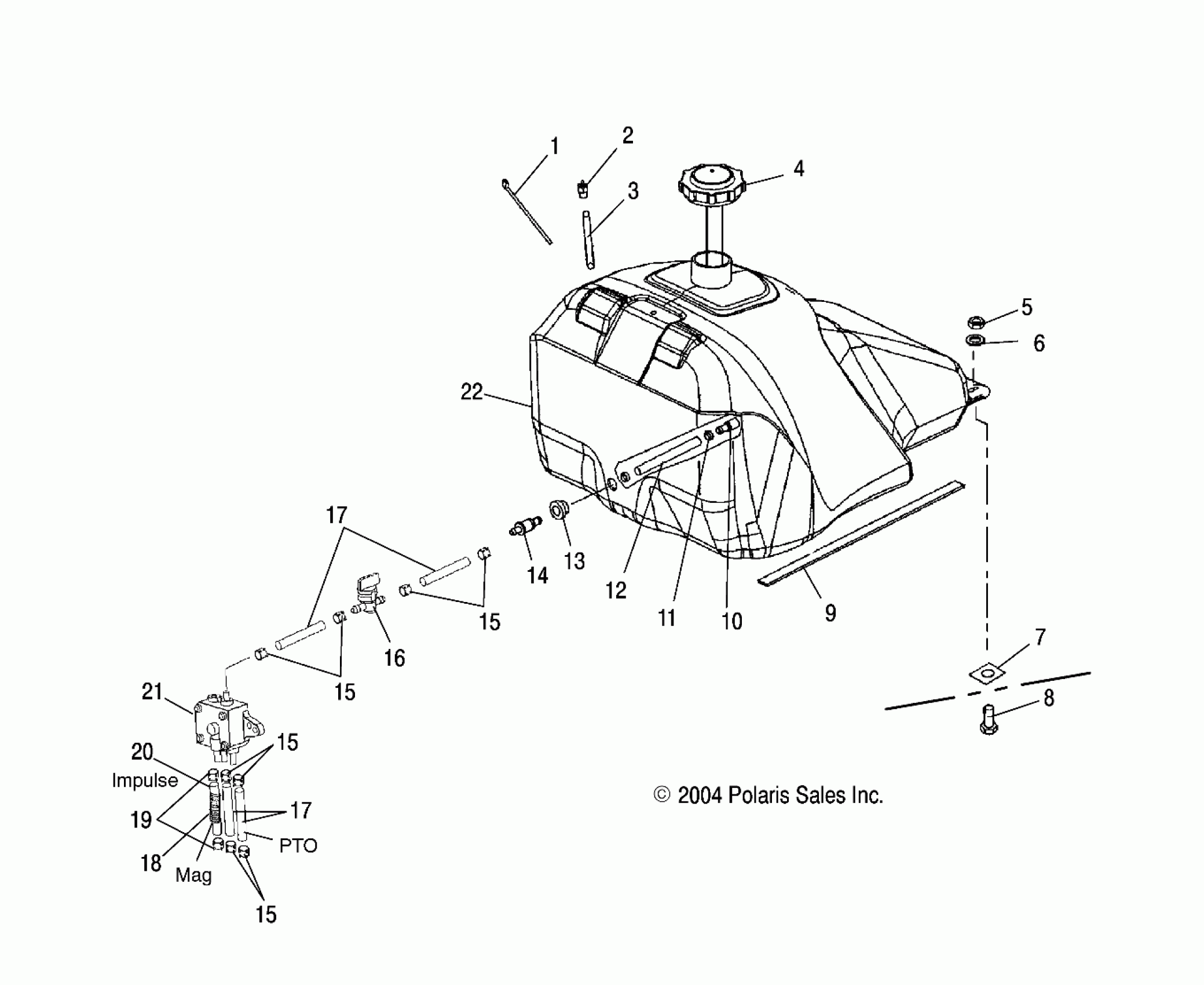

Polaris SUPERSPORT - S05NP5BS GAS TANK - S05NP5BS/A/B/S05NE5BS/A (4992729272A06) Diagram

#

Description
Price

1

CABLE TIE, RELEASABLE

7080804

$3.22

2

Fitting, 90 Degree

7052095

$4.79

3

LINE, OIL

8450061-600

Unavailable

4

Cap, Fuel w/Gauge

2520323

Unavailable

4

Gasket, Fuel Cap

5810512

$9.11

5

Nut, Nylok

7542122

$1.49

6

WASHER, FLAT

7555960

$3.99

7

Nut, Speed

7670021

$6.99

8

BOLT, CARRIAGE

7512193

$2.39

9

FOAM-SEAL,REAR COOLER

5810947

$4.03

10

Pickup Fuel, w/Filter

7052301

$12.94

11

RING, COMPRESSION

7080402

$1.60

12

Line, Fuel

8350019-160

Unavailable

13

GROMMET, FLANGED

7052028

$6.39

14

Fitting

7052321

$8.79

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

16

VALVE, FUEL

7052248

$24.27

17

Line, Fuel

8350018-600

Unavailable

17

Line, Fuel

8350018-600

Unavailable

18

TUBING, CONVOLUTED

8360052-30

Unavailable

19

HOSE CLAMP, RED

7080003

$1.49

20

Line, Fuel

8450040-600

Unavailable

21

Asm., Fuel Pump

3085490

Unavailable

22

Asm., Fuel Tank [Incl. 2, 10-14]

2520276

Unavailable
