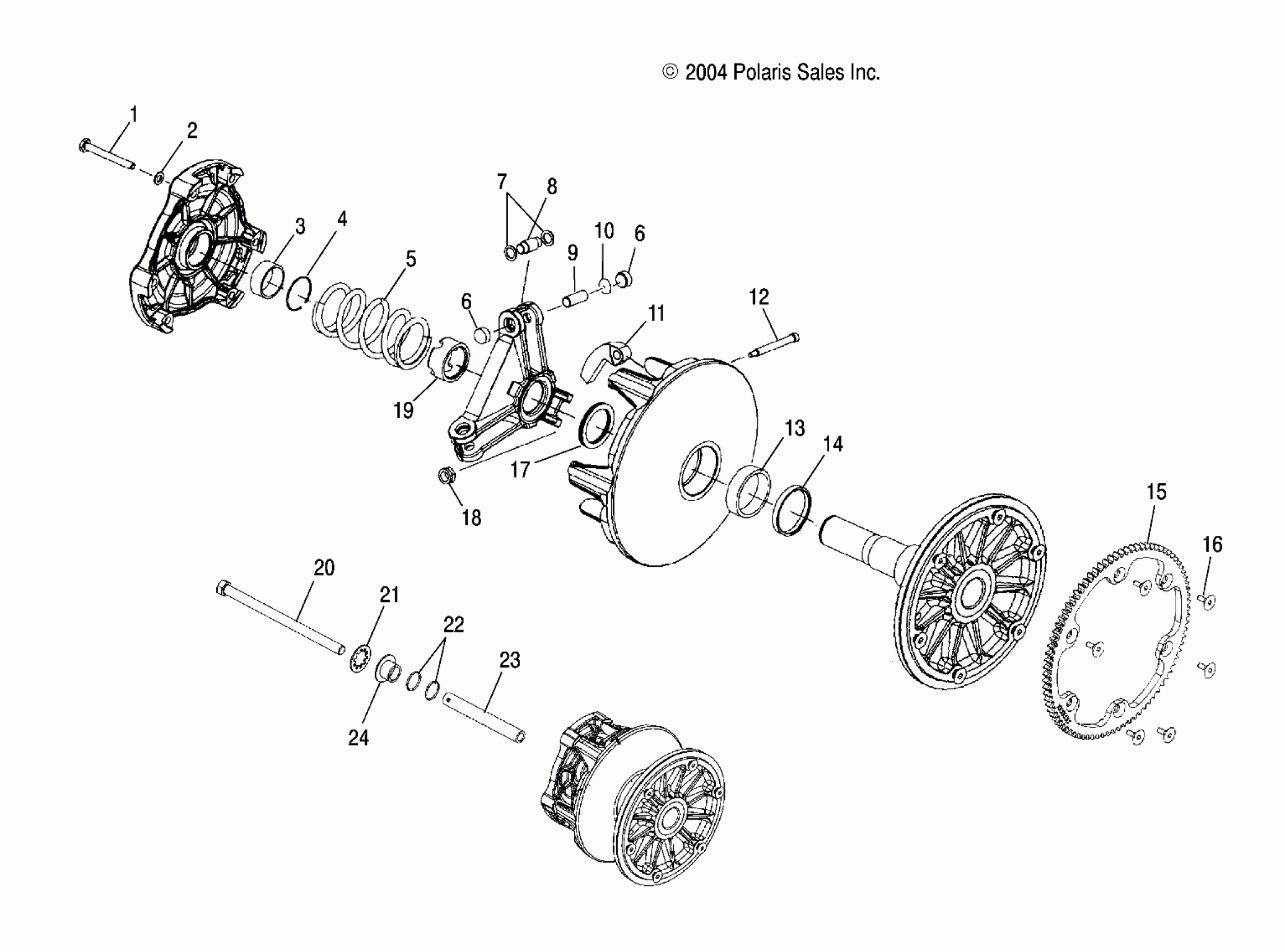

Polaris SUPERSPORT - S05NP5BS DRIVE CLUTCH - S05NP5BS/A/B/S05NE5BS/A (4992729272C03) Diagram

#

Description
Price

-

Asm., Drive Clutch Electric Start Basic 126 [Incl. All Less 5,11]

1322316

Unavailable

-

Asm., Drive Clutch, Basic 69 [Incl. All Less 5,11,15,16]

1321699

Unavailable

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING, COVER

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch, Dark Blue/White

7041781

$56.65

6

BUTTON, GUIDE

5430445

$6.39

6

BUTTON, GUIDE

5430445

$6.39

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

PIN, ROLLER

5133079

$6.39

10

Kit - Shim, Drive Clutch

2200387

$24.27

11

Weight/Bushing, 10-62

1321586

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

Gear, Ring

5133649

Unavailable

16

SCREW

7515351

$3.99

17

SPACER, .050

5210754

Unavailable

17

SPACER, .020

5210752

Unavailable

17

SPACER, .032

5210753

Unavailable

18

NUT, FLEXLOC

7541906

$3.19

19

NUT-JAM

5020425

$23.99

20

SCREW

7517776

$34.99

21

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

22

O-RING, CLUTCH BOLT

5410507

$1.49

23

Spacer

5020513

$44.99

24

Washer, Clutch Retainer, Short

5010287

$12.99
