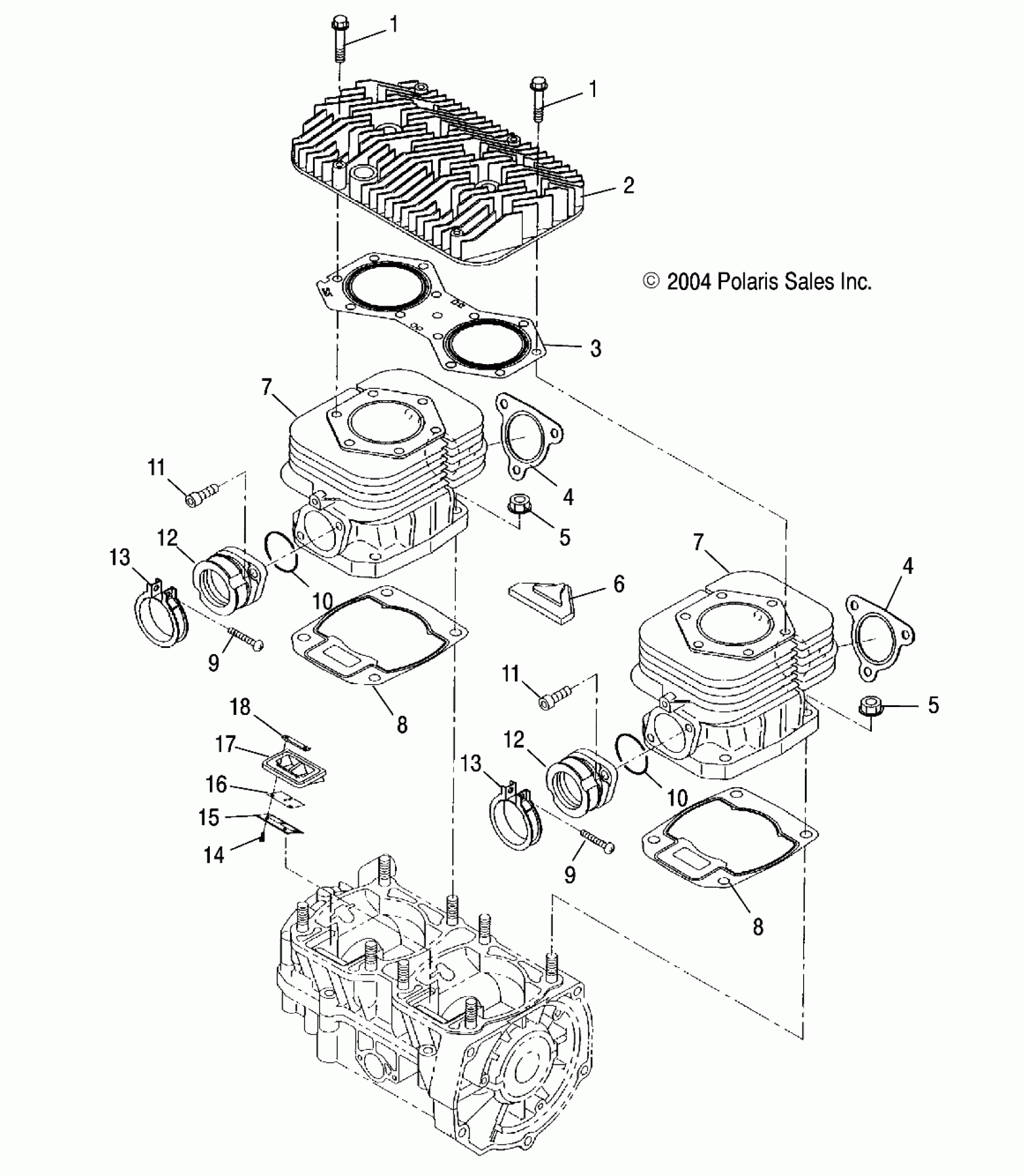

Polaris SUPERSPORT - S05NP5BS CYLINDER - S05NP5BS/A/B/S05NE5BS/A (4992729272C12) Diagram

#

Description
Price

1

BOLT, FLANGE

3084271

Unavailable

1

BOLT, FLANGE

3084271

Unavailable

2

HEAD, CYLINDER

3088215

Unavailable

3

GASKET, HEAD

3085704

Unavailable

4

GASKET, EXHAUST

3085714

$29.99

4

GASKET, EXHAUST

3085714

$29.99

5

Nut, Flange

3082911

$1.99

5

Nut, Flange

3082911

$1.99

6

COVER, CYLINDER BAFFLE

3085692

$24.27

7

Cylinder Unit

3089226

$639.99

7

Cylinder Unit

3089226

$639.99

8

GASKET, CYLINDER

3085666

Unavailable

8

GASKET, CYLINDER

3085666

Unavailable

9

SCREW

3081497

$2.39

9

SCREW

3081497

$2.39

10

O-RING

3085619

$20.22

10

O-RING

3085619

$20.22

11

Bolt

3081330

$3.99

11

Bolt

3081330

$3.99

12

Adaptor [Incl. 10]

3085670

Unavailable

12

Adaptor [Incl. 10]

3085670

Unavailable

13

Band, Adaptor [Incl. 9]

3083166

$19.84

13

Band, Adaptor [Incl. 9]

3083166

$19.84

14

Screw and Washer

3085717

$4.75

15

STOPPER

3086387

$12.94

16

Valve

3085715

$8.89

17

Asm., Reed Valve

3086386

$60.70

18

PLATE

3085718

Unavailable
