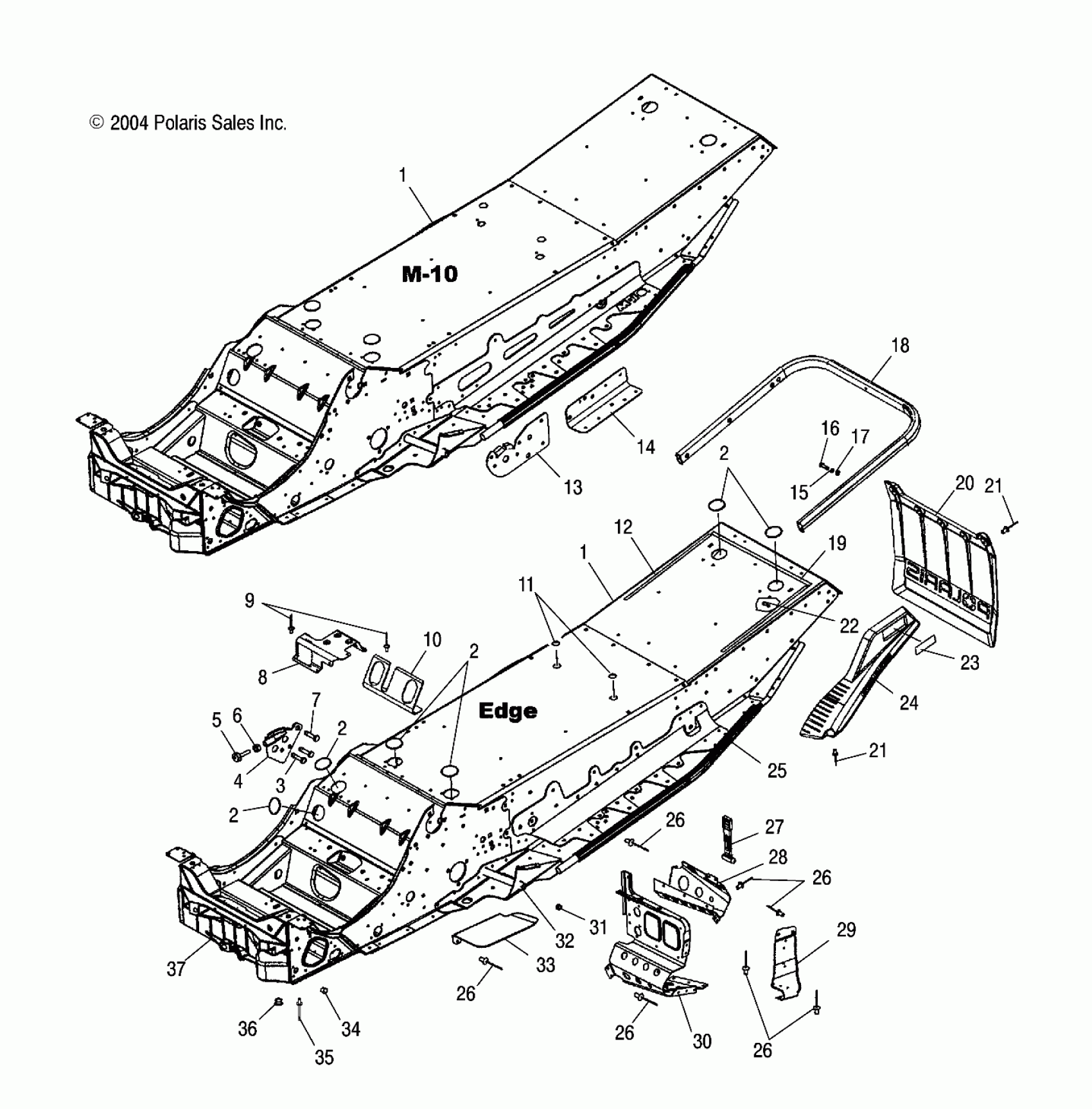

Polaris SUPERSPORT - S05NP5BS CHASSIS - S05NP5BS/A/B/S05NE5BS/A (4992729272A03) Diagram

#

Description
Price

1

Asm., Chassis, Edge, Black/Silver [Incl. 32,37]

1014193-1156

Unavailable

1

Asm., Chassis, M-10, Black/Silver [Incl. 13,14,32,37]

1014205-1156

$1,299.99

1

Asm., Chassis, Edge, Black/Silver [Incl. 32,37]

1014193-1156

Unavailable

1

Asm., Chassis, M-10, Black/Silver [Incl. 13,14,32,37]

1014205-1156

$1,299.99

2

Caplug

7080934

$1.83

2

Caplug

7080934

$1.83

2

Caplug

7080934

$1.83

2

Caplug

7080934

$1.83

3

Screw

7517854

$5.59

4

Stop, Torque

1013399

$27.19

5

Stop, Torque

3021104

$20.22

6

NUT

7542404

$1.59

7

SCREW

7517632

$5.59

8

Bracket, Oil Tank/Hose Support

5246330

$13.19

9

Rivet

7621432

$1.49

10

Bracket, Air Box

5246177

$18.23

11

Caplug

7080592

Unavailable

12

Gasket, Seat Base

5812290

$1.49

13

Pad, Suspension, Front, LH [M-10]

5244999-067

Unavailable

13

Pad, Suspension, Front, RH [M-10]

5245001-067

$24.27

14

Brace, Tunnel, Lower, LH [M-10]

5244997-067

$19.83

14

Brace, Tunnel, Lower, RH [M-10]

5244998-067

$19.83

15

WASHER, SPRING LOCK

7552801

$1.59

16

SCREW

7512232

$1.49

17

Washer, Flat

7558301

$1.49

18

Bumper, Rear, Unpainted

2632165-309

Unavailable

19

Gasket, Seat Base

5812360

$1.83

20

Flap, Snow, Edge, Short, Black/White

5433961-1106

Unavailable

20

Flap, Snow, Edge, Short, Black/White

5433961-1038

Unavailable

21

RIVET

7621472

$1.49

21

RIVET

7621472

$1.49

22

Screw

7517441

$2.39

23

Reflector, Red

2670133

$5.75

24

Skirt, Snow, Black, LH

2632443-070

$64.75

24

Skirt, Snow, Black, RH

2632444-070

$55.99

24

Skirt, Snow, Red, LH

2632443-293

$40.79

24

Skirt, Snow, Red, RH

2632444-293

$40.79

25

Grip, Tunnel, Edge, LH

5133971-067

$45.59

25

Grip, Tunnel, Edge, RH

5133972-067

$45.59

26

RIVET-3/16-.090-.290

7661637

$1.49

26

RIVET-3/16-.090-.290

7661637

$1.49

26

RIVET-3/16-.090-.290

7661637

$1.49

26

RIVET-3/16-.090-.290

7661637

$1.49

26

RIVET-3/16-.090-.290

7661637

$1.49

27

STRAP-AIRBOX TOP

5433150

$24.27

28

Mount, Console, Toe Clip, LH

5245457-067

Unavailable

28

Mount, Console, Toe Clip, RH

5245458-067

Unavailable

29

Support, Footrest, LH

5246310-067

$19.68

29

Support, Footrest, RH

5246311-067

Unavailable

30

Footrest, LH

5245288-067

Unavailable

30

Footrest, RH

5247205-067

Unavailable

31

Plug, Barbed [M-10]

7081085

$7.27

32

Kit, Trailing Arm Mount, LH

2202059

$213.00

32

Kit, Trailing Arm Mount, RH

2202598

$124.99

33

Guard, Belt, Edge

5246066

Unavailable

34

PLUG, HOLE

7080416

$5.65

35

Rivet

7661130

$1.49

36

Plug, Hole

7081076

$3.22

37

Bulkhead, Front

5132292

$115.99
