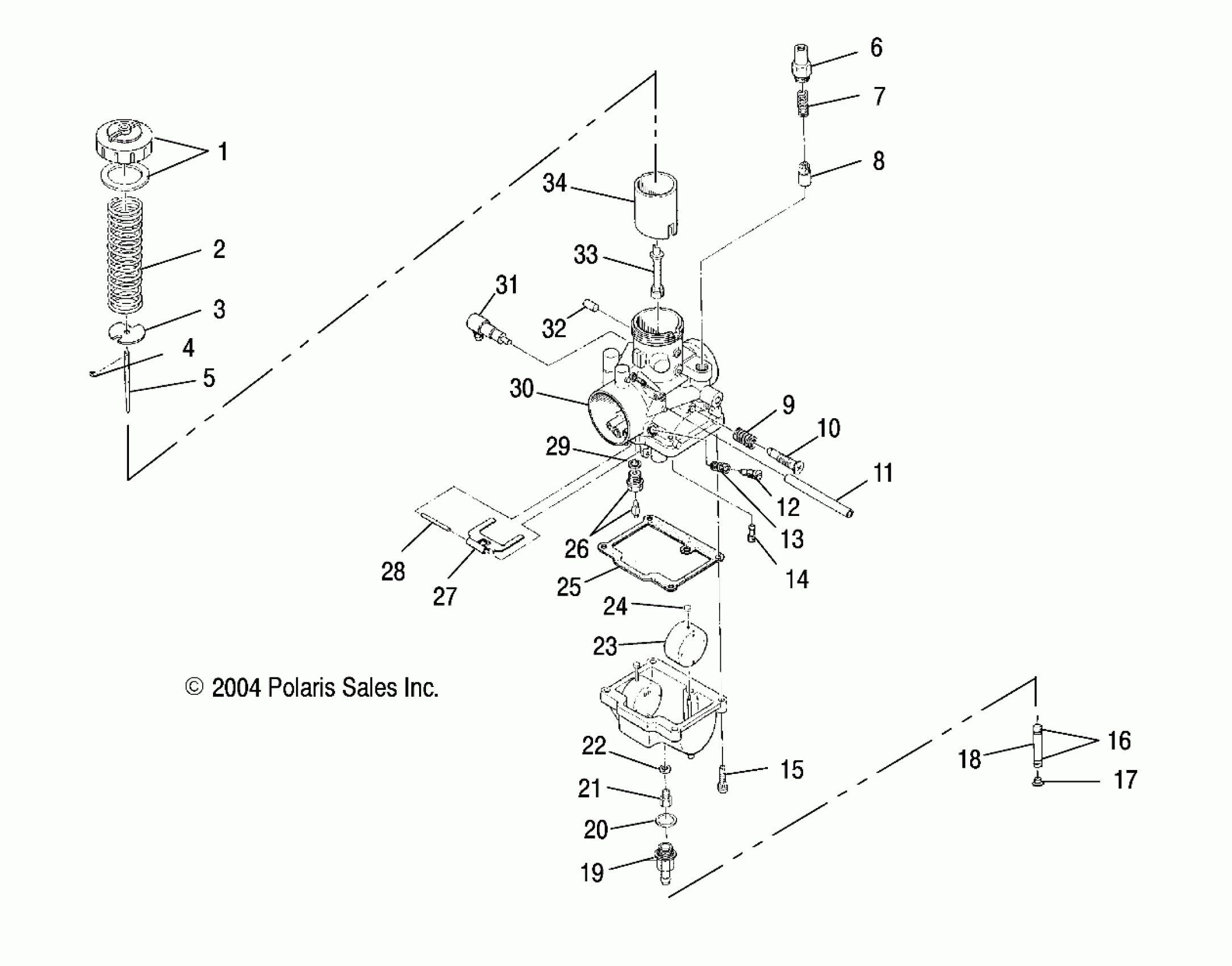

Polaris SUPERSPORT - S05NP5BS CARBURETOR - S05NP5BS/A/B/S05NE5BS/A (4992729272D01) Diagram

#

Description
Price

1

Asm., Top

3130184

$32.37

2

SPRING, THROTTLE

3130439

$13.59

3

Plate, Throttle

3130027

$9.70

4

E-RING

3130508

$6.46

5

Needle, Jet J8-6BGY33

3131416

Unavailable

6

Cap, Plunger

3130199

$28.32

7

Spring, Plunger

3130006

$8.89

8

Plunger

3130328

$32.37

9

SPRING, THROTTLE ADJUSTER

3130010

$8.89

10

SCREW, THROTTLE STOP

3130437

Unavailable

11

Hose

3131288

$10.71

12

Screw, Air

3130011

$19.99

13

Spring, Screw, Throttle Stop

3130012

$8.89

14

Pilot Jet, #40

3130067

$10.99

15

Screw and Washer

3130025

$3.19

16

HOSE CLAMP, RED

7080003

$1.49

17

Plug, Trap

5431893

$12.94

18

Line, Fuel

8350017-600

Unavailable

19

NIPPLE

3130573

$32.37

20

O-RING

3130239

Unavailable

21

Main Jet, #280 [PTO]

3130131

$7.27

21

Main Jet, #270 [Mag.]

3130130

$7.27

22

WASHER

3130014

$1.59

23

Float

3130430

$43.56

24

Cap

3130237

$4.03

25

Gasket, Float Chamber

3130020

$16.17

26

Needle Valve [1.5]

3131146

$48.56

27

Arm, Float

3130018

$24.27

28

PIN, FLOAT

3130361

$8.89

29

Packing, Needle Valve

3130017

$4.03

30

Asm., Carburetor [MAG] [Incl. 1-15,19-34]

3131520

$395.22

30

Asm., Carburetor [PTO] [Incl. 1-15,19-34]

3131521

$395.22

31

Valve, Check

3086785

$52.60

32

CAP

3130479

$14.56

33

Needle Jet, Q-2, 480

3130894

Unavailable

34

VALVE, THROTTLE, 3.0

3130372

$52.60
