Partiron

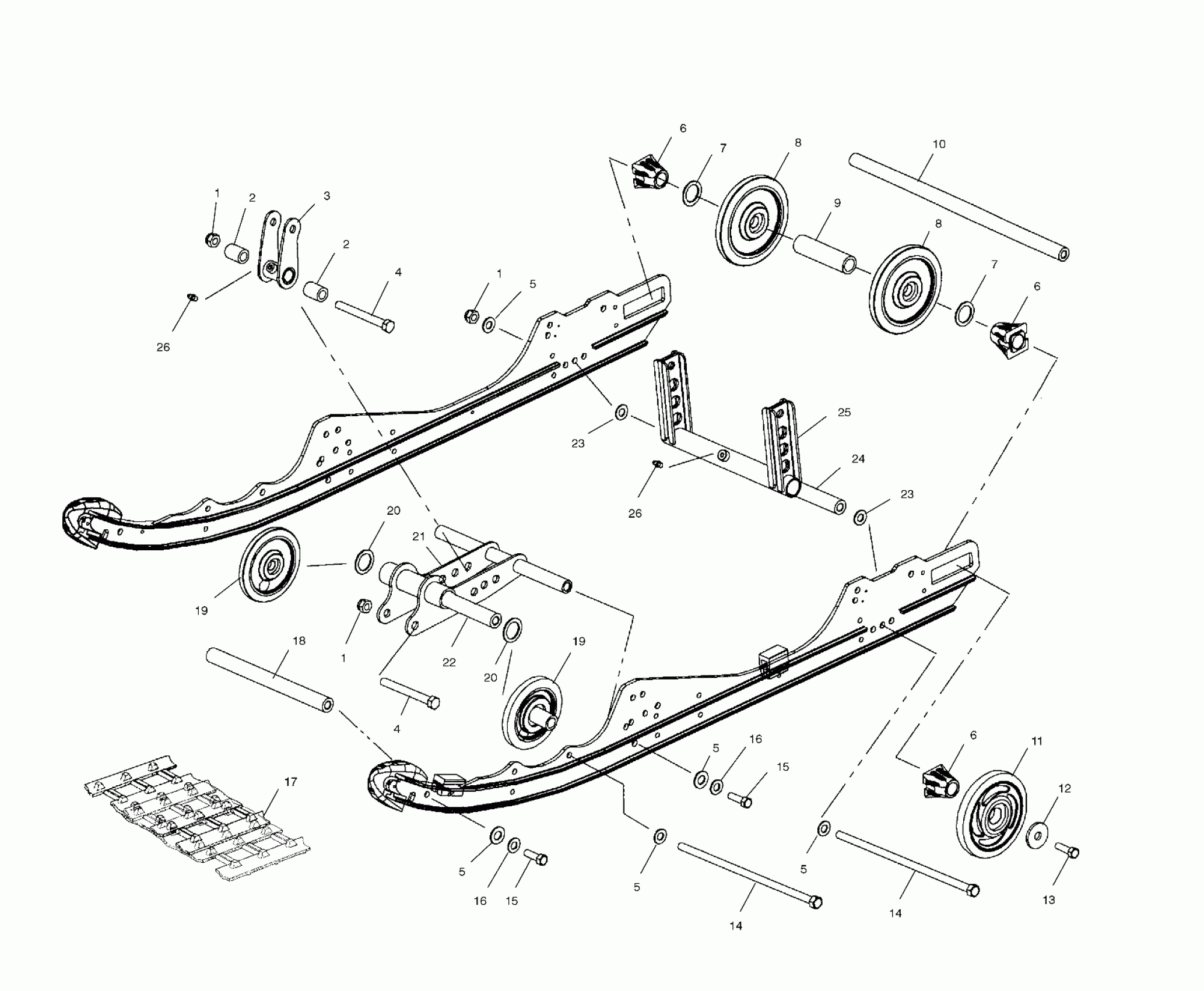

Polaris SUPERSPORT - S02NB5BS SUSPENSION - S02NB5BS (4968256825B007) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

2

BUSHING

5131940

$3.19

2

BUSHING

5131940

$3.19

3

SHOCK PIVOT ARM,2.5,BLK

1541477-067

$56.99

4

BOLT(10)

7515417

$4.79

4

BOLT(10)

7515417

$4.79

5

WASHER(10)

7555806

$1.49

5

WASHER(10)

7555806

$1.49

5

WASHER(10)

7555806

$1.49

5

WASHER(10)

7555806

$1.49

5

WASHER(10)

7555806

$1.49

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

7

BUSHING(10)

7555918

$1.59

7

BUSHING(10)

7555918

$1.59

8

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

8

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

9

SPACER-IDLER, LONG

5333285

$11.99

10

SHAFT,IDLER

5020744

$59.99

11

RING-RETAINING

7710444

$8.79

11

Bearing

3514012

Unavailable

11

WHEEL,IDLER,HP,RED

1590303-293

$48.56

12

WSHR,.406X1.25X.125(10)

7556130

$6.39

13

BOLT,3/8-16X1.25(10)

7517731

$1.49

14

SCREW

7517921

$23.99

14

SCREW

7517921

$23.99

15

SCREW,(10)

7517247

$3.19

15

SCREW,(10)

7517247

$3.19

16

WASHER(10)

7552603

$1.49

16

WASHER(10)

7552603

$1.49

17

Clip, Slide

5241473

$8.79

17

Clip, Guide

5241474

Unavailable

17

TRACK,121"X.82 MOD(LIGHTNING)

5411057

$583.99

18

SHAFT,PIVOT ARM

5020723

$29.99

19

WHEEL,5.35,.984 ID,W/ HOLE

1541485

$72.84

19

WHEEL,5.35,.984 ID,W/ HOLE

1541485

$72.84

20

MACHINERY BUSHING(10)

7556301

$3.19

20

MACHINERY BUSHING(10)

7556301

$3.19

21

SHOCK MNT,BLK

1541463-067

Unavailable

22

SHAFT,.390X.750X.8665

5132490

Unavailable

23

WASHER(10)

7555893

$1.49

23

WASHER(10)

7555893

$1.49

24

SHAFT

5333404

$24.27

25

REAR PIVOT ARM,3.75,BLK

1541478-067

$27.70

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79
