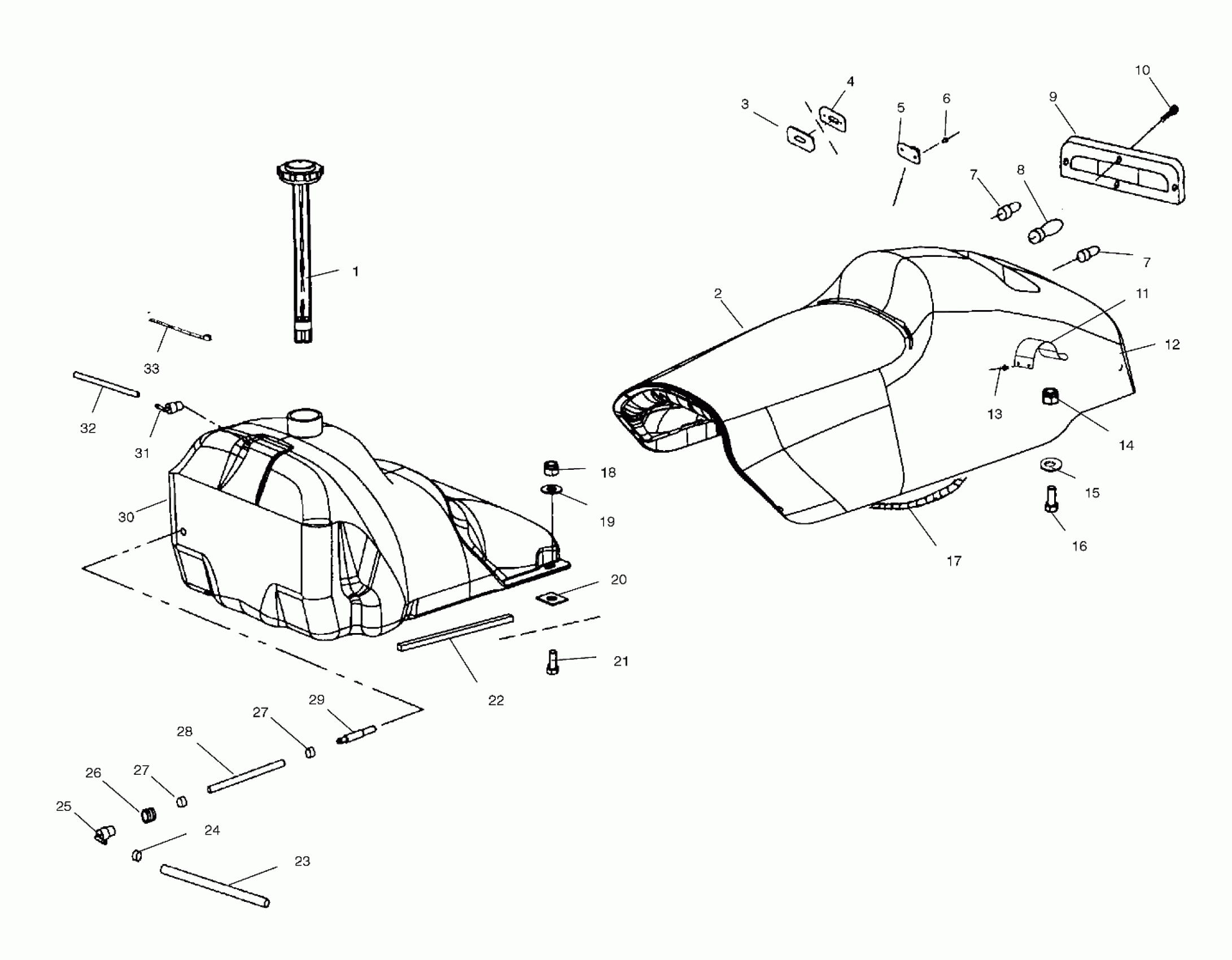

Polaris SUPERSPORT - S02NB5BS SEAT AND GAS TANK - S02NB5BS (4968256825A004) Diagram

#

Description
Price

1

CAP,FUEL,12.5,W/GAUGE

1240066

Unavailable

2

CUSHION,ASM,SEAT (Incl. 2-12,17)

2682587

Unavailable

2

ASM-SEAT COVER

2682588

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

Bulb, Brakelight

4030045

Unavailable

9

LENS,TAILLIGHT

5430423

Unavailable

10

SCREW(10)

7511840

Unavailable

11

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

12

HOUSING-TAILLIGHT

5433341

Unavailable

13

RIVET(50)

7621472

$1.49

14

NUT,WELD,TAB 1/4-20T-L0K

7547114

$2.63

15

WASHER(10)

7558301

$1.49

16

SCREW(10)

7515159

$4.79

17

Harness, Taillight

2460399

Unavailable

18

NUT-LOCK(10)

7542122

$1.49

19

WASHER(10)

7555960

$3.99

20

SPEED NUT(10)

7670021

$6.99

21

BOLT(10)

7512193

$2.39

22

FOAM-SEAL,REAR COOLER

5810947

$4.03

22

TAPE, FOAM

8360033

Unavailable

23

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

FITTING,1/4" 90� DEX

7052259

Unavailable

26

GROMMET-TANK FITTING(10)

7052028

$6.39

27

RING, COMPRESSION(10)

7080402

$1.60

27

RING, COMPRESSION(10)

7080402

$1.60

28

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

29

PICK-UP-FUEL,W/FILTER,105MICRN

7052301

$12.94

30

TANK,FUEL,EDGE (Incl. 29-31)

2520173

$267.99

31

FITTING,90 DEG,1/8,(10)

7052095

$4.79

32

FUELLINE,3MMX7MM

8450061-600

Unavailable

33

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22
