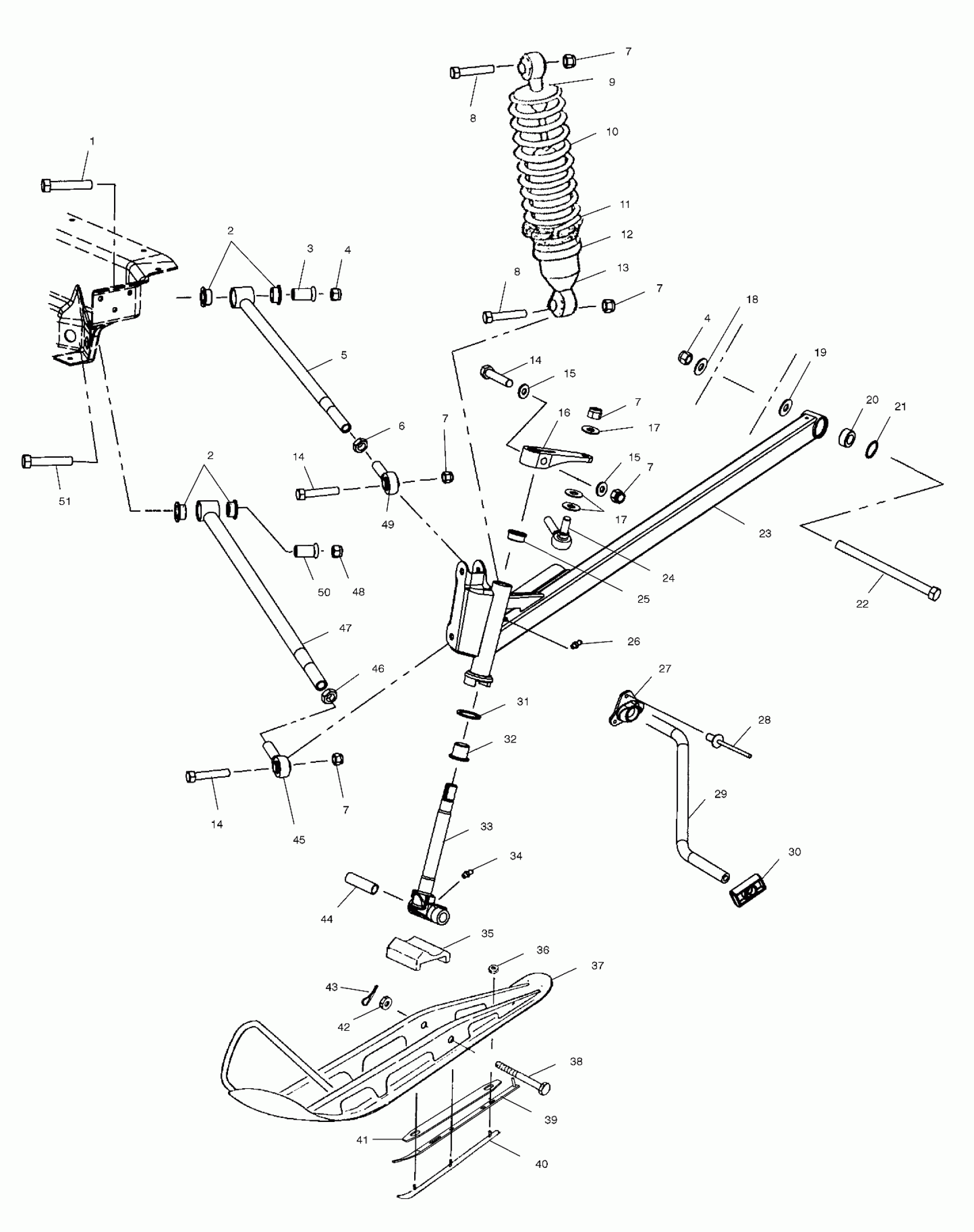

Polaris SUPERSPORT - S02NB5BS FRONT SUSPENSION and SKI - S02NB5BS (4968256825A013) Diagram

#

Description
Price

1

BOLT-7/16-20X2.75,HXCAP,GR5,Y

7512597

$4.99

2

BUSHING-RAD ROD PIVOT,INNER

5434036

$14.99

2

BUSHING-RAD ROD PIVOT,INNER

5434036

$14.99

3

BUSHING-SHLDR,.443X.750X1.215

5132779

$11.99

4

NUT-7/16-20,NYLOK,Y

7547066

$1.59

4

NUT-7/16-20,NYLOK,Y

7547066

$1.59

5

RADIUS ROD,UPPER,BLK

1820679-067

$104.99

6

NUT JAM(10)

7542520

$2.39

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

8

BOLT Substituted by 7515491

7515433

$1.59

8

BOLT Substituted by 7515491

7515433

$1.59

9

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

10

SPRING,COMPRESSION

7041551-067

$74.99

11

RING,SPRING PRELOAD ADJ.

5431734

$52.60

12

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

13

SHOCK-IFS,NITREX,11.09X16.35

7041932

Unavailable

14

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

14

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

14

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

15

WSHR-.813X.406X.105-Y

7555832

$2.39

15

WSHR-.813X.406X.105-Y

7555832

$2.39

16

ARM-STEERING,MACHINED,EDGE

5132728

$79.99

17

WASHER(10)

7555797

$3.99

17

WASHER(10)

7555797

$3.99

18

WASHER(10)

7555820

$3.99

19

CUP,TRAILING ARM MNT

5132364

$20.22

20

BEARING-SPHERICAL,7/16,PLASTIC

7061042

$31.99

21

RING,RETAINING(10)

7710437

$3.19

22

BOLT

7512099

$19.99

23

ASM-TRAILING ARM,SVC,LH,RED (Incl. 20,21)

1821165-293

Unavailable

23

ASM-TRAILING ARM,SVC,RH,RED (Incl. 20,21)

1821166-293

Unavailable

24

Rod End (See Steering Pg B3, Ref 1)

-------

Unavailable

25

BUSHING-FLANGE

3573909

$2.39

26

ZERK,FITTING,THREADED(10)

7080433

$1.49

27

BUSHING-TORSION BAR

5433234

$23.99

28

RIVET,(50)

7621477

$1.19

29

BAR,TRSN,1/2,42.5 EDGE,BLK

5244415-067

Unavailable

30

SLIDE-TORSION BAR,1/2

5433884

Unavailable

31

WASHER SPECIAL(10)

7556509

$1.59

32

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

33

SHAFT-SPINDLE,W/STEER STOP,BLK

6230225-067

$219.99

34

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

35

Stop, Rubber

5411083

$12.94

36

NUT-5/16-18 NYLOK-Y

7542324

$1.49

37

SKI WELD

1820430-067

Unavailable

38

BOLT(10)

7515462

$8.79

39

Plate, Skag

1011829-067

$54.99

39

SKAG,PR,3'' CRABIDE,E-Z STEER (Incl. Skag and Plate)

2870976

Unavailable

40

SKAG, BLK.

1820318-067

$49.99

41

SHIM-SKAG PLATE,BLK

5245145-067

Unavailable

42

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

43

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

44

BUSHING,PIVOT,(10)

5010158

$19.99

45

ROD END,RADIUS,1/2

7061060

$48.56

46

NUT-JAM(10)

7542711

$2.39

47

RADIUS ROD,LOWER,BLK

1820677-067

$104.99

48

NUT-1/2-20,NYLOK,Y

7547065

$3.99

49

ROD END,RADIUS,7/16

7061061

$48.56

50

BUSHING-SHLDR,.505X.750X1.215

5132780

$7.99

51

BOLT(10)

7512684

Unavailable
