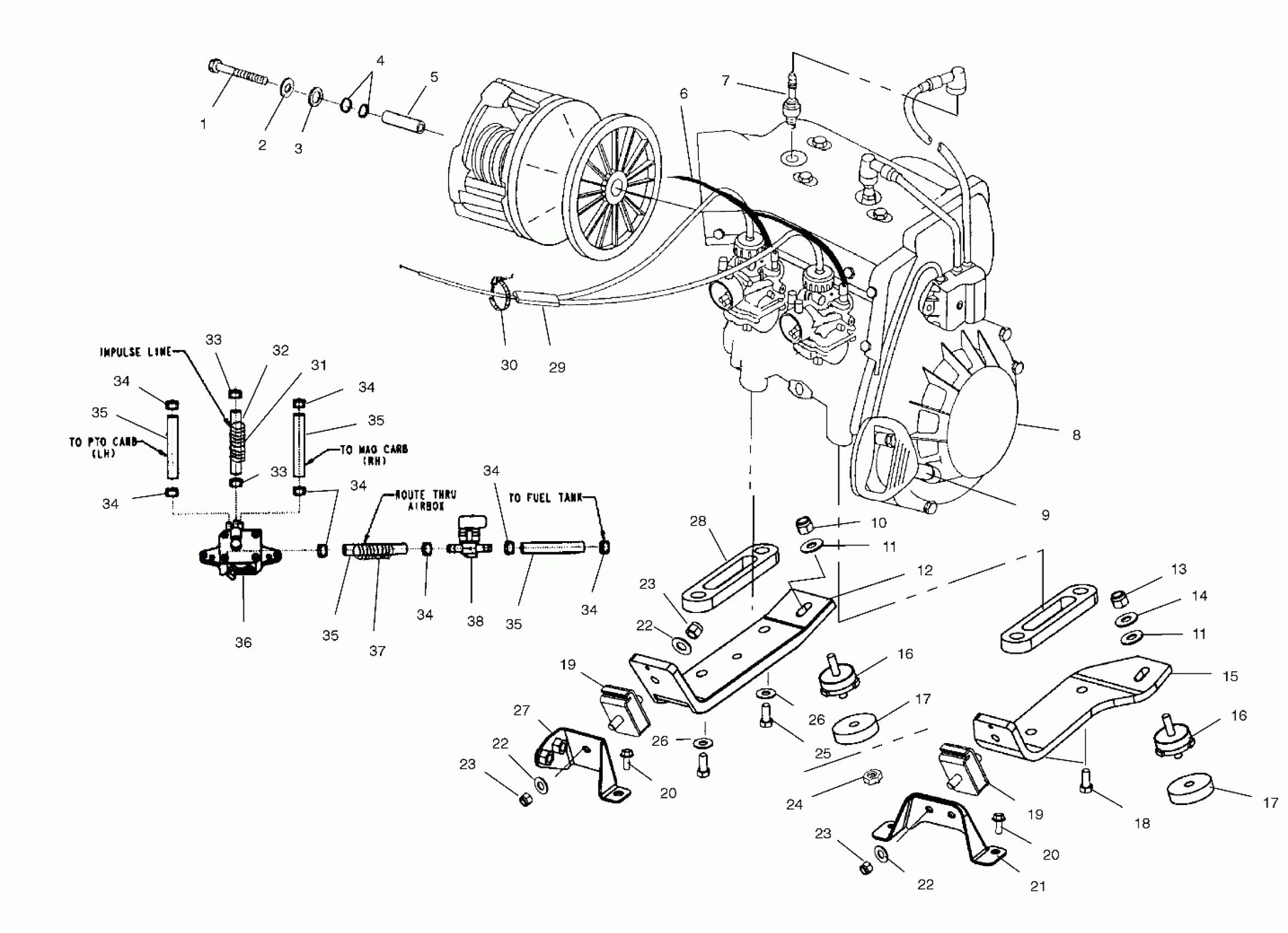

Polaris SUPERSPORT - S02NB5BS ENGINE MOUNTING - S02NB5BS (4968256825B012) Diagram

#

Description
Price

1

SCR,7/16-20X8.250HXCP

7517776

$34.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAIN.

5010287

$12.99

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

Cable, Choke Control

7080290

$105.22

7

SPARK PLUG-NGK BR9ES

3070163

$3.99

8

ENG.(S.B.)EC55PM-010 ( EC55PM010 SB) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is

3085618

Unavailable

9

HANDLE-RECOIL,BLK

5431499-070

$15.48

10

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

11

WASHER(10)

7555893

$1.49

11

WASHER(10)

7555893

$1.49

12

STRAP-ENGINE MOUNT,LH,550

5245466

$52.37

13

NUT(10)

7542404

$1.59

14

WASHER-3/8-INT LK(1220-00)-Z

7556180

$1.49

15

STRAP-ENGINE MOUNT,RH,550

5245016

$32.95

16

MOUNT-ENGINE,3/8-16

3021220

Unavailable

16

MOUNT-ENGINE,3/8-16

3021220

Unavailable

17

SPACER-ENGINE MOUNT .44

5245117

$14.49

17

SPACER-ENGINE MOUNT .44

5245117

$14.49

18

Screw

7517399

$8.99

19

MOUNT-ENGINE,3/8-16,RECT

3021206

$60.70

19

MOUNT-ENGINE,3/8-16,RECT

3021206

$60.70

20

SCR-3/8-16X1-P30-SPEC-Y

7517854

$5.59

20

SCR-3/8-16X1-P30-SPEC-Y

7517854

$5.59

21

BRKT-ENGINE MOUNT,RH,FORMED

5245044

Unavailable

22

WASHER(10)

7555806

$1.49

22

WASHER(10)

7555806

$1.49

22

WASHER(10)

7555806

$1.49

23

NUT,FLEXLOCK,(10)

7547008

$6.39

23

NUT,FLEXLOCK,(10)

7547008

$6.39

23

NUT,FLEXLOCK,(10)

7547008

$6.39

24

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

25

BOLT,(10)

7517442

$6.39

26

WASHER LOCK(10)

7553101

$3.99

26

WASHER LOCK(10)

7553101

$3.99

27

WELD-ENG MOUNT BRKT,LH

1013397

$24.27

28

SPACER-ENGINE,.38

5245020

$29.99

29

CABLE-THROTTLE

7080888

$157.84

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

TUBING,CONVOLUTED

8360052-305

$28.32

32

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

33

HOSE CLAMP, RED

7080003

$1.49

33

HOSE CLAMP, RED

7080003

$1.49

34

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

34

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

34

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

34

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

34

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

34

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

34

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

35

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

35

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

35

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

35

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

36

Asm., Fuel Pump (See Fuel Pump Pg. C6, Ref. 2)

-------

Unavailable

37

CONDUIT,CONVOL(6 CM) Substituted by 4010051-15

4010051-06

Unavailable

38

VALVE-FUEL,PLASTIC,INLINE 1/4"

7052248

$24.27
