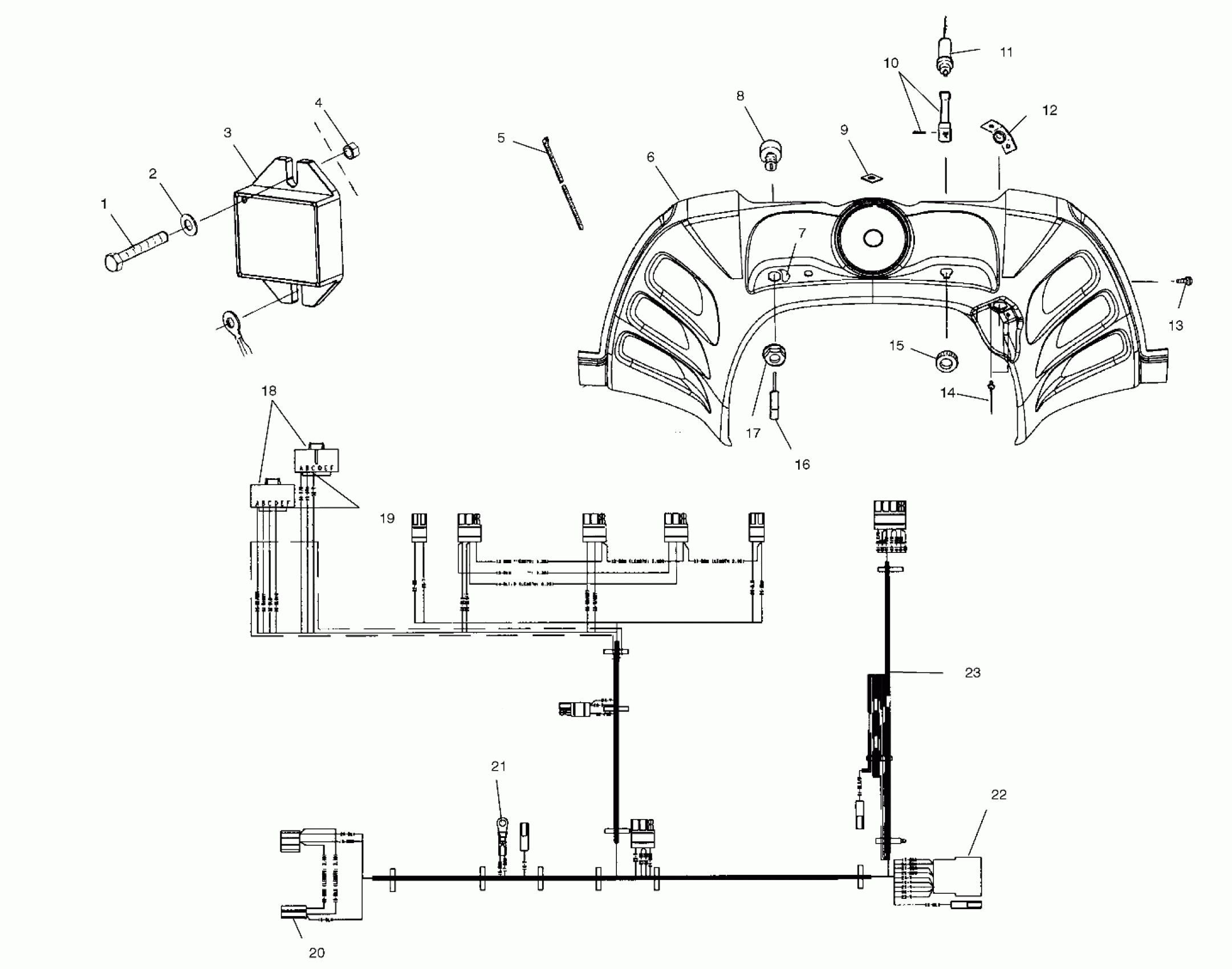

Polaris SUPERSPORT - S02NB5BS CONSOLE - S02NB5BS (4968256825A011) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

REGULATOR,AC,14.3 V

4010301

Unavailable

4

NUT(10)

7541925

$1.49

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

CONSOLE,EDGE,BASIC

5433724

Unavailable

7

DECAL-CONSOLE,IGNITION

7078955

Unavailable

8

KIT,IGN. SWITCH

2200357

Unavailable

9

CLIP,X-MAS TREE

7670101

$2.39

10

LEVER,CHOKE Substituted by 2201439 (Incl. Pin)

5432943

Unavailable

11

Cable, Choke Control (Incl. 10,15)

7080290

$105.22

12

GUIDE-RECOIL

5243049

$9.70

13

SCREW(10)

7515199

$1.49

14

RIVET, POP(50)

7621330

$1.49

15

Nut

7080229

$19.99

16

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behin

5410611

Unavailable

17

NUT,IGNITION

7547035

$8.79

18

HOUSING-CONNECTOR,PAC#12186213

4010193

$8.79

19

SOCKET-PACKARD#12047767

4010192

Unavailable

20

HOUSING

4020063

$3.19

21

Terminal, Ring

4020092

Unavailable

22

Housing w/Receptacle

4020057

$3.51

23

HARNESS,MAIN,COMMON,EDGE

2460807

Unavailable
