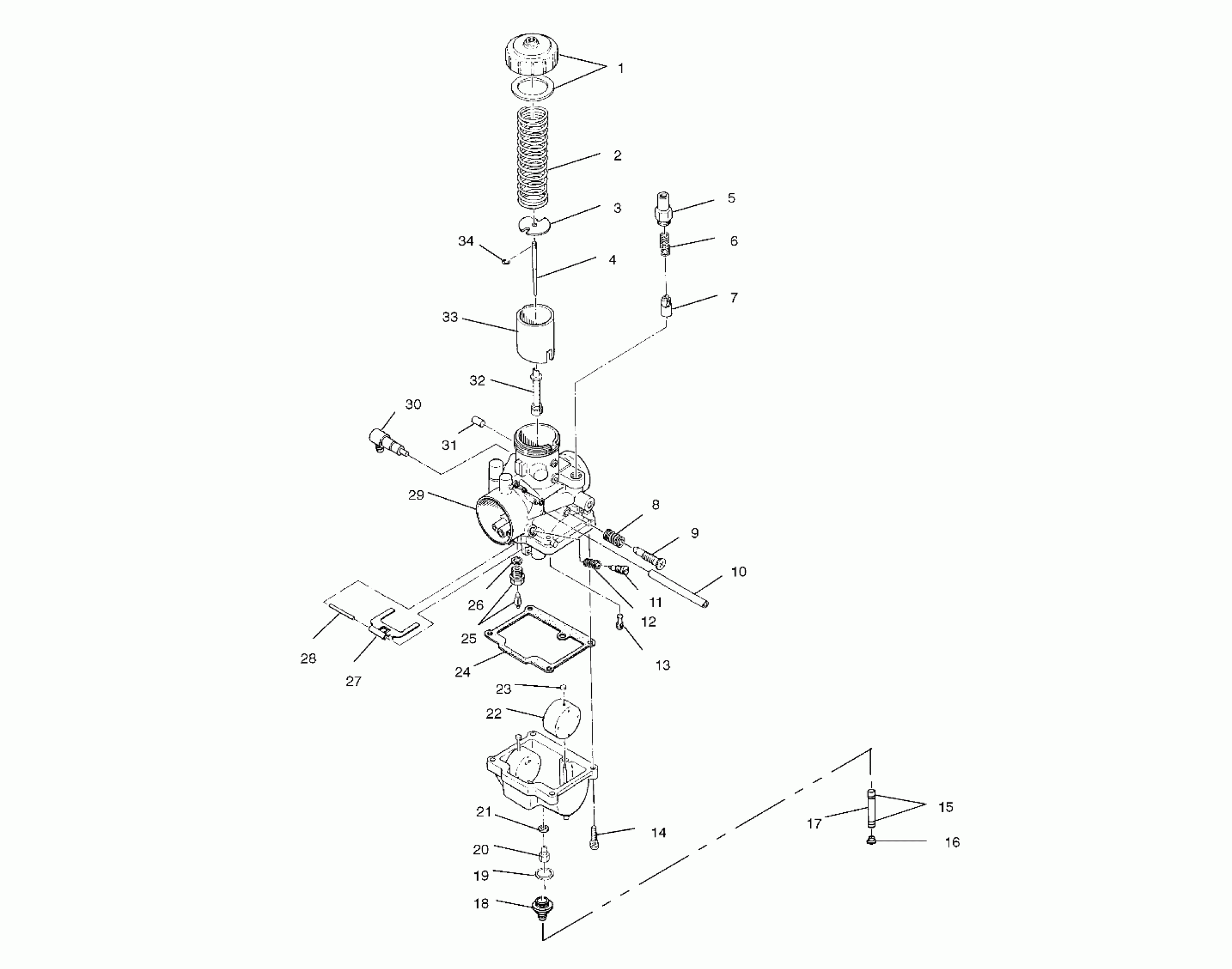

Polaris SUPERSPORT - S02NB5BS CARBURETOR - S02NB5BS (4968256825C005) Diagram

#

Description
Price

1

TOP ASM

3130184

$32.37

2

SPRING,THROTTLE

3130439

$13.59

3

PLATE

3130027

$9.70

4

NEEDLE-JET(6BGY16-3) Substituted by 3131244 (6BGY16-3)

3131246

$17.30

5

HOLDER,GUIDE

3130199

$28.32

6

SPRING,PLUNGER

3130006

$8.89

7

PLUNGER ASM, STARTER

3130328

$32.37

8

SPRING,THROTTLE ADJ.

3130010

$8.89

9

SCREW,THROTTLE STOP

3130009

$19.99

10

Hose

3131288

$10.71

11

SCREW,AIR

3130011

$19.99

12

SPRING,AIR ADJUST

3130012

$8.89

13

JET,PILOT,#35(10) (#35)

3130066

$8.89

14

SCREW & WASHER(10)

3130025

$3.19

15

HOSE CLAMP, RED

7080003

$1.49

16

PLUG,TRAP

5431893

$12.94

17

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

18

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

19

O RING

3130239

Unavailable

20

JET,MAIN HX.HD#290(10) (#290)

3130132

$7.27

21

WASHER (10)

3130014

$1.59

22

FLOAT ASM.

3130430

$43.56

23

CAP,(10)

3130237

$4.03

24

PACKING,FLOAT CHAMBER

3130020

$16.17

25

VALVE-NEEDLE (1.5)

3131146

$48.56

26

PACKING(10)

3130017

$4.03

27

ARM,FLOAT

3130018

$24.27

28

PIN, FLOAT

3130361

$8.89

29

ASM-CARBURETOR (Incl. 1-14,18-34)

3131348

Unavailable

30

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

31

CAP

3130479

$14.56

32

JET,NEEDLE,Q-2 (Q-2) 480

3130894

Unavailable

33

VALVE,THROTTLE,(3.0) (3.0)

3130372

$52.60

34

E-RING,(10)

3130508

$6.46
