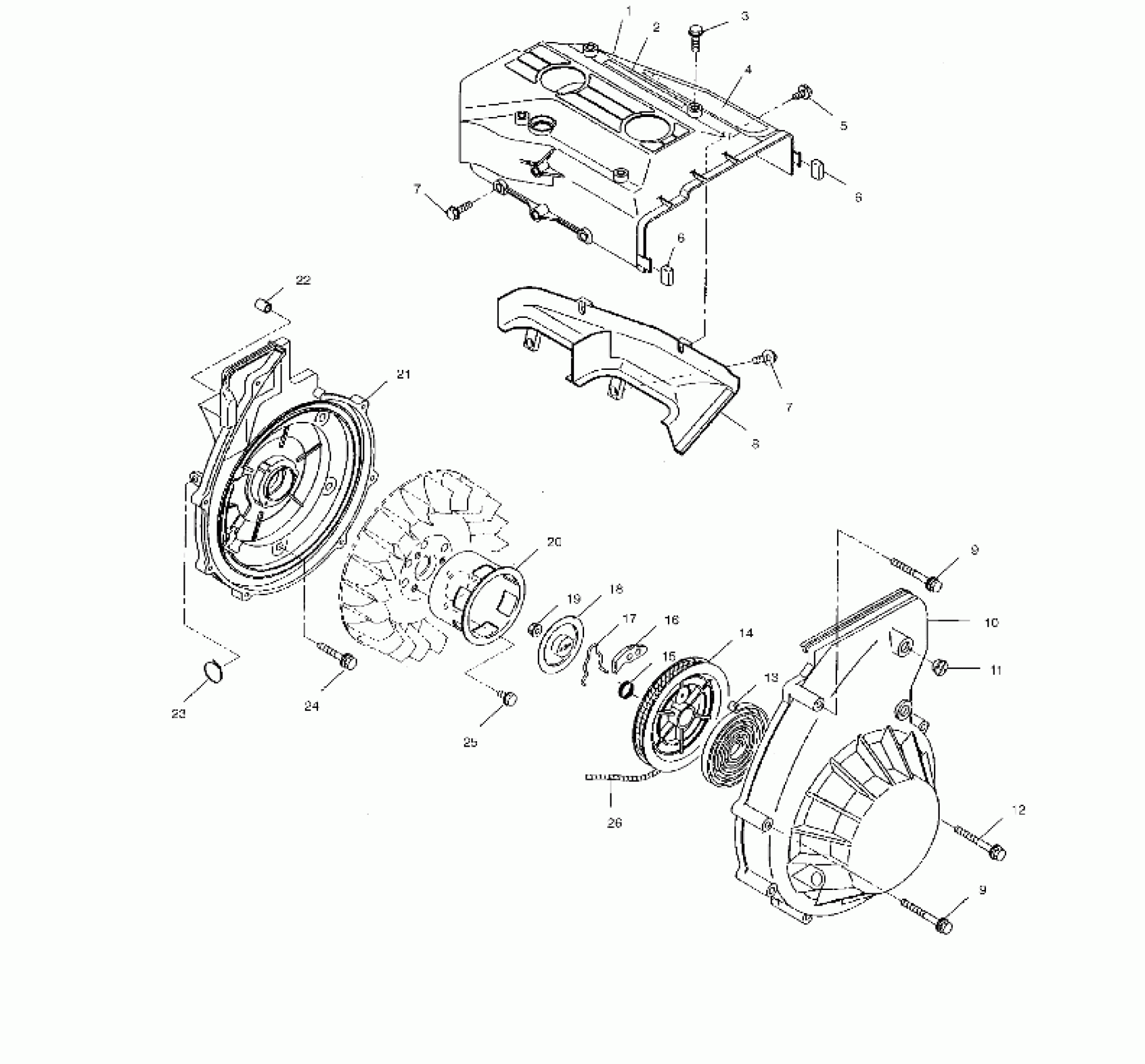

Polaris SUPERSPORT - S02NB5BS BLOWER HOUSING & RECOIL STARTER - S02NB5BS (4968256825C004) Diagram

#

Description
Price

1

BAFFLE-1 CYLINDER

3086991

$119.99

2

DECAL-"POLARIS",ENG.SHROUD

7079511

Unavailable

3

BOLT, FLANGE(10)

3084566

$3.19

4

DECAL-"550",ENGINE SHROUD

7079510

Unavailable

5

BOLT,FLANGE(10)

3085693

$2.39

6

CAP,CYL.BAFFLE

3085690

$9.70

6

CAP,CYL.BAFFLE

3085690

$9.70

7

BOLT,FLANGE

3085694

$2.63

7

BOLT,FLANGE

3085694

$2.63

8

BAFFLE #2,CYL.

3085691

Unavailable

9

BOLT&WASHER ASM.

3083550

Unavailable

10

STARTER-RECOIL (Incl. 13-19,26)

3087134

Unavailable

10

CASE-STARTER

3087135

$242.84

11

PLUG,RUBBER

3086792

$24.27

12

BOLT(10)

3082030

$3.97

13

Spring, Spiral

3083376

$179.11

14

REEL, REWIND

3083377

$56.65

15

Spring, Return

3083463

$4.03

16

Ratchet

3083378

$20.22

17

Spring, Friction

3083379

$24.27

18

Plate, Friction

3083464

$28.32

19

NUT, FLANGE ,(10)

3083381

$2.99

20

PULLEY,STARTING

3085685

Unavailable

21

HOUSING-BLOWER

3087020

$178.08

22

PIN,STRAIGHT

3084857

Unavailable

23

Band, Wire

3084823

$12.79

24

BOLT&WASHER ASM.

3084225

$3.99

25

BOLT&WASHER ASM.(10)

3085688

$2.99

26

ROPE,STARTER [No Longer Available]

3085723

Unavailable
