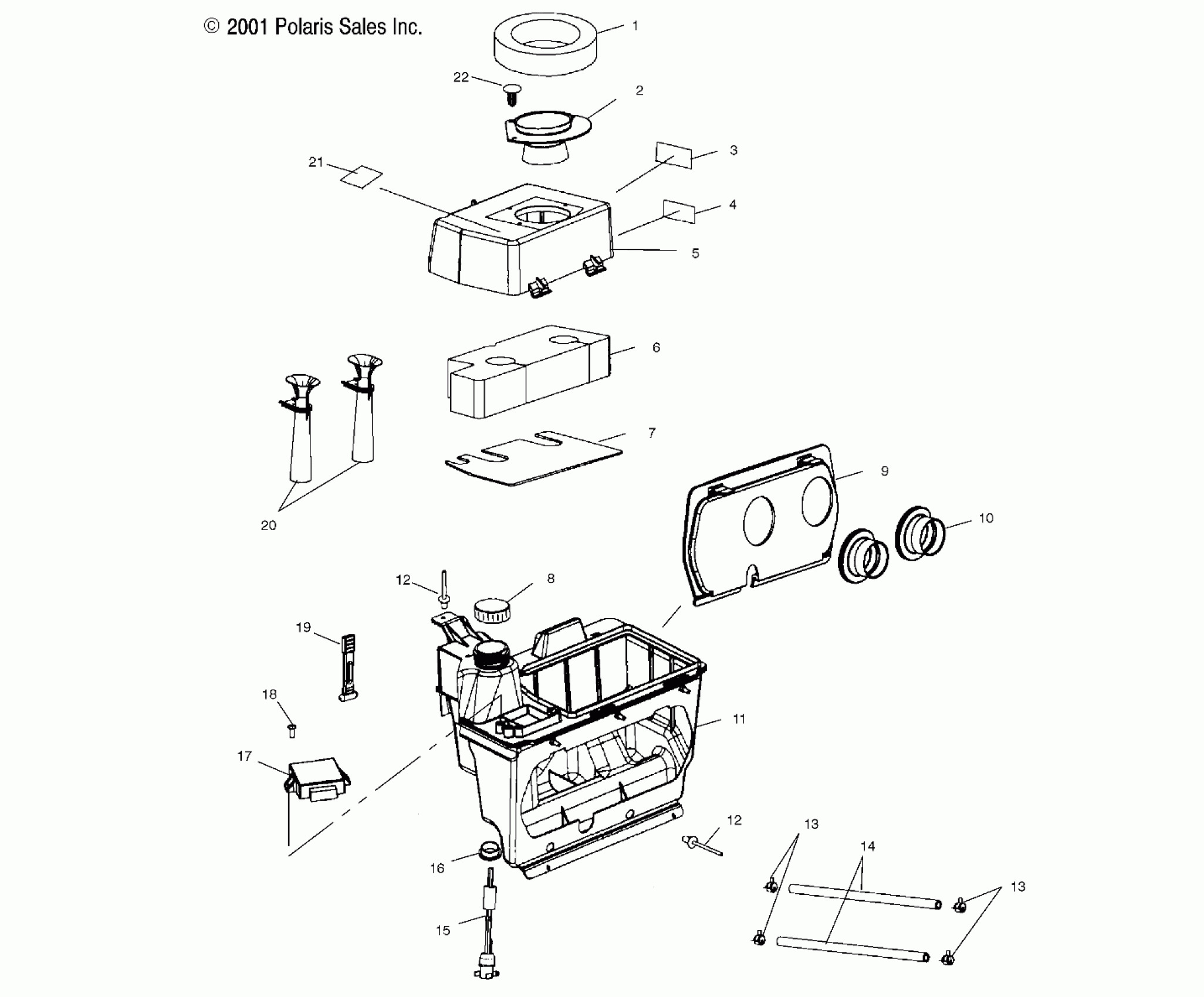

Polaris SUPERSPORT - S02NB5BS AIR BOX - S02NB5BS (4968256825B013) Diagram

#

Description
Price

1

FOAM,AIRBOX,CHIMNEY,EDGE

5811882

$20.22

2

DUCT,AIR,INLET

5433664

$12.39

3

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

4

DECAL, GREASING [No Longer Available]

7073426

$7.27

5

COVER,ASM,AIR SILENCER (Incl. 2-4,21,22)

1253356

$49.59

6

FOAM,AIRBOX,PLATE

5811979

Unavailable

7

PLATE,INTAKE,EDGE

5433665

Unavailable

8

CAP-OIL,VENTED/CUSTOM COLOR

1240094

$36.41

9

PLATE-CARB ADAPTER,550 FAN

5433904

$25.59

10

BOOT,CARB,550 FAN EDGE

5411896

Unavailable

11

AIR SILENCER,ASM (Incl. 15,16)

1253336

Unavailable

12

RIVET(50)

7621472

$1.49

12

RIVET(50)

7621472

$1.49

13

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

13

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

14

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

15

FITTING-OIL SENDER

4010224

Unavailable

16

GROMMET-OIL SENDER

7052305

$4.84

17

CDI System (See Magneto Pg, C8, Ref. 7)

-------

Unavailable

18

SCREW(10)

7512095

$4.79

19

STRAP-AIRBOX TOP

5433150

$24.27

20

TUBE,INTAKE,OUTER

5433662

Unavailable

21

DECAL,CAUTION,AIRBOX

7075351

Unavailable

22

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49
