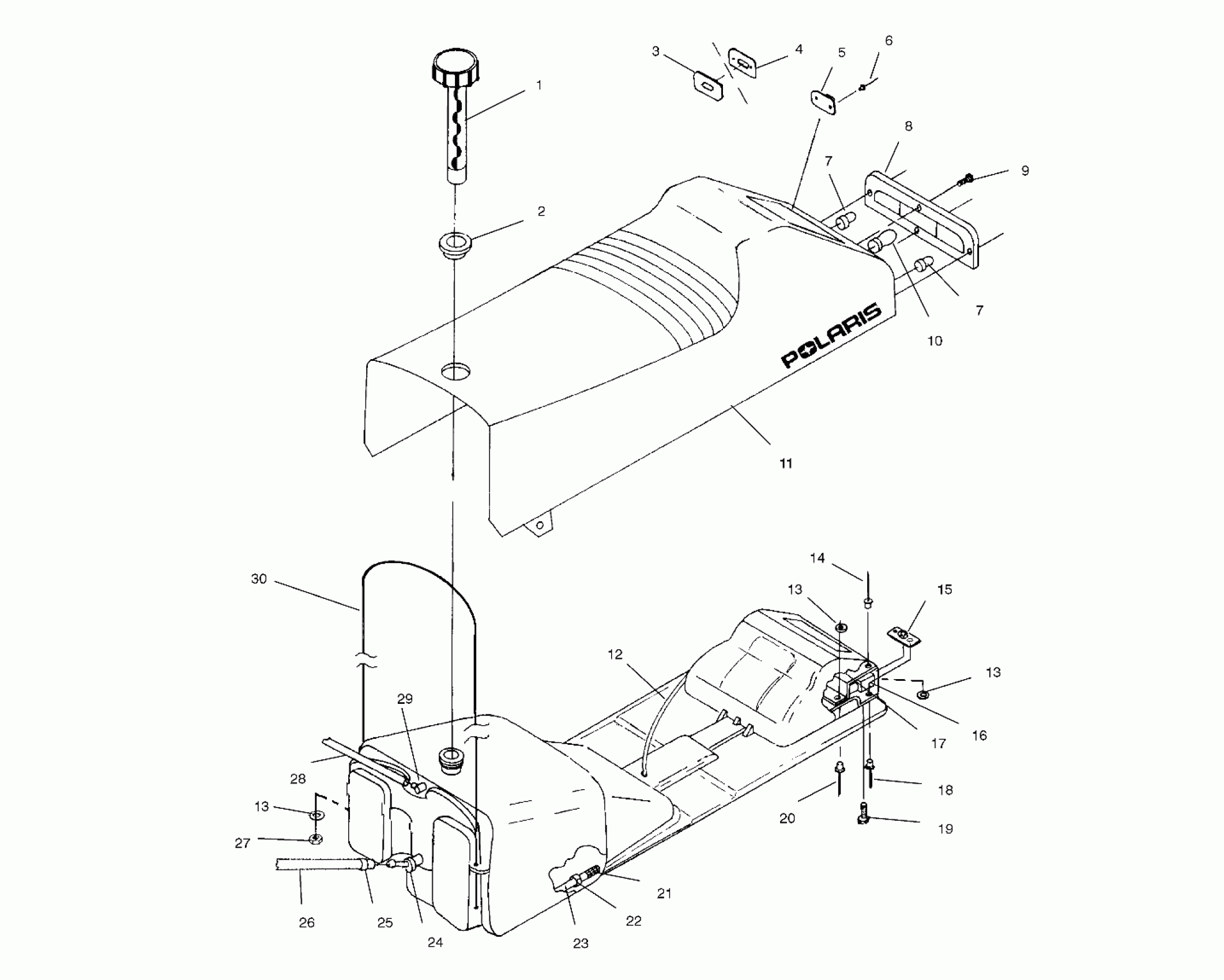

Polaris SUPERSPORT - S00SB5BSA SEAT and GAS TANK - S00SB5BSA (4953975397a006) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410842

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

LENS,TAILLIGHT

5430423

Unavailable

9

SCREW(10)

7511840

Unavailable

10

Bulb, Brakelight

4030045

Unavailable

11

COVER ASM,SEAT,LONG (S00SB5BSA)

2682412

Unavailable

11

COVER ASM,SEAT (S00SB5BS)

2682407

Unavailable

11

SEAT ASM. (See Footnote) (S00SB5BS)(Incl. 3-15,20-24,29,30)

2682406

Unavailable

11

SEAT CUSHION,ASM. (See Footnote) (S00SB5BSA)(Incl. 3-15,20-24,29,30)

2682506

Unavailable

12

HARNESS,TAILLIGHT

2460398

Unavailable

13

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

13

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

13

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

14

RIVET, BLIND(50)

7621467

$1.49

15

NUT,RETAINER-WELD.(10)

7542147

$17.59

16

HOUSING-TAILLIGHT

5433341

Unavailable

17

COVER,T/L PROTECTOR

5431436

$21.43

18

RIVET(50)

7621301

$3.99

19

SCREW(10)

7512242

$2.39

20

RIVET(50)

7621464

$3.99

21

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

22

RING, COMPRESSION(10)

7080402

$1.60

23

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

24

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

27

NUT(10)

7541925

$1.49

28

FUELLINE,3MMX7MM

8450061-600

Unavailable

29

FITTING,90 DEG,1/8,(10)

7052095

$4.79

30

CABLE,TANK,RETENTION

7080559

Unavailable
